Need help finding this crank operator with handle

Quick Learner from Seattle, Washington
Apr 25, 2024 4:17 am
I have another client and one of the repairs consist of casement crank operator and handle replacement. I do not know the brand of window but I have some photos. Please help, thank you!

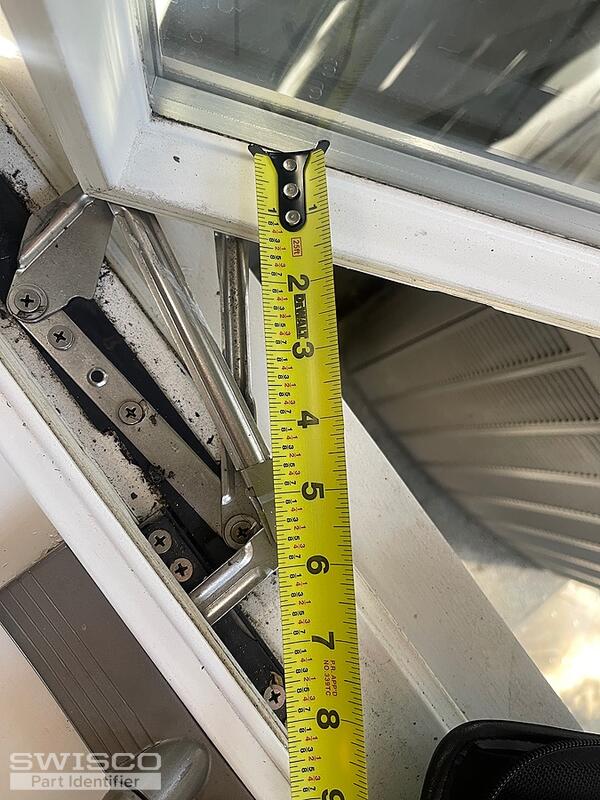

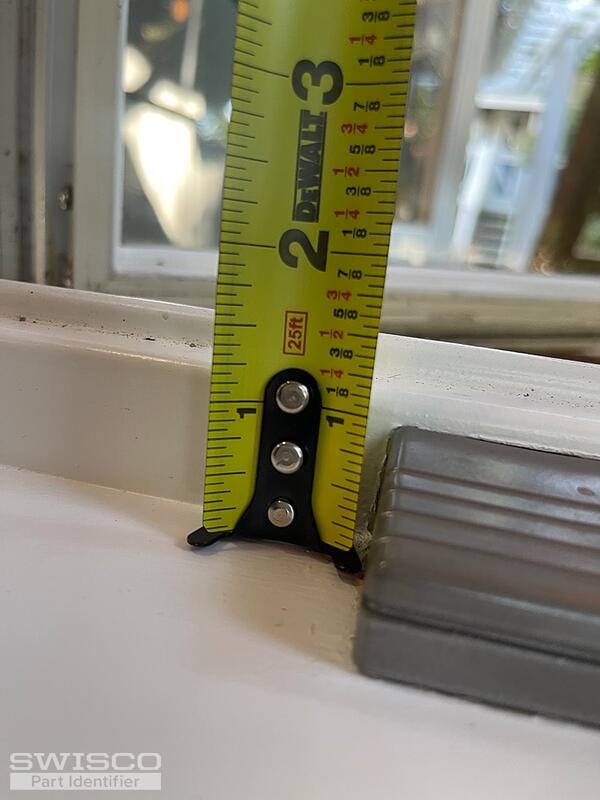

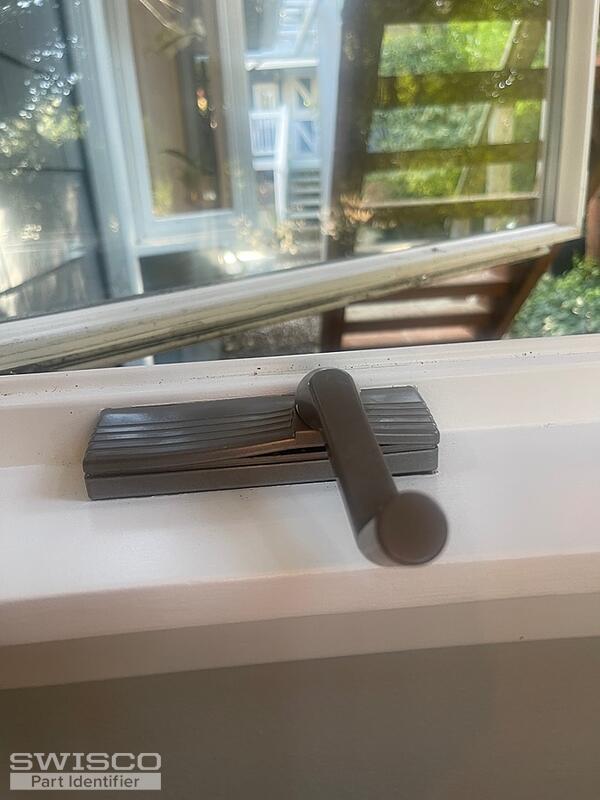

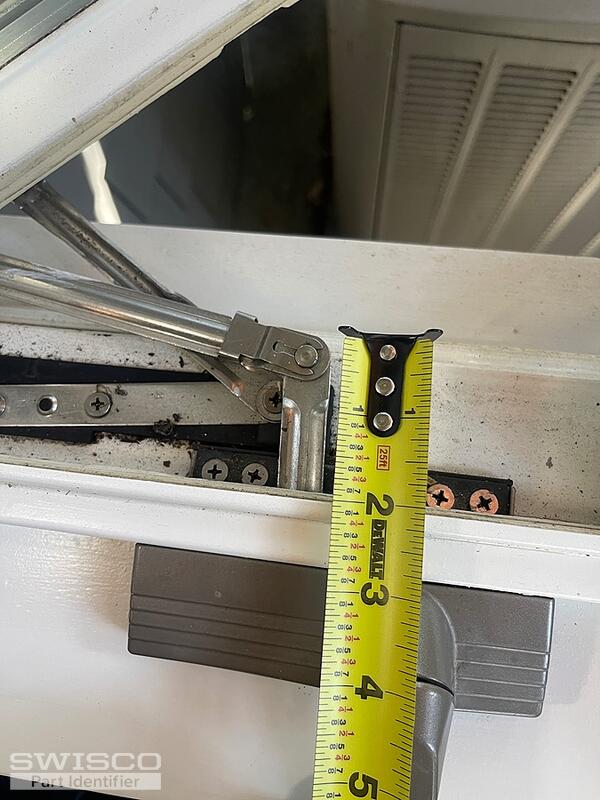

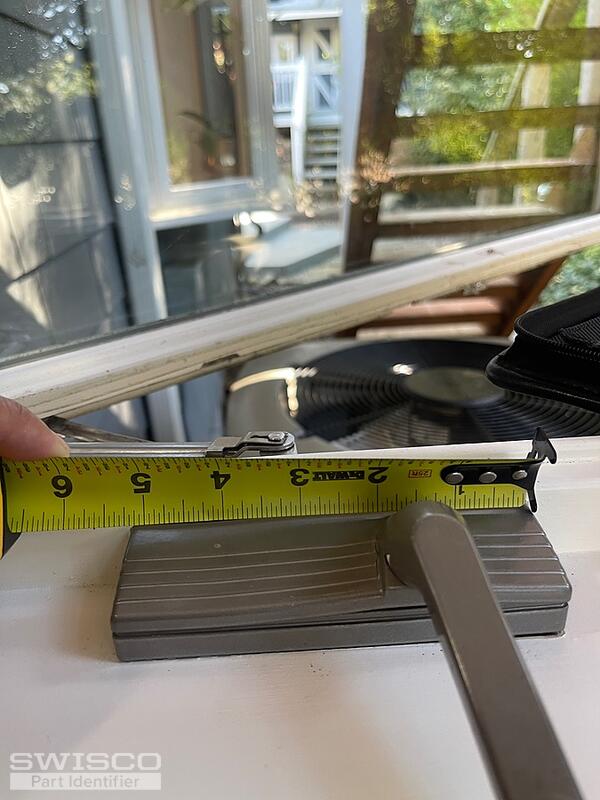

IMG_2101 IMG_2102 IMG_2103 IMG_2104 IMG_2105
5 user uploaded images
2 Replies
Quick Learner from Seattle, Washington
Apr 25, 2024 4:18 am
More photos added

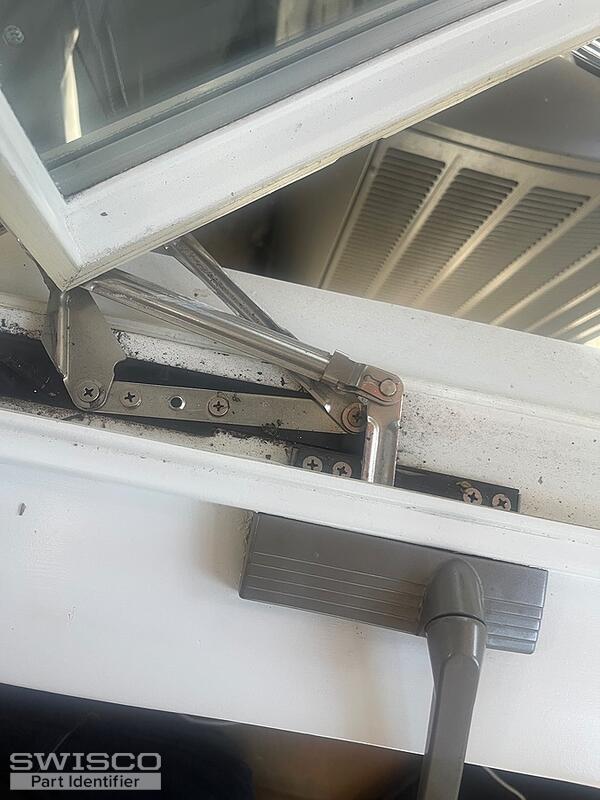

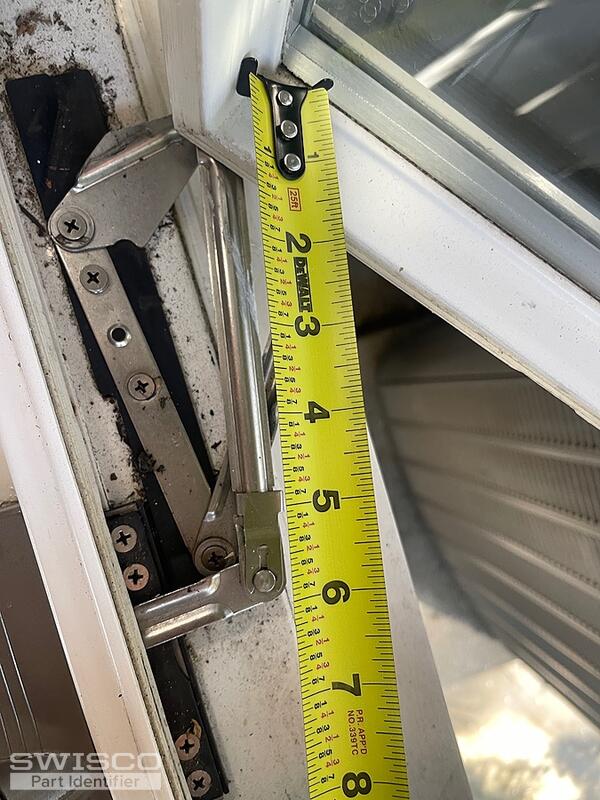

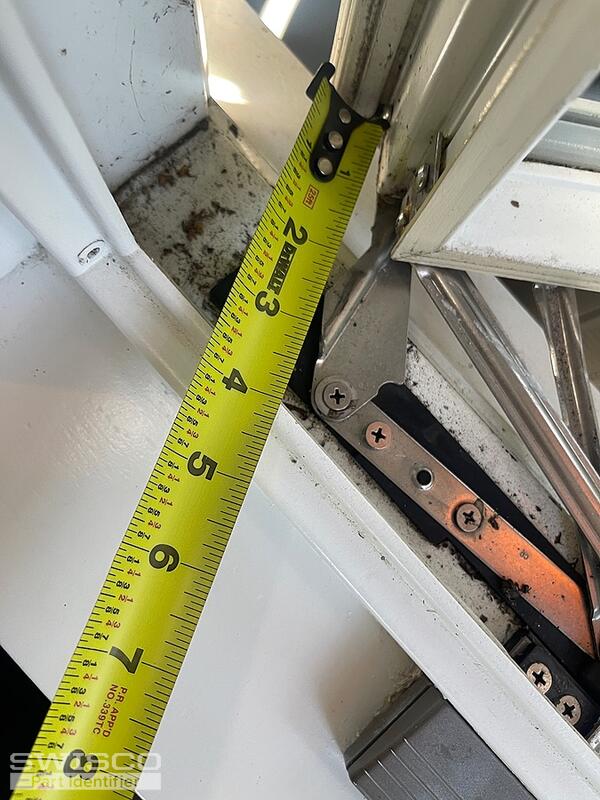

IMG_2107 IMG_2106 IMG_2108
3 user uploaded images
Jasmine
Jasmine from SWISCO
Apr 26, 2024 12:42 pm
SWISCO
EXPERT

Thanks for posting! This operator appears to be an older version of the 39-092 ROT Casement Operator; the opposite handed version is the39-091. Carefully look over the dimensions and compare them to the existing hardware to confirm if these are the right fit.

The handles compatible with these operators are the 39-224 fold-down and 39-230 non-folding crank handles (these have a 5/16" Hex). You may also need the 39-557 Roto Spacer, only if the operator has one installed.

Keep in mind, you'll need to reuse the arm linking the operator to the bottom of the swinging sash. Unfortunately, we do not carry a replacement for this piece of the hardware.

Full view with measurements
Full view with measurements
