Need help idenitifying

A handy person from Florida says:

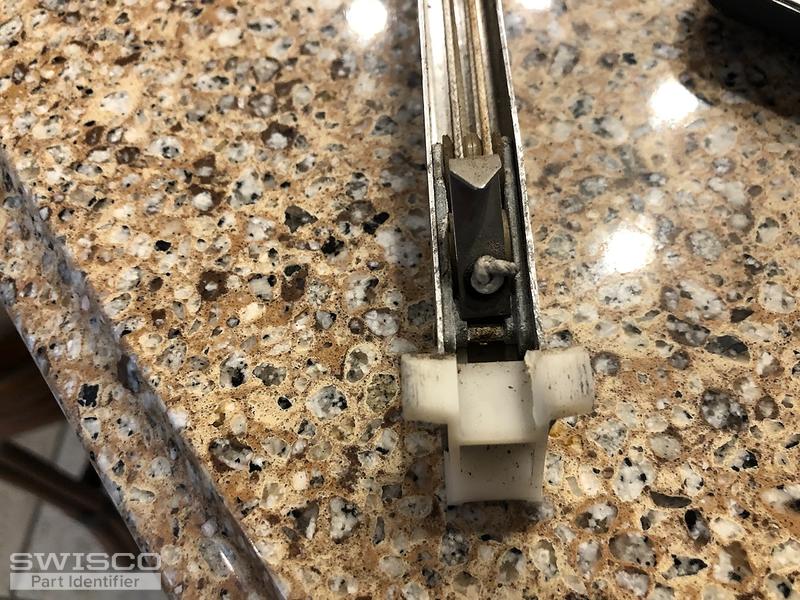

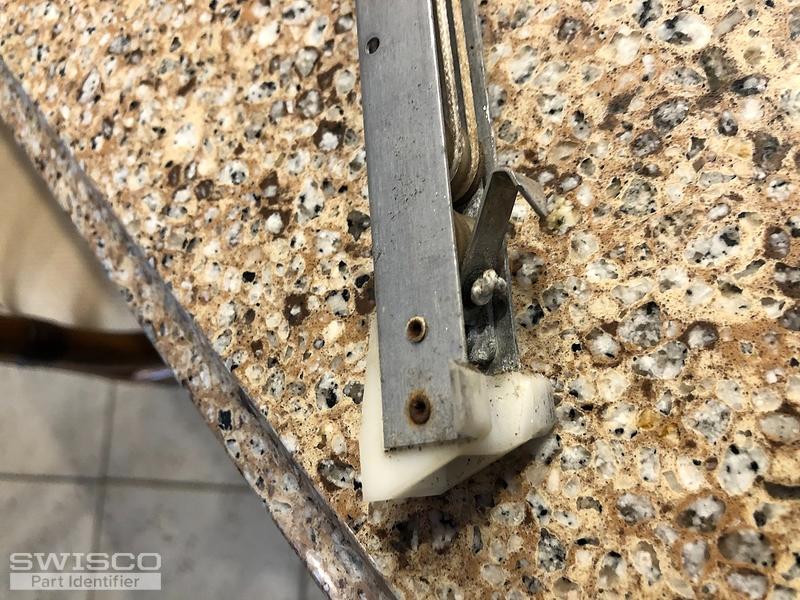

Alcan non tilt window. Channel balance stamped with 2910 W Need help with the ends!
Thumbnail of the uploaded file named 91A0FABB-E12B-40F1-8F02-7CA7DFA512DA.jpeg
Thumbnail of the uploaded file named 1777BDE0-EDCE-472D-93AB-589A30F2DD94.jpeg
Thumbnail of the uploaded file named 12E8EE2A-9ECB-438E-82C9-7543CBB6ABA4.jpeg
Thumbnail of the uploaded file named 6366708C-8CE8-4524-9EA3-5D054DD82335.jpeg
Thumbnail of the uploaded file named 1A2077FE-FBB9-4D59-AD38-28D786EFB920.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. It looks like the top fitting is our 19-005. The bottom might be our 15-005 shoe, which is 1" deep. If so, then you'd need an S380-30 Channel Balance. However, something tells me this shoe might actually have a depth of 7/8". The depth is the 'heel-to-toe' measurement on the shoe. Please measure this out. If it's 7/8" instead, you actually will need balances that use our 15-029 shoe. None of our stock items feature this, but we'd be happy to provide them for you via custom order. I would just need to know how many balances you require. Let me know and we'll go from there. Many thanks.
