Hi,

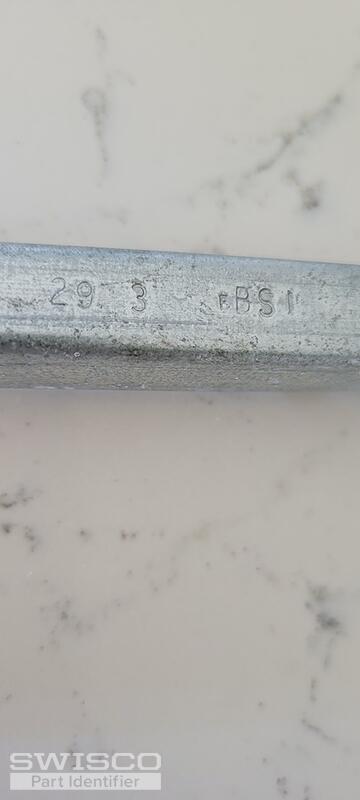

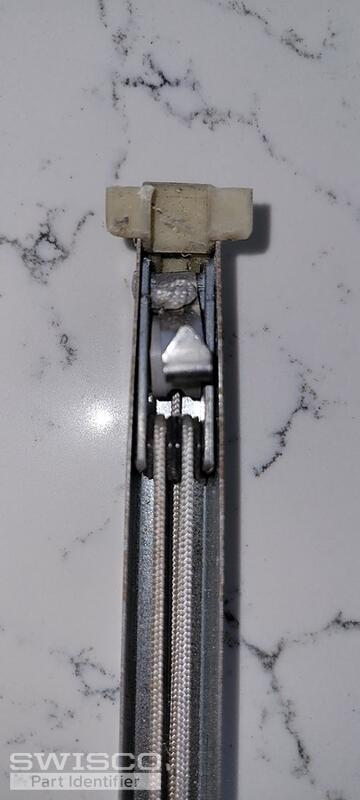

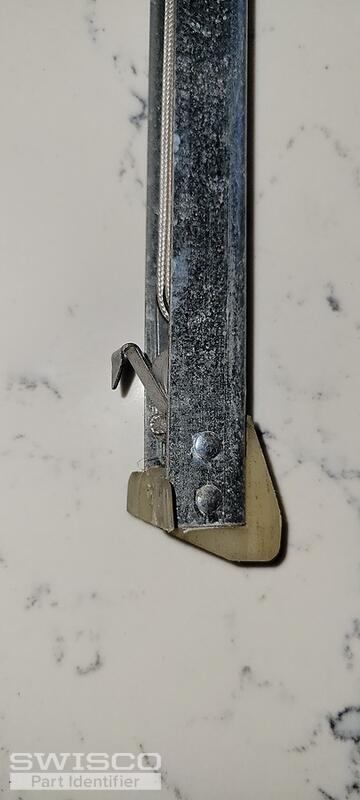

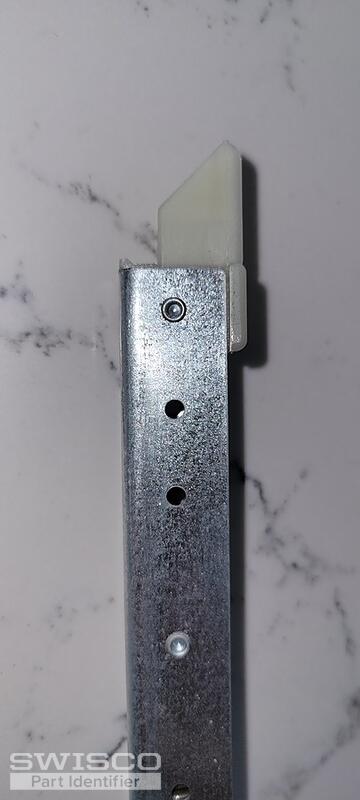

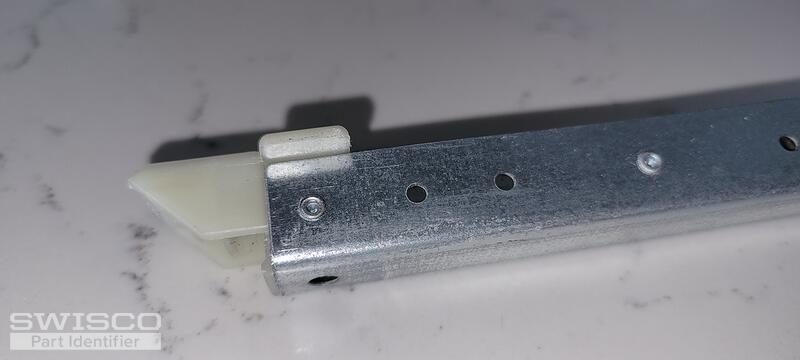

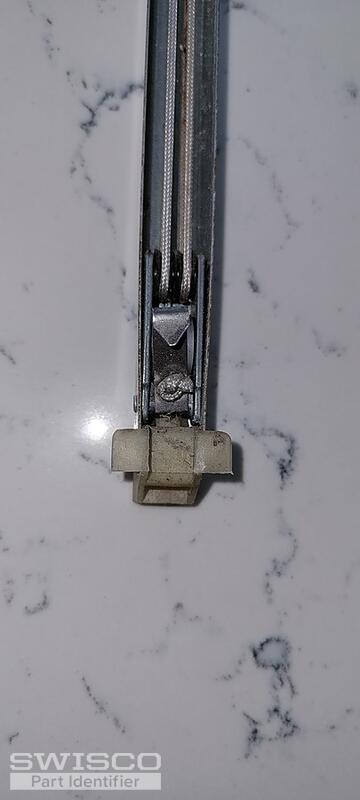

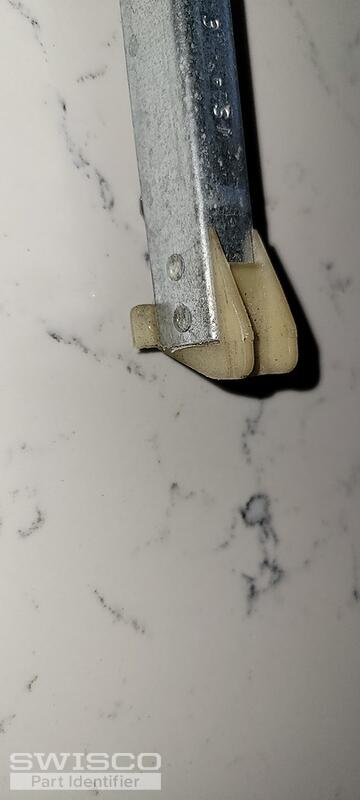

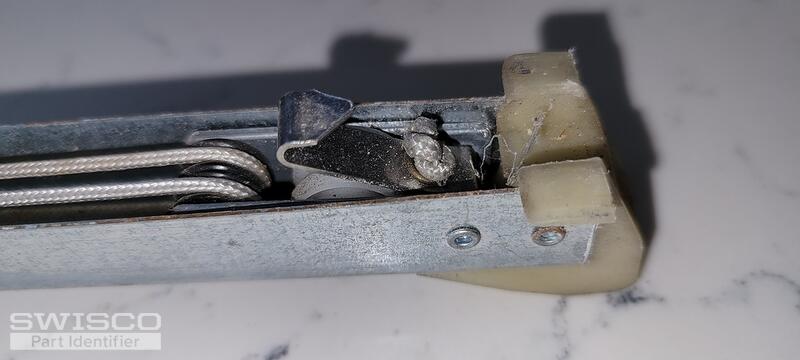

I believe I have S380 hardware on my windows. They are 30" long with "29 3" and "BS1" stamped on the 1" frame. I don't know what the weight option is. Hopefully you can determine that from the attached pictures. I would need sets for 3 double windows and 5 singles. Five of 8 pix are attached. I will send another text with the final three pix.
Regards,
Lou
Hi,
These are additional pictures for reference number D275323
Regards,
Lou
Hi, Lou.
Thank you for reaching out to us. The configuration shown here matches either the S380-30 or S385-30 channel balance. The best match will depend on the depth of the bottom fitting so you'll need to measure as shown in the image below. Based on your 29 3 stamp, you would also need the 2930 spring strength option.
