Hey there, I had no problem identifying my pivot bar as the 26-226 as they had snapped and were removable.

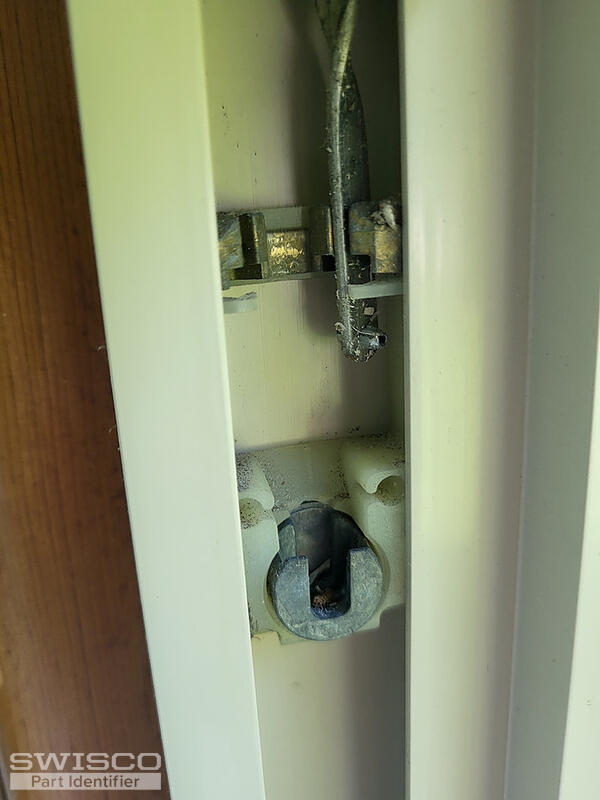

This is my pivot shoe. The channel depth seems to be around 5/8, width around 1 1/2 and height about 2 inches.
Need help identifying pivot shoe
Quick Learner from Wisconsin
Aug 24, 2024 2:59 pm
1 user uploaded image
8 Replies
Tom from SWISCO
Aug 27, 2024 12:41 pm
It's tough to make out what kind of shoe you have based on this photo. Your measurements also don't seem to match any of our products; 1-1/2", for instance, is very, very large when it comes to pivot shoes.
I would recommend removing it before you measure, that way you can be 100% sure what your dimensions are. In the meantime, my first thought was our 15-188. This may be worth considering but it is going to come down to the width and thickness.
Quick Learner from Wisconsin
Aug 27, 2024 3:02 pm
Thanks Tom. I'll try to get one out in the next couple of days. I watched a video about cutting the top end of the far side of the channel to remove and replace them. Doesn't seem like it should be much of an issue to get it out.
Tom from SWISCO
Aug 27, 2024 4:00 pm
Sounds good to me! Let me know if you had any questions in the meantime, we're always here to help.
Quick Learner from Wisconsin
Sep 3, 2024 2:54 pm

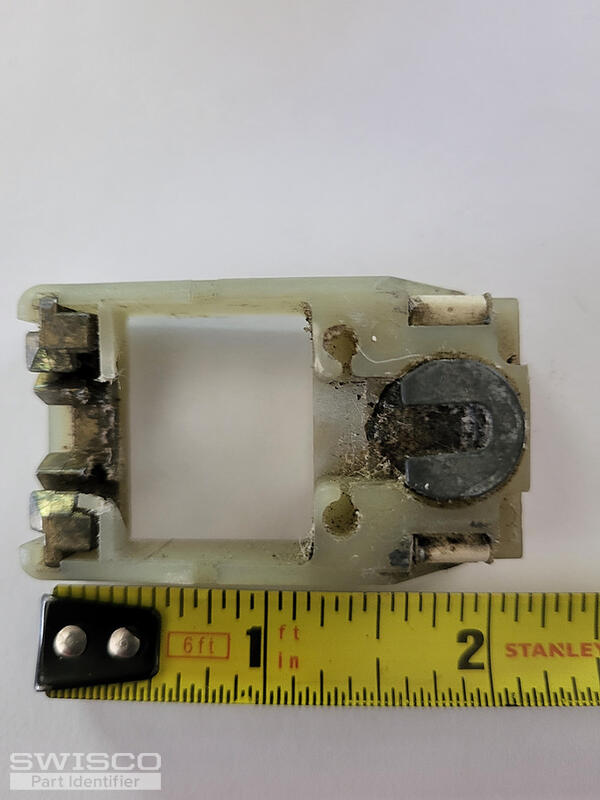

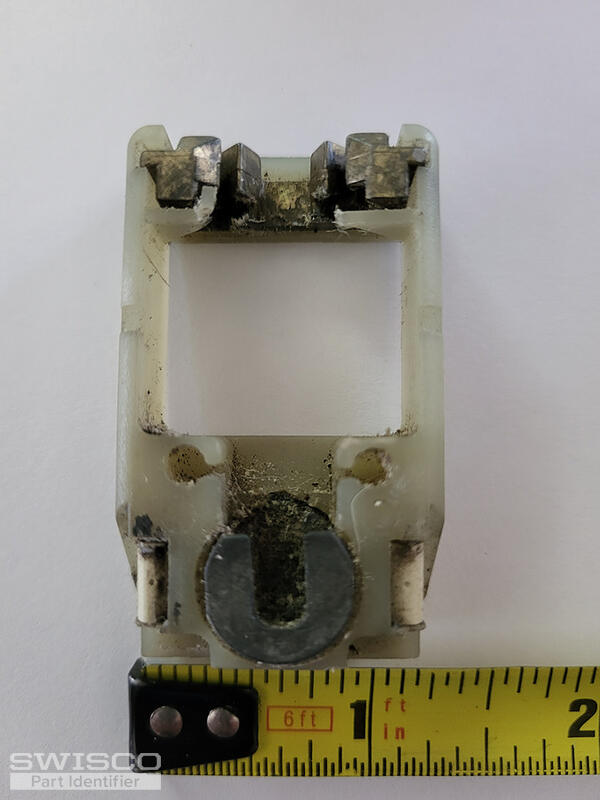

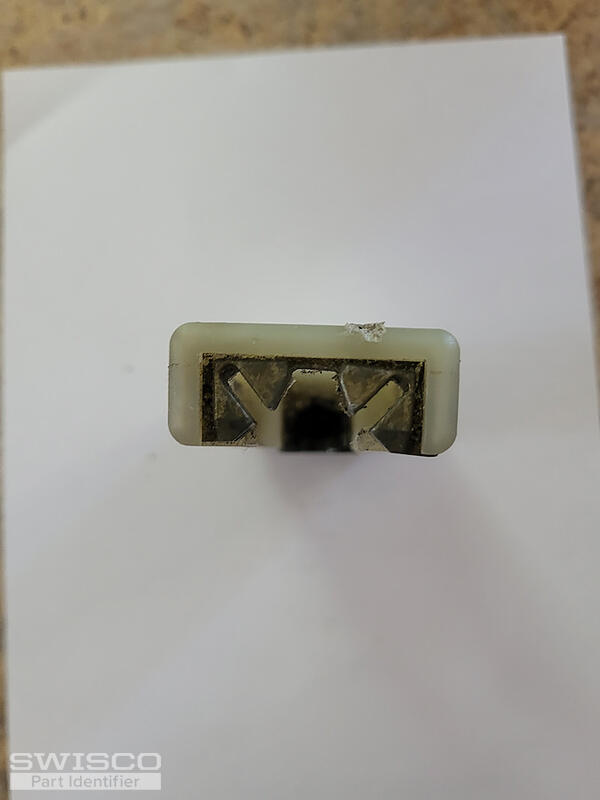

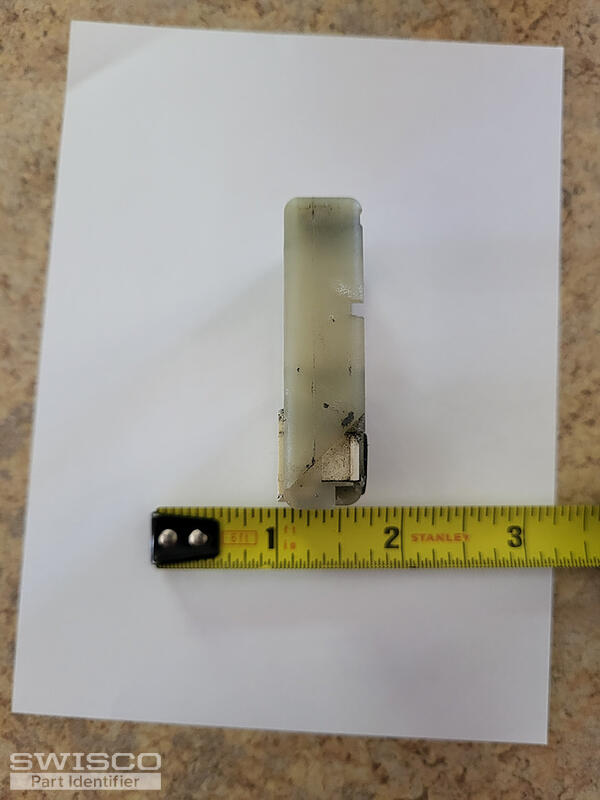

Apologies for it taking so long, been super busy. Got a shoe out and took pics with a tape for measurements
4 user uploaded images
Tom from SWISCO
Sep 4, 2024 8:55 am
That's quite alright! Looking at these photos, I do believe that our 15-188 is going to be our best option.
Alternate image for 15-188
Quick Learner from Wisconsin
Sep 4, 2024 10:35 am
Thanks for the help Tom, much appreciated.
Tom from SWISCO
Sep 4, 2024 11:51 am
Anytime! Best of luck with this project, and please feel free to reach out if you had any other questions.
