Need help identifying this door weatherstripping

Question

This weather-strip may be 10-25 years old. It is made of foam covered with a plastic-like cloth.

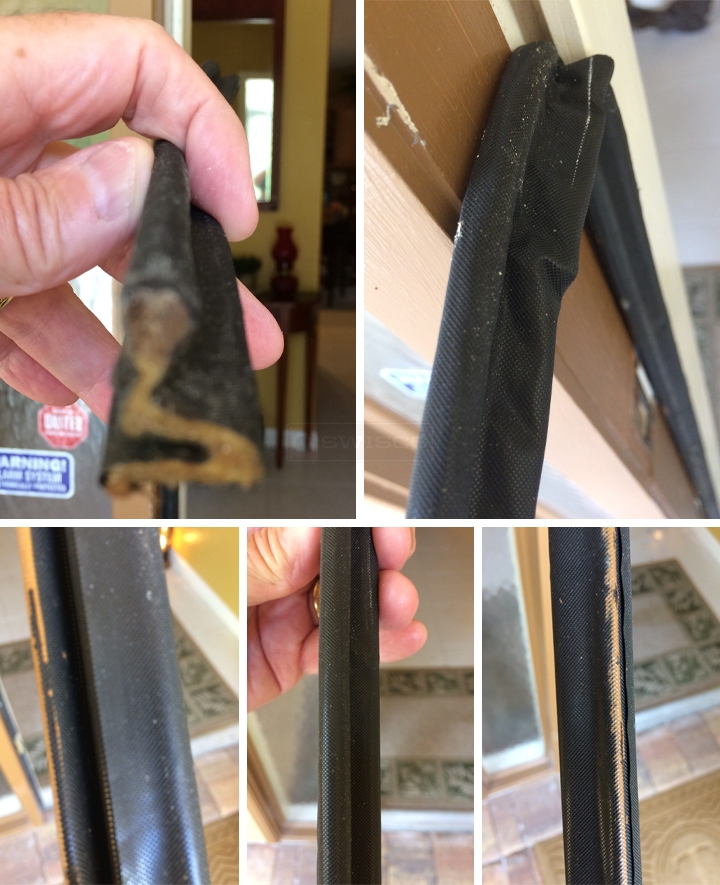

Using the cross-section photo, the top is 1/4" wide and fits into a 1/4" wide groove in the molding that is 1/2" deep. The top to bottom measurement of the cross-section as pictured is 3/4". It is 1/2" wide at the bottom and when compressed makes a 3/8" seal against the door.

I hope you can find a product that will fit work for this application.

Thanks,
Bill T.

Dave Sr. · Accepted Answer

I'm afraid that we do not carry a weather stripping with a rounded kerf like yours. Take a look at the 58-169 foam seal instead. This is secured in the frame with small nails. Could you get that to work? We also have the 58-201, which has a large kerf, but I'm not sure if it is the same size as yours.
