Need help identifying this part

Start a new Discussion

Quick Learner from orlando

Apr 24, 2021 10:29 am

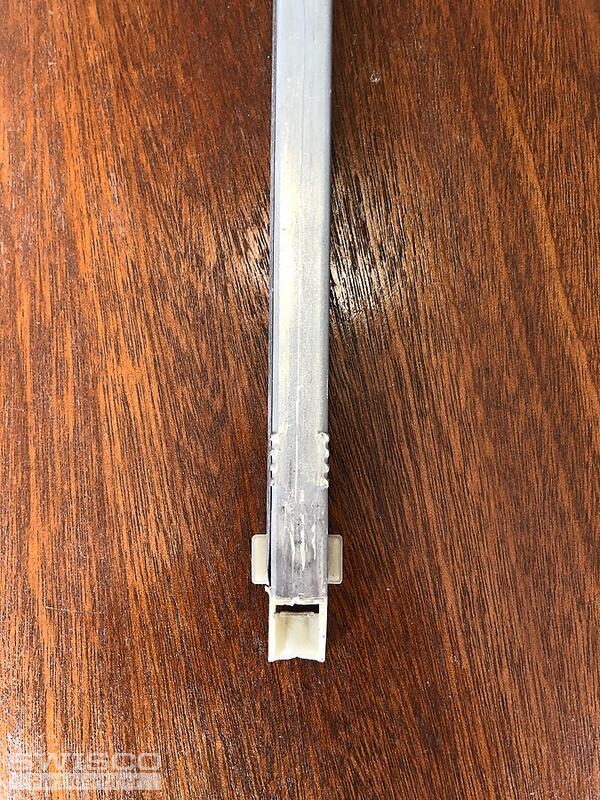

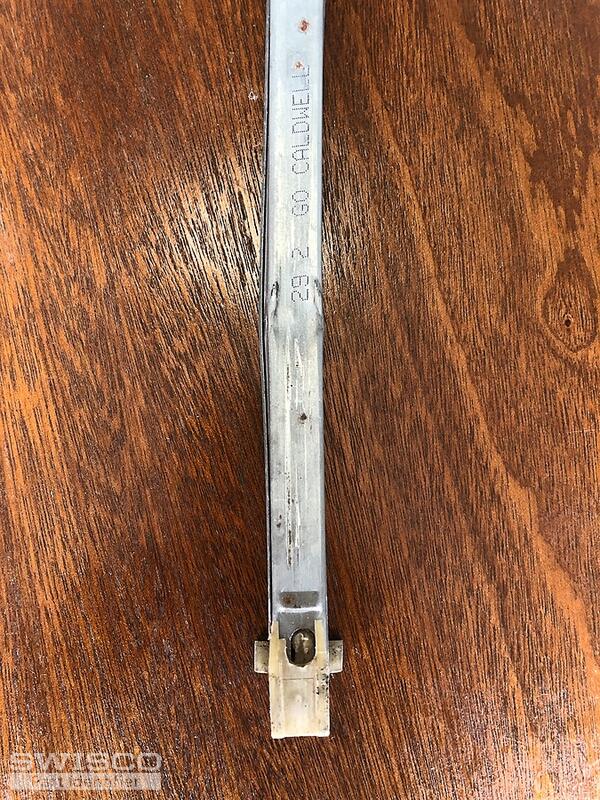

Need help identifying this part.

5 user uploaded images

5 Replies

Quick Learner from orlando

Apr 26, 2021 2:52 pm

this part is the block an tackle caldwell window guide.

Emily from SWISCO

Apr 27, 2021 11:26 am

Hi there! You could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2920.

If you have any other questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from orlando

Dec 5, 2021 8:31 pm

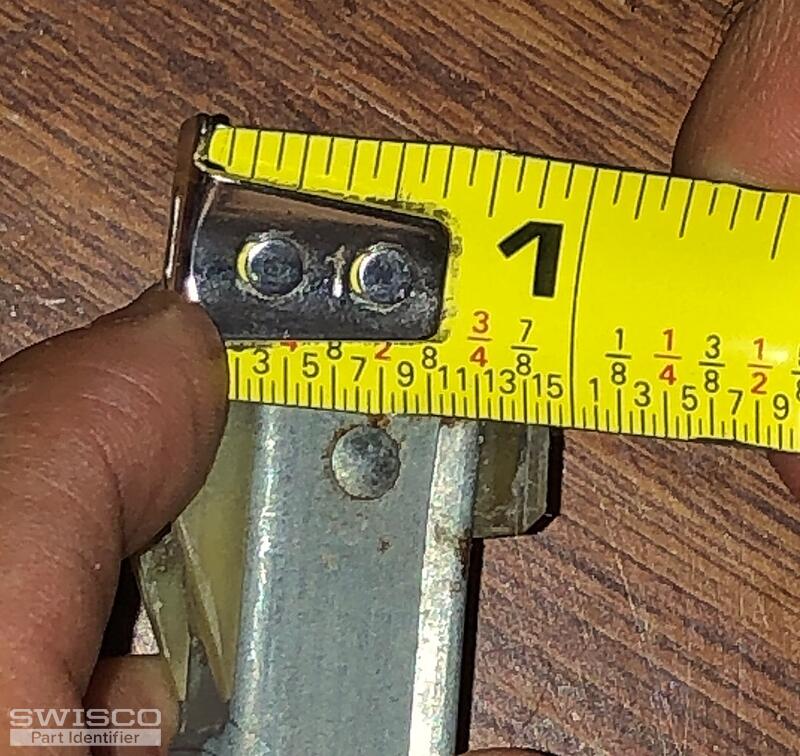

Hi Emily , I measured the shoe (bottom attachment) as directed on your post and it actually measures less than 1 inch. Please see attached photo. Please advise if the 380 is still the correct option.

1 user uploaded image

Emily from SWISCO

Dec 6, 2021 9:51 am

It's possible that either your shoe was once 1" and wore down over time, or that your shoe is instead the 15-029, which is only 7/8" deep. However, it's hard to get accurate measurements from pictures. Can you write out the measurement that you're getting for your bottom shoe?

If you do have the 15-029, then we will need to custom make your balance, since it doesn't come standard on any of our Series. I just want to confirm that measurement first.
