Home Owner from Michigan

Mar 10, 2024 6:03 pm

We have a Pella Proline sliding glass door from May 2005 that needs new seals. Attached are pictures. The seal that attaches to the door itself is Kerf style I believe and flat on the door but has a piece that sticks out an eighth or quarter inch off the door.

3 user uploaded images

6 Replies

Emily from SWISCO

Mar 12, 2024 8:49 am

Hello there!

Thank you for reaching out to us. I'm afraid we can't identify your seal from these photos. Can you remove an undamaged sample and show us a clear photo of the end profile? The video below will explain the angles we're looking for.

Home Owner from Michigan

Mar 12, 2024 5:23 pm

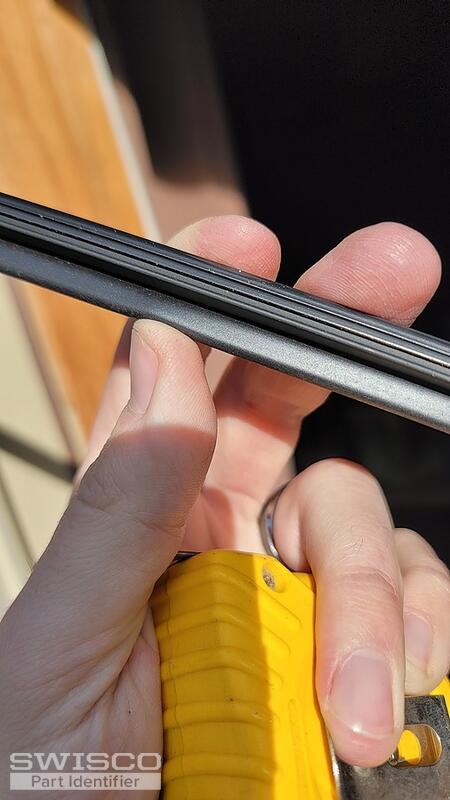

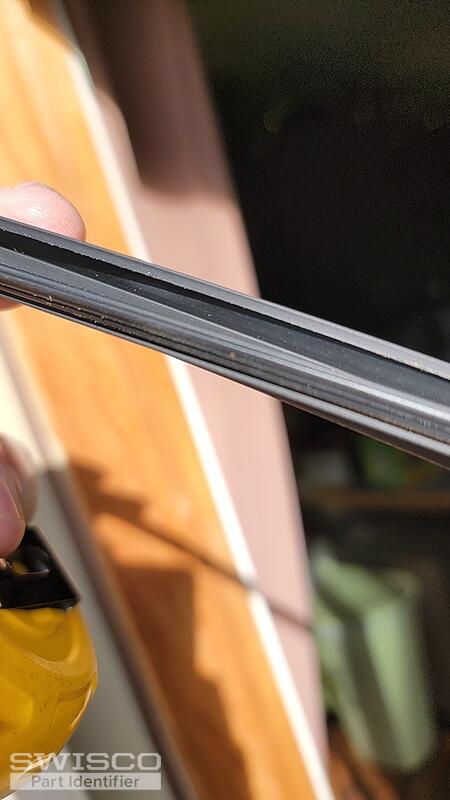

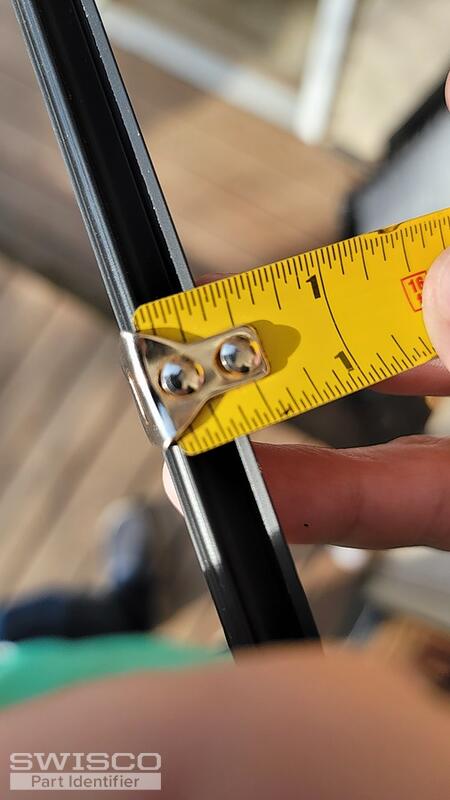

Thanks for the response. Attached are some more pictures. It is like a U shape with 3 flat sides, one of the sides being kerf. It's a plastic like material with the flange being rubber.

5 user uploaded images

Emily from SWISCO

Mar 13, 2024 8:31 am

It looks like two of your photos failed to upload, though I'm afraid the photos I can see don't show the end profile. From your description, we may not have a match but seeing the end profile will allow us to confirm.

Home Owner from Michigan

Mar 13, 2024 12:16 pm

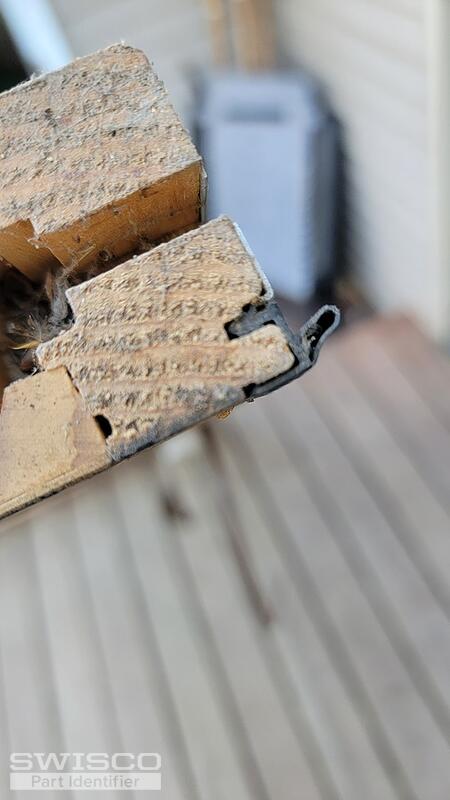

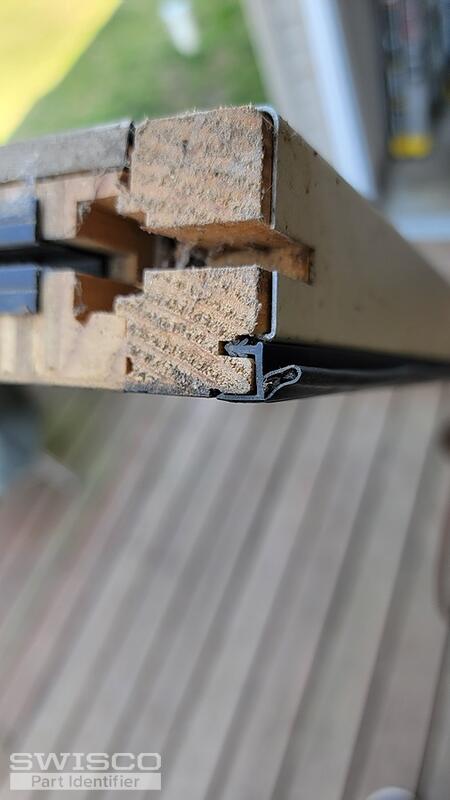

Sorry about that. Here's two more showing the end and how it connects.
