Need help identifying and purchasing part

A quick learner from Cazenovia NY says:
September 12, 2021

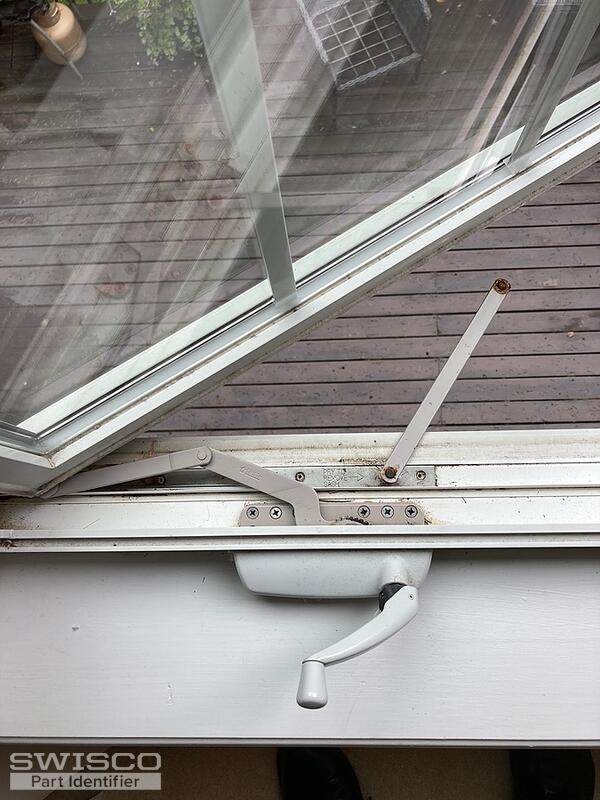

I need the part that is unattached sticking out away from the window. I will also need the part on the window frame it is attached to as well as the part on the bottom of the window it attaches to. The window is roughly 26" by 56".

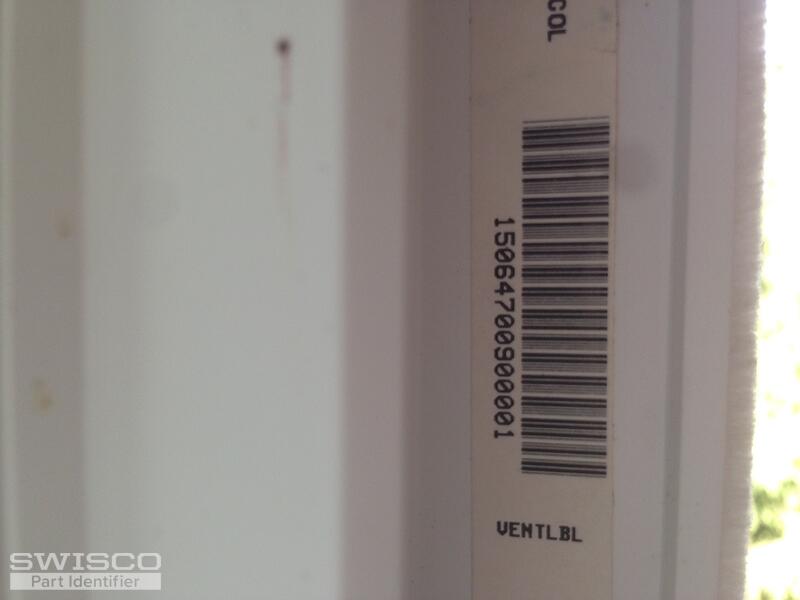

Thumbnail of the uploaded file named FD363AD4-F9FD-4266-9ABB-8E3171FB17DB.jpeg

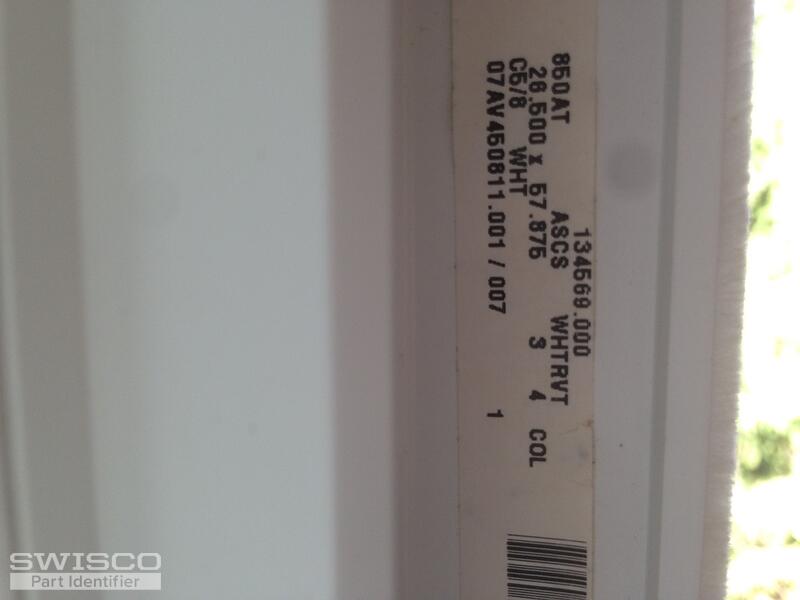

Thumbnail of the uploaded file named 75204E93-5204-4828-93CA-CB6E270EF410.jpeg
Thumbnail of the uploaded file named 9ED89754-317C-42B9-B837-8AFAF42236BA.jpeg
Profile picture of Emily
Emily from SWISCO responded:
September 17, 2021

Hi there!

It sounds like you're looking for a new hinge. Take a look at our 36-048 and 36-049 2-bar hinge sets and compare our dimensions to yours to see if either match what you need. Just be sure to replace the top and bottom hinges at the same time.
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
2-Bar Hinge Set, 14"
2-Bar Hinge Set, 14"
36-049
$20.52
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
