Need help in figuring out which balance to order : SWISCO.com

Quick Learner from Massachusetts

Jun 4, 2024 6:00 pm

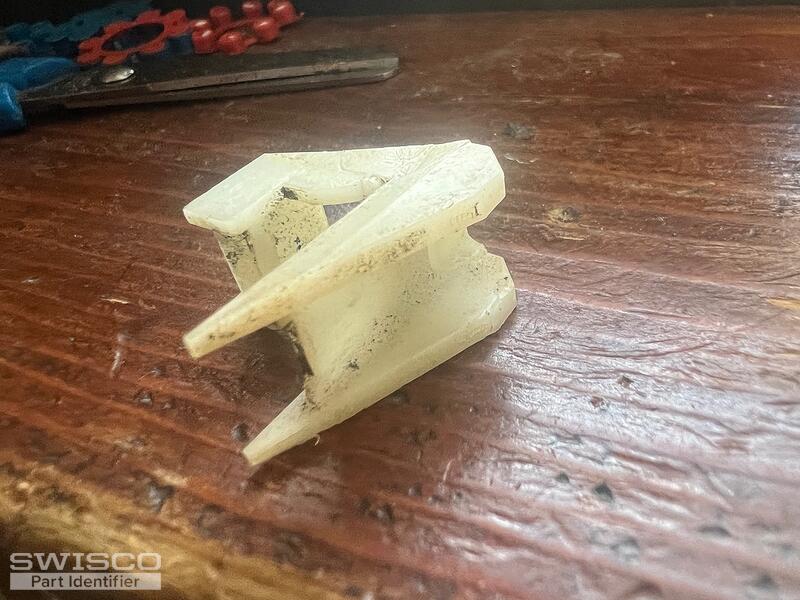

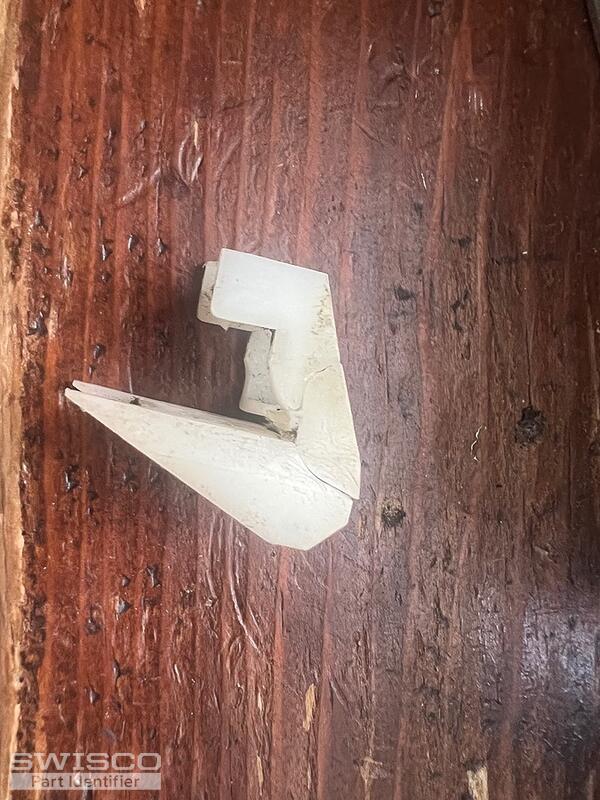

Hi! I need to replace the window balance sash. These are the identifying markings. It says 2430F but I've tried google and this site and can't find a match.

5 user uploaded images

4 Replies

Emily from SWISCO

Jun 6, 2024 1:30 pm

Hey there!

We can help with this. It appears you have the S351-25 or S390-25 channel balances. You'll have to measure as shown below to determine the best fit. I also recommend the 2430 stamp option for your replacements.

Comparison of the S351 and S390 balance shoes.

Quick Learner from Massachusetts

Jun 7, 2024 6:51 pm

Hi! So I purchased this and it arrived today. And it was too big! By an inch to be exact. The 24" is definitely the better option

Emily from SWISCO

Jun 10, 2024 8:18 am

That's very odd. Your 2430 stamp indicates the metal channel should measure 25" long. If the metal channel is 24" though, you would have to weigh the window sash on a scale to determine the new proper stamp option since your old stamp won't match up. There's a chart under the S351-24 and S390-24 product description that will tell you what option to select based on the sash weight.
