Need help in finding door handle

Quick Learner from Los angeles

Jul 11, 2024 7:16 pm

Hello there,

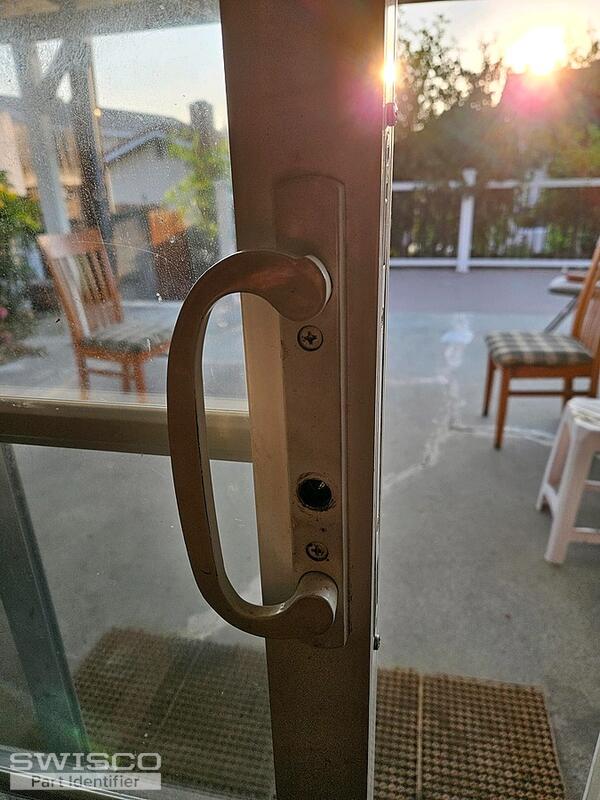

My old patio door lock broke, would like to find replacement part for the whole set.

The size of my current one seems to be the same to your product 82-086 Legacy handle set.

But we don't need the keyed set, we want a non-key set, just a lock with handle, plus the keeper/plate? that's supposed to lock the door in place (not sure what that's called) thanks

4 user uploaded images

4 Replies

Tom from SWISCO

Jul 12, 2024 12:07 pm

Hello! Our 82-089 handle set is the same as the 82-086, but lacking a key lock. As for the keeper, see our 82-249.

Please feel free to reach out if you had any follow up questions.

Quick Learner from Los angeles

Jul 12, 2024 6:19 pm

Thanks so much!

Question though, the 82-089 handle set is only the handles? I assume it does not come with the lock mechanism ? Which lock matches this handle set and the keeper 82-249 you recommended?

thanks

Tom from SWISCO

Jul 15, 2024 1:53 pm

Neither handle set comes with an internal mortise, no. Those are always sold separately. Looking at your photos, the 82-239 looks to be a good match, but review our dimensions first to verify before you buy anything.

Note that the 82-239 comes with a keeper of its own, but the 82-249 matches your original more closely. I would recommend that you still buy that and use it in place of the original.

Alternate image for 82-239
