replacement part for 1220

Quick Learner
Jun 13, 2023 4:44 pm

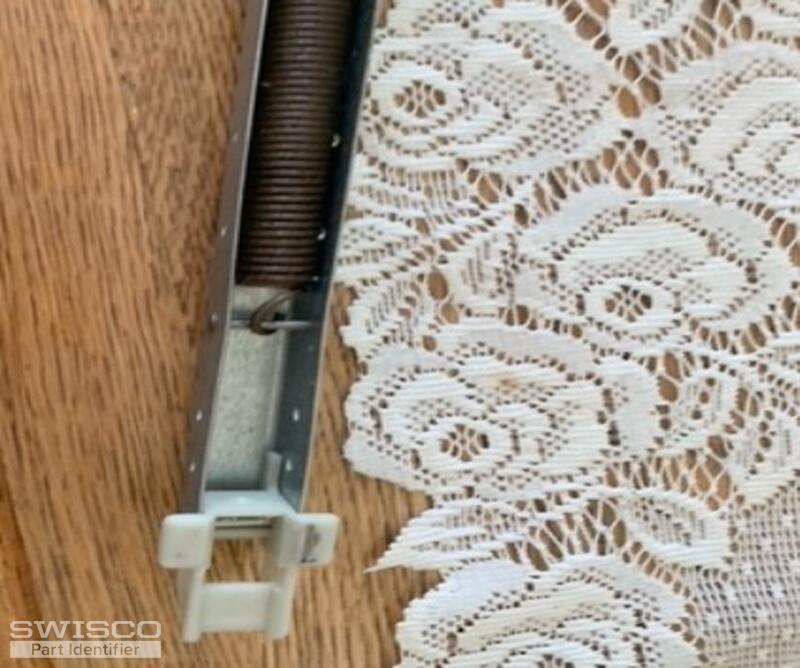

Need help finding channel balances . length is 13 and 1/8th, width is 9/16"
5 user uploaded images
2 Replies

Casey from SWISCO
Jun 14, 2023 9:11 am


Hello,

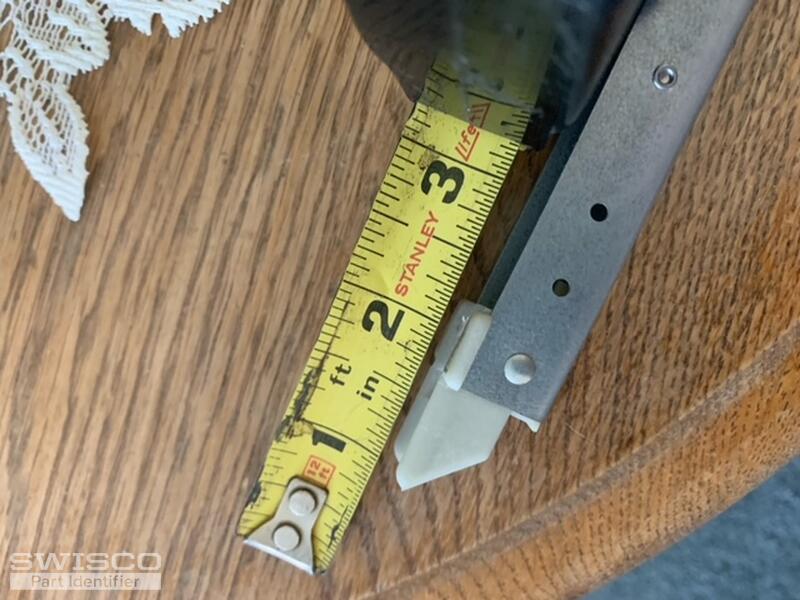

With this combination of attachments, you could have either the S380-13 or S385-13 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 1220 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
