Need help picking out parts

Question

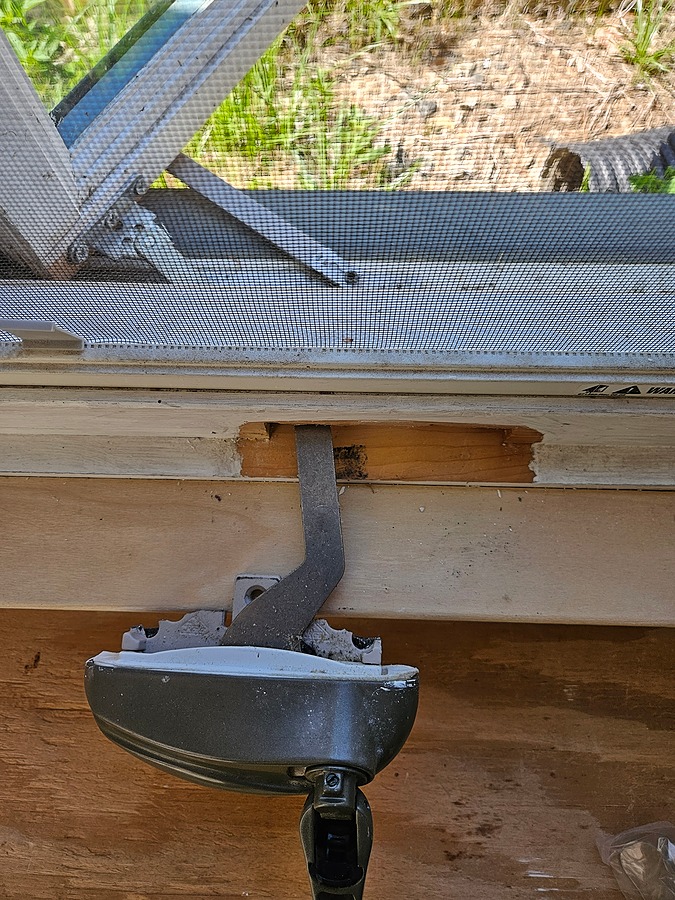

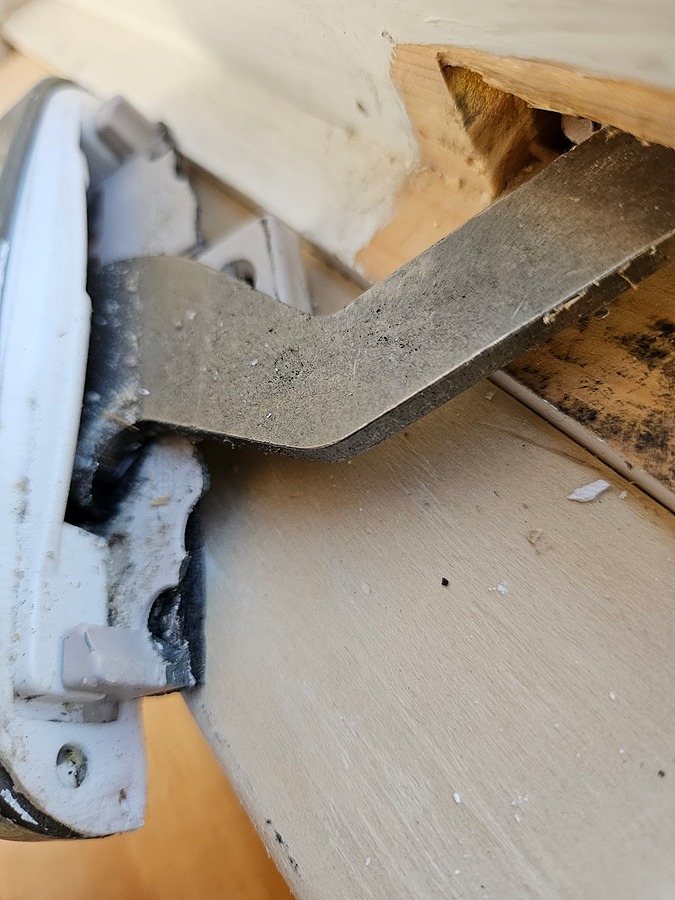

Hi, Please help me pick out the correct part. The gears have broken. Handle has number OP06-1520. There are no other numbers on the parts. I have attached some pictures with measurements and I'd like to match the same colors if possible.  Thank you.

Emily · Accepted Answer

Thank you very much for waiting during this busy summer.

Please take a look at the 39-326 Roto operator. The length of the link arm measures 3-15/16" when measured as shown below. You have a couple of options: you can either install it as is to see if it functions correctly, or you can try repositioning the bracket to see if that compensates for the difference in length.

If neither of these options works, you will need to drill out the old and new link arms. After doing so, install the old link arm onto the new operator using the 62-014B rivet.

Please let us know if you have any questions.

Side profile view with measurements

Dimensions for 39-326
