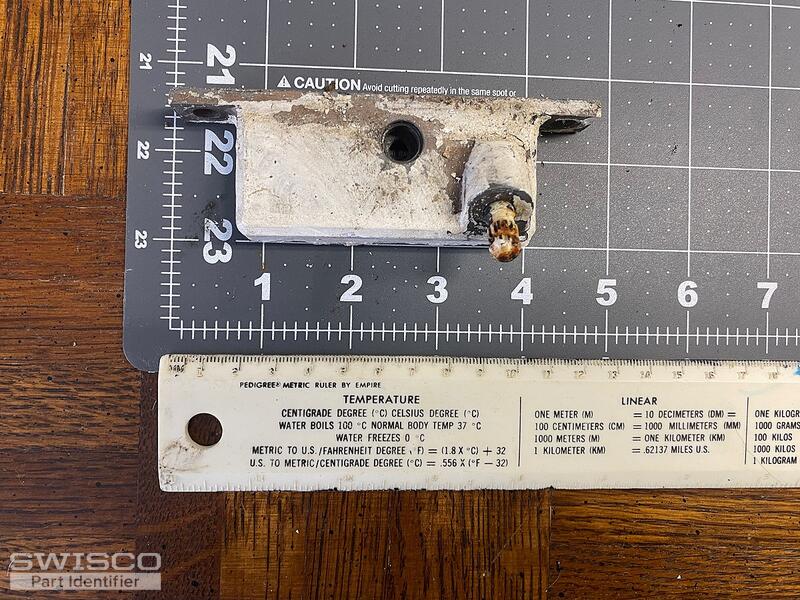

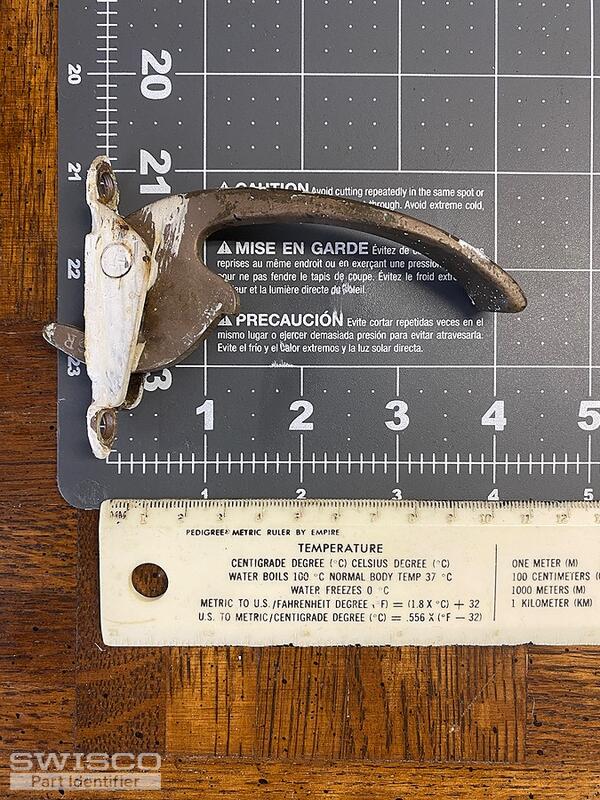

I believe these windows are from 1945. I need two complete operators/ arms/handles for leftside hinge windows and one complete set for a rightside hinge window.
I need two leftswag latches and one rightswag latch.
Need help replacing parts for casement windows
Quick Learner from Raton NM
Sep 23, 2023 5:56 pm
5 user uploaded images
2 Replies
Jasmine from SWISCO
Sep 25, 2023 3:41 pm
Thanks for writing in! You lock looks like it could be our 38-001 Neutral Locking Handle. To determine if this might be a fit, carefully review the dimensions shown below.
Alternate image for 38-001
The casement operator appears to be our 39-001 and its opposite handed version, part 39-002. Again, compare the dimensions to determine if this is the right replacement for your window.
Dimensions for 39-002
