Need help to identify hardware for two different windows

Home Owner from
I have two windows that I need replacement hardware.

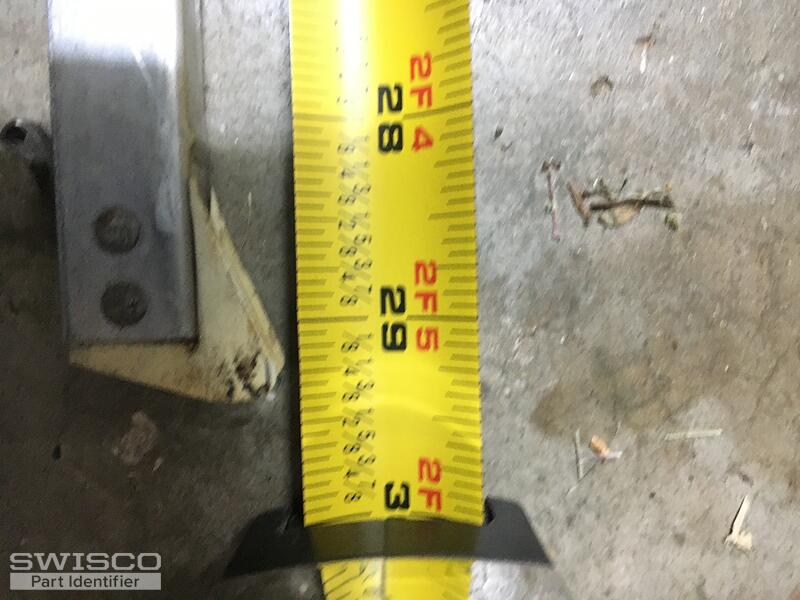

#1 Stamp 2820
#2 Stamp 28 B BSI LJ - Tilt-out window

I will attach pictures
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. The tilt window channel balance appears to be an S775-28. For a stamp option, choose 28B; for the shoe size, it appears your balance's wedge shoe is 1-1/4" wide, but pictures of measuring tape can be deceiving, so please double-check to be certain.

For the non-tilt channel balance, I need a clearer picture of the top nylon fitting. Can you send a good picture or two of that top attachment? I'll do my best to fully ID this balance from there. Many thanks.

Home Owner
I uploaded additional pictures
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Perfect, thanks. This non-tilt window channel balance looks like either our S351-29 or S390-29. The only difference between these two channel balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. Compare the diagram below with your old hardware to see which matches best. For a stamp option, choose 2820.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
