Need help to identify window balance

Home Owner from USA
Dear sirs please find the pdf enclosed
send me the correct replacement

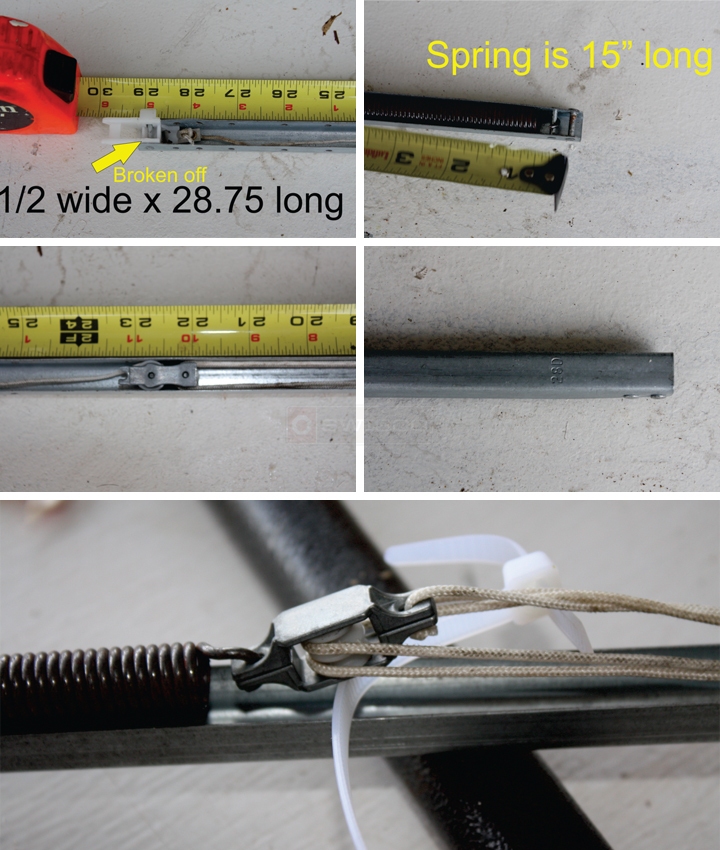

User submitted photos of a window balance.
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Hello! Looks like you have a 1/2" wide non-tilt window channel balance with a 19-005 top attachment, but the bottom attachment appears to be missing. This is one of the most important parts of identifying a balance Series. Would the balance on the other side of the window still have its shoe? If not, do you have an identical window elsewhere in the house that does? That will make identifying what you need a lot easier!
Quick Learner from Palm Coast fl.
Hi Paul
Here's a photo of the lower piece you requested.
Thanks
Pete

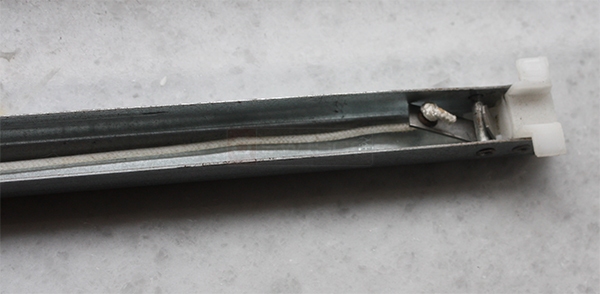

User submitted a photo of a window balance.
User submitted a photo of a window balance.
Paul
Paul from SWISCO
SWISCO
Expert
Thanks! There are two possible Series this may be, and the difference lies in the depth of the shoe. See our Series 380 , which has a shoe depth of 1", and our Series 385 with a shoe depth of 1-3/32". Measure your hardware to see which is closer!
