Need help with Part 39-453 and 39-312

Question

Hello there

I need to replace the awning operator with shoe and i think i found a couple on your website

however, i'm not sure that the shoe will fit the existing tracks.

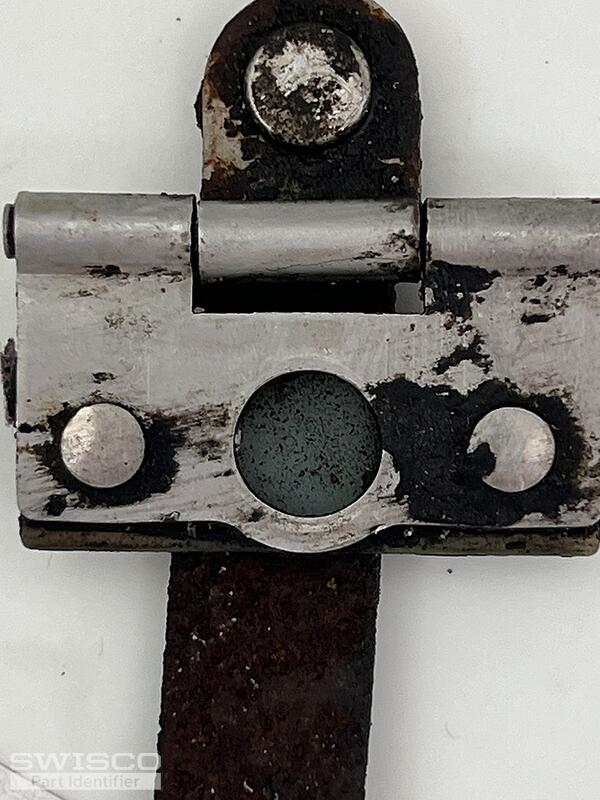

the current operator has the following numbers inside: US PAT 4505601. i have Attached the images of the damaged / broken operator and the track (the tracks look good so i'm not planning to replace them.

Casey · Accepted Answer

Hello,

Your awning operators resemble the 39-312 shown below. Take a look and compare the dimensions to your assembly. Unfortunately, we are not able to make out accurate dimensions from photos but I can tell you that the 39-312 is used with the 39-512 track, which has an 11/16" wide opening. Thanks for posting.

Dimensions for 39-312

Close up view of the channel guide end

Alternate image for 39-512
