Need mortise lock for sliding door

Question

Hi,

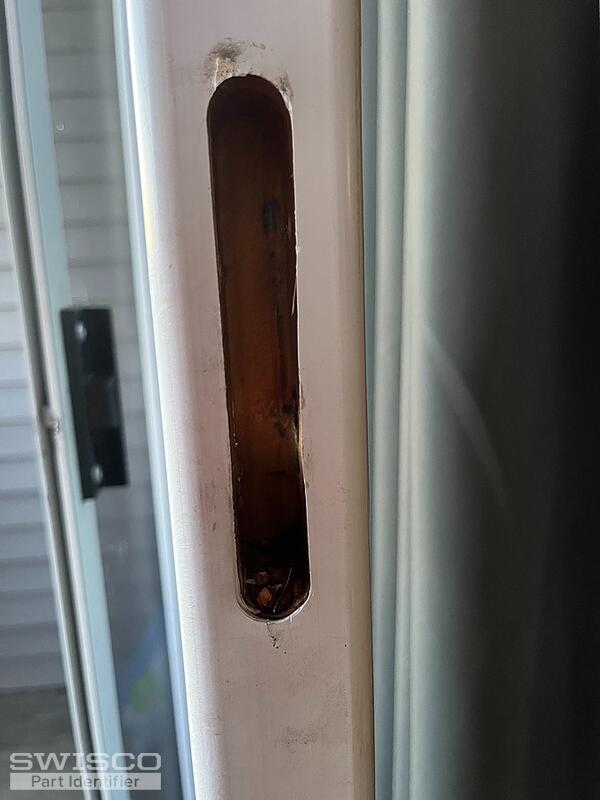

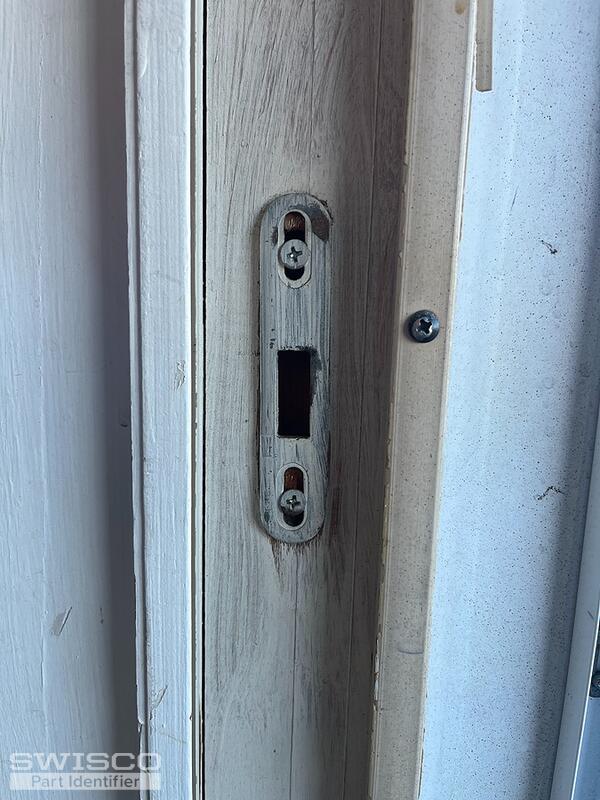

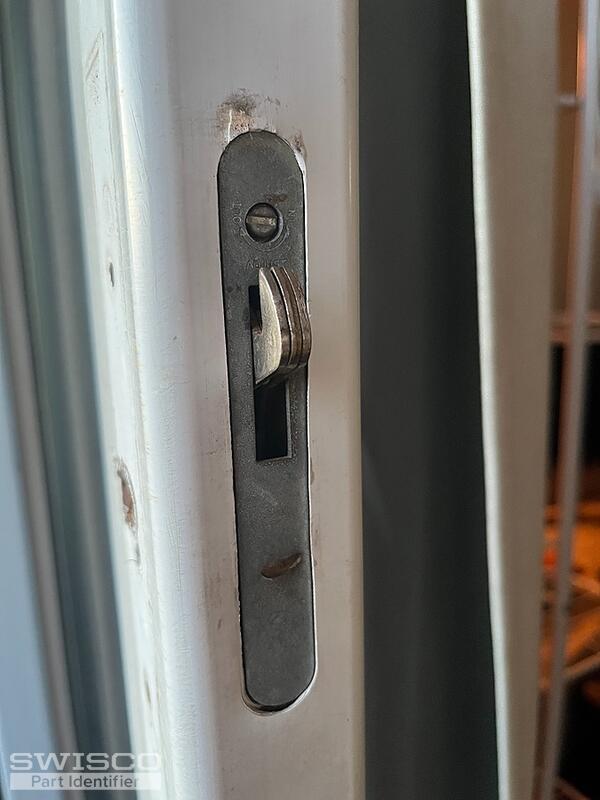

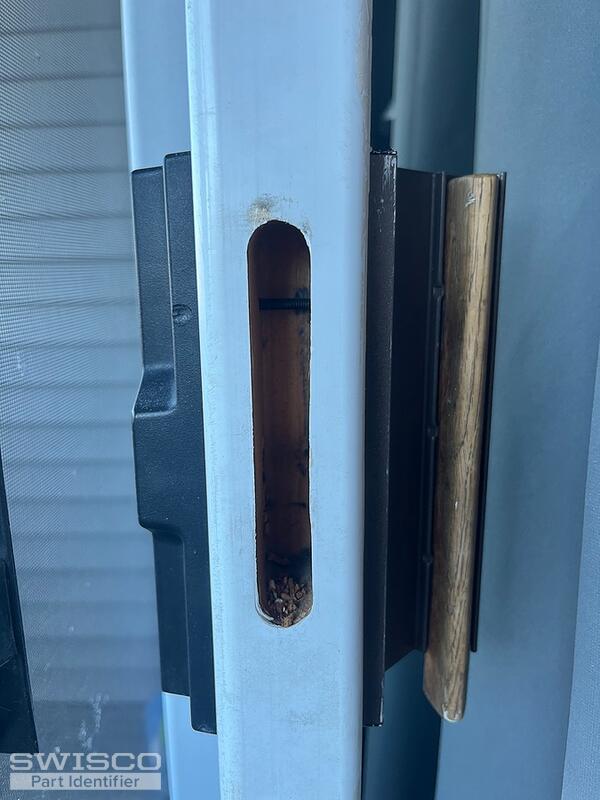

I'm trying to find a replacement mortise lock and handle set for my sliding door. The existing mortise lock got stuck and bent the lock control on the handle.

The measurement of the existing mortise lock is 4-15/16" approximately, and unfortunately I misplaced it. Please confirm that your product 82-226 or 82-227 would be appropriate.

Thanks,

John

Casey · Accepted Answer

Hello,

Your mortise looks like a closer match to the 82-263 at first glance. See the dimensions from our product page below to confirm that they match up to your part.

Alternate image for 82-263

This mortise is commonly used with handle sets that use the 82-033 handle set with 3-15/16" hole spacing. Take a look to confirm that the specifications of these parts match your assembly. Thank you!

Alternate image for 82-033
