Need new channel balances (non-tilt window)

Question

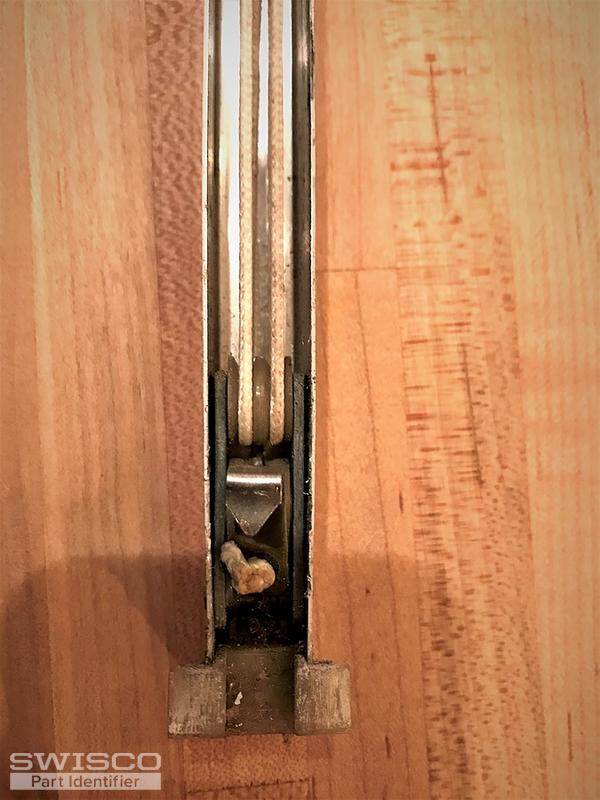

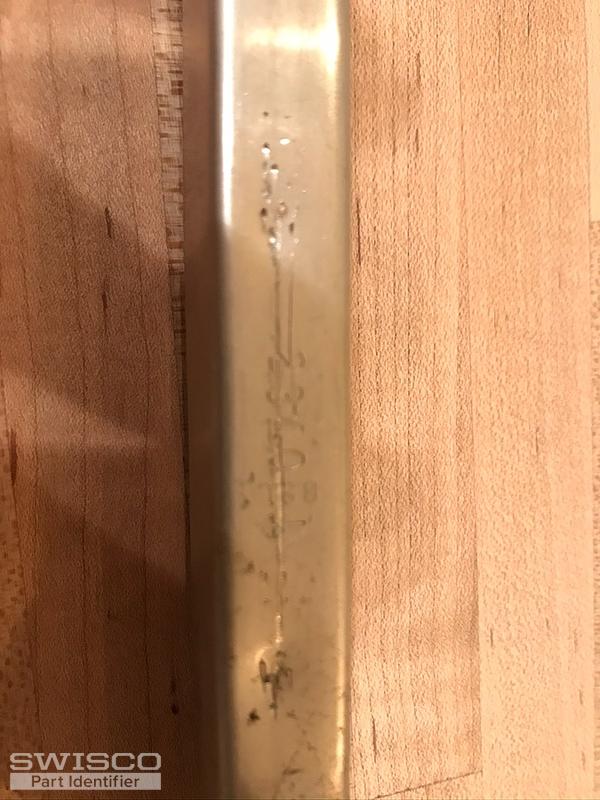

Hello - I need new channel balances for a non-tilt window. They look like they are 24" x 1/2", but I can't tell which series I need based on the fittings (pictured). The stamp option (pictured) looks like it's 2340.

Thanks- Matt

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2340 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
