Need new crank ( old bent) and 3 plastic lock rod guides

Question

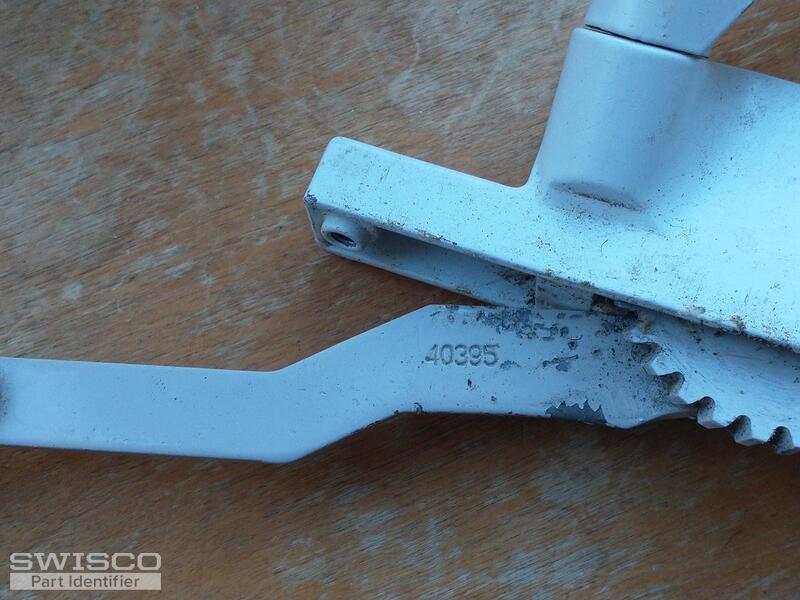

I need a new casement window crank ( existing one is bent) and three new lock rod guides. The word TRUTH is on one of the arm sections of the crank. I do not know how the crank handle comes off. There are three screws that secure the mechanism to the frame. See the third scree on the underside.

Jasmine · Accepted Answer

Thanks for writing in! Your casement crank operator reminds me of our 39-090 Window Dyad Crank. The opposite handed version is our 39-089. To confirm that this is the right fit, carefully look over the dimensions and design.

The compatible crank handle is our 39-114L. You may also need the 39-508, which is a neutral stud bracket.

Dimensions for 39-090

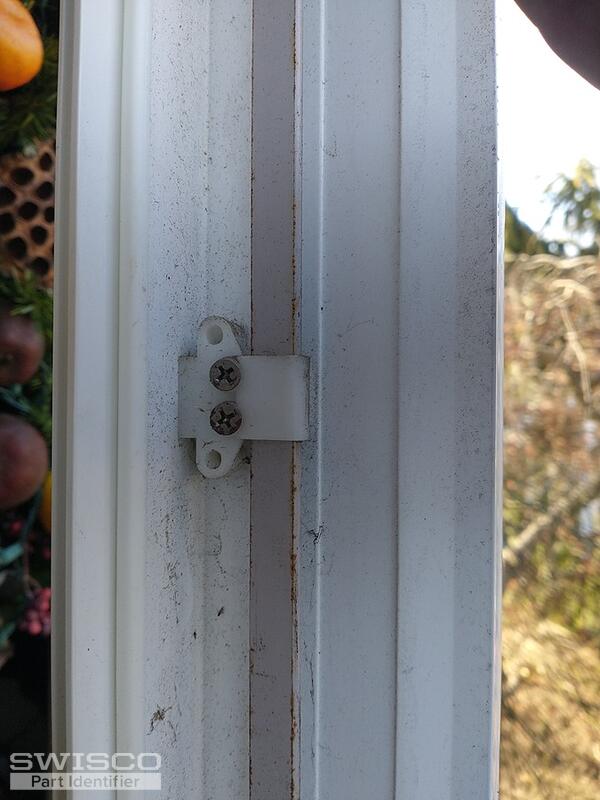

The tie bar guide, installed on the side of the window, looks a lot like our 39-448. Again, look over the dimensions and compare them to your existing guide to confirm if this is the right replacement for your window.

Alternate view of 39-448 with dimensions

Side view with dimensions for 39-448
