Need new door handle (white)

A handy person from Anderson, SC says:
Our handle has broken in half! I've attached the pictures from the door.
Thumbnail of the uploaded file named 98AB83ED-21BE-432D-B3AC-2B9246667769.jpeg
Thumbnail of the uploaded file named AF7672CC-6241-49EC-9EB9-065F702230AB.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Unfortunately, the stickers don't tell us the hardware that the door uses but if you could show us the original handle and provide the distance between the mounting holes, measured from center to center, we'd be happy to research your replacement options. Thank you!

A handy person from Anderson, SC says:

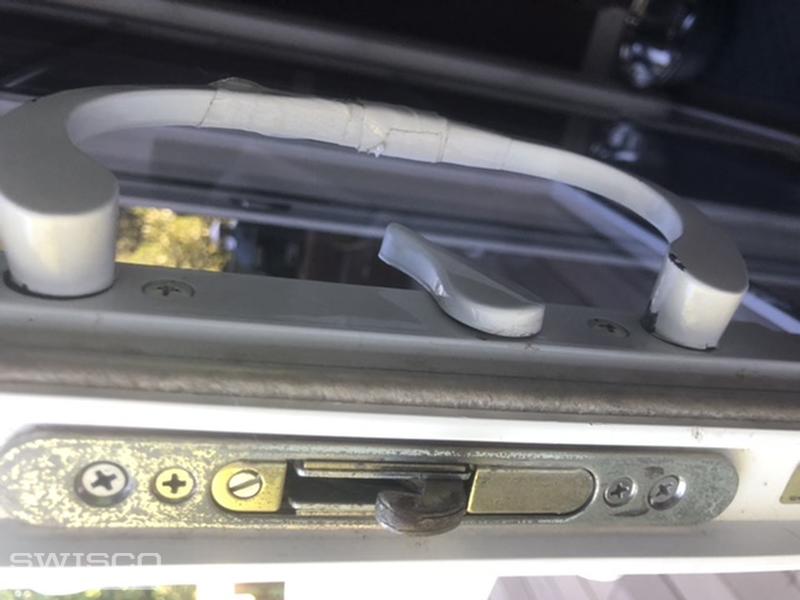

The mounting holes on the inside of the handle mount (above and below the lock) look to be 3 7/8" apart. The top and bottom holes on the door edge are 4 5/8"
Thumbnail of the uploaded file named 10572110-39AB-4002-9F83-E3B014D45D8E.jpeg
Thumbnail of the uploaded file named 2D36EF25-167B-48F5-AFC5-90CE1EAC40D1.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look at our 82-086 handle set with 3-15/16" hole spacing, as well as the 82-226 mortise lock, and see how our hardware compares to yours.

Also, keep in mind that a broken handle can sometimes indicate that the rollers may be dragging due to age or debris in the rollers or track. Just something to consider. Thank you!
