Need new operator and guides. Thanks for having a look!

Handy Person from Aspen, CO
Sep 6, 2024 12:19 am

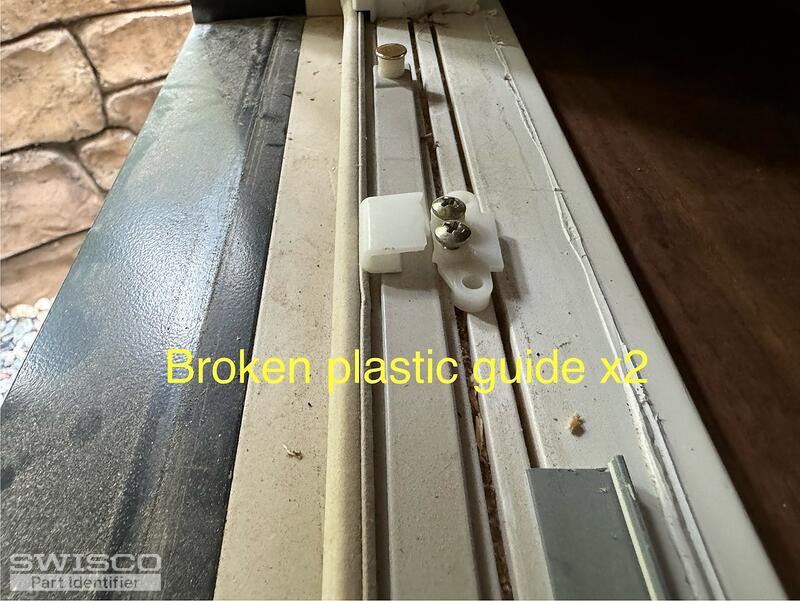

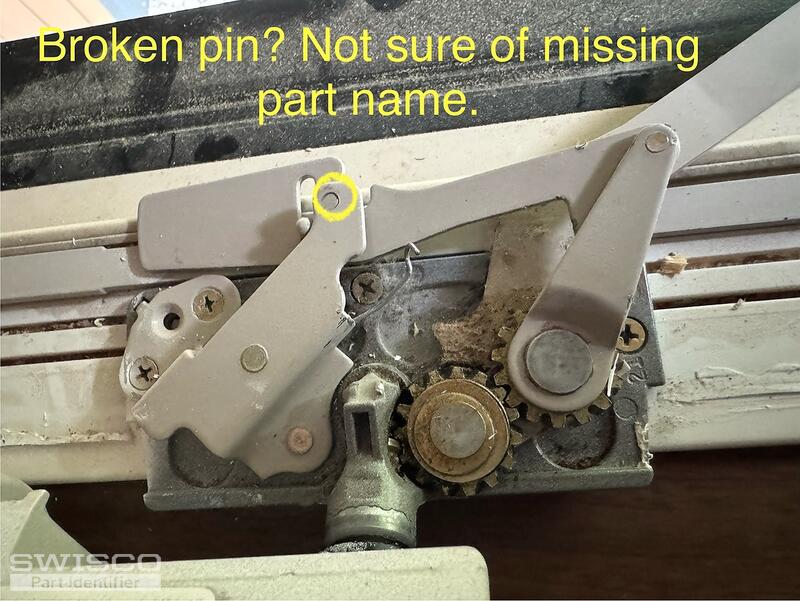

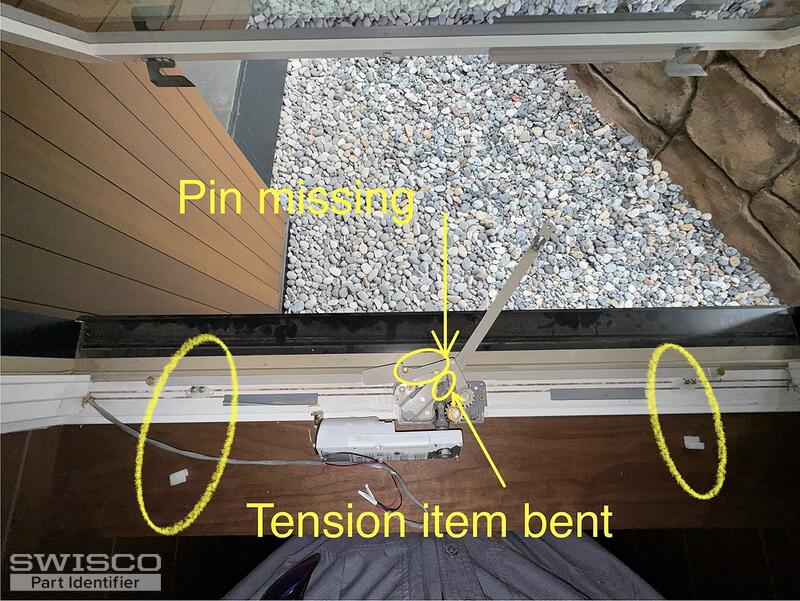

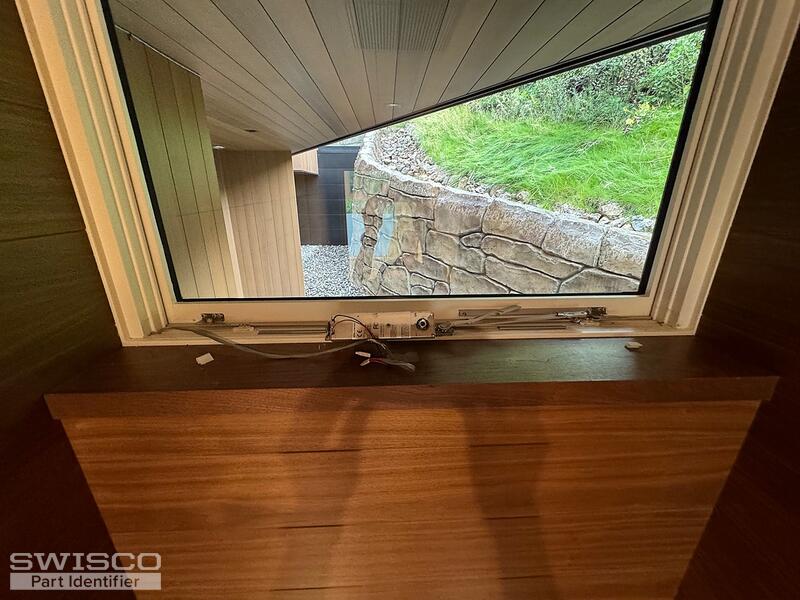

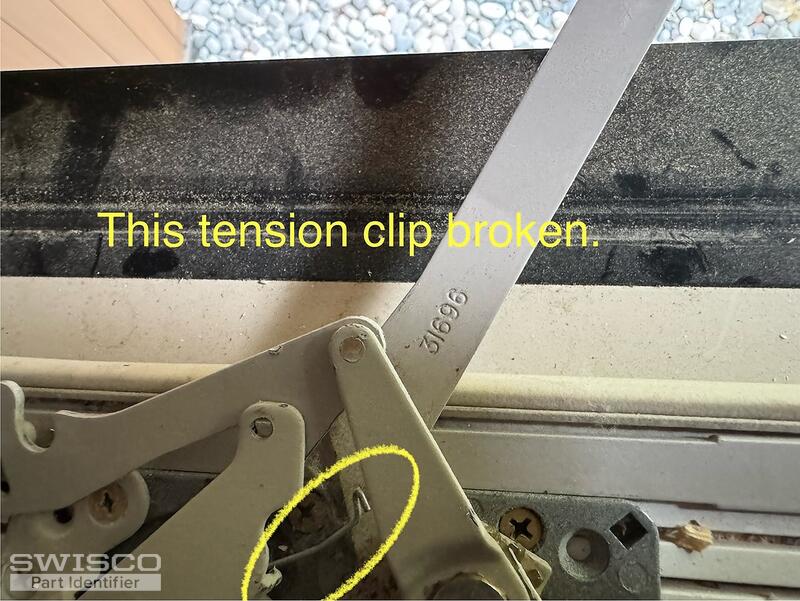

Wish I had more info. 31696 is on an arm. Looking for these broken plastic guides for the locking slide bar too. The help y'all provide is so very much appreciated.
IMG_1246 IMG_1245 IMG_1244 IMG_1243 IMG_1240
5 user uploaded images
2 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Sep 9, 2024 11:13 am
SWISCO
EXPERT

Thanks for reaching out to us! I'm sorry to say that we would not be able to supply you with a replacement for the awning window operator or the tie bar you have here. Unfortunately, we do not have anything that could work to retrofit either of them.

The tie bar guide can likely be replaced with the 39-448 Tie Bar Guide. You'll need to look over the dimensions and compare them to determine if this is the right fit.

Alternate view of 39-448 with dimensions
Alternate view of 39-448 with dimensions

Side view with dimensions for 39-448
Side view with dimensions for 39-448

Handy Person from Aspen, CO
Sep 9, 2024 11:25 pm
Jasmine thanks for this info I greatly appreciate your time!
