Need new pivot shoes, springs and sash sliders

A quick learner from US says:
The pivot shoe is 5/8? deep. The springs are around 30?. I think you can see the other dimensions in my photos.

Hope you can help us.

Pat
Thumbnail of the uploaded file named 13043243228.jpg
Thumbnail of the uploaded file named 13043243229.jpg
Thumbnail of the uploaded file named 13043243231.jpg

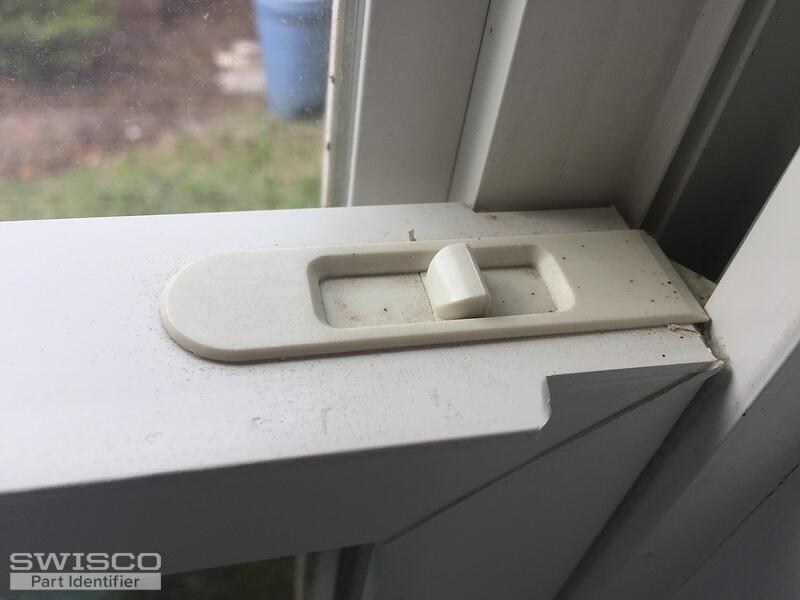

Thumbnail of the uploaded file named 13043243232.jpg
Profile picture of Paul
Paul from SWISCO responded:

The company that previously made your pivot shoe and balance are no longer in business. We have known customers to go with the 15-118 pivot shoe as a replacement along with the S600-29 spiral balance. Moving along to your top tilt latch, see if our 26-243 and 26-244 will work well as alternatives in your window. When reviewing these latches, there is no need to focus with the straight back to your curve back. Our tilt latch will cover the opening. We placed some helpful media guides on this page for more help.
