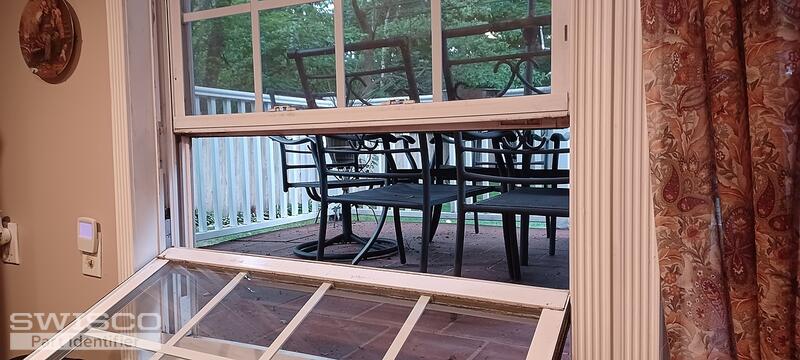

Need new these parts for a tilt window purchase at home depot 17 years ago.
Quick Learner from Islandia, New York
Jun 11, 2022 5:56 pm

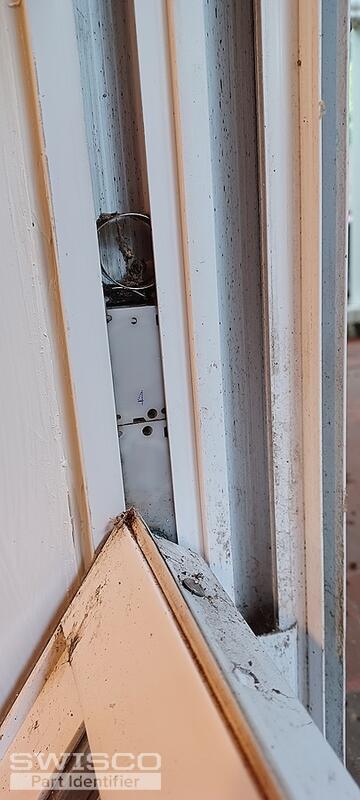

Can you help me identifying. Looks like ,double coil with the number printed on the spring 4z??
4 user uploaded images
3 Replies
Quick Learner from Islandia, New York
Jun 11, 2022 5:58 pm
1 user uploaded image
Emily from SWISCO
Jun 15, 2022 10:42 am
Hello!
I suspect you may have our 15-087 pivot shoe and 15-086 housing but you'll need to remove your hardware from the window to confirm the dimensions match up. For new coil springs, see the Series 180. You will also need to weigh your sash on a scale and divide the weight by the number of coils on both sides of the window to determine the correct spring strength option.
