Need new tilt switch and pivot bars

A quick learner from Ct says:
May 15, 2018

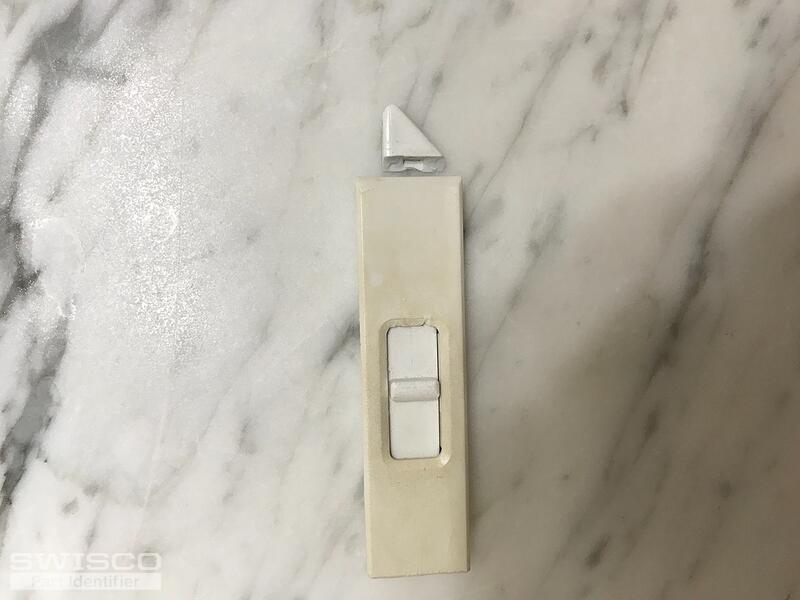

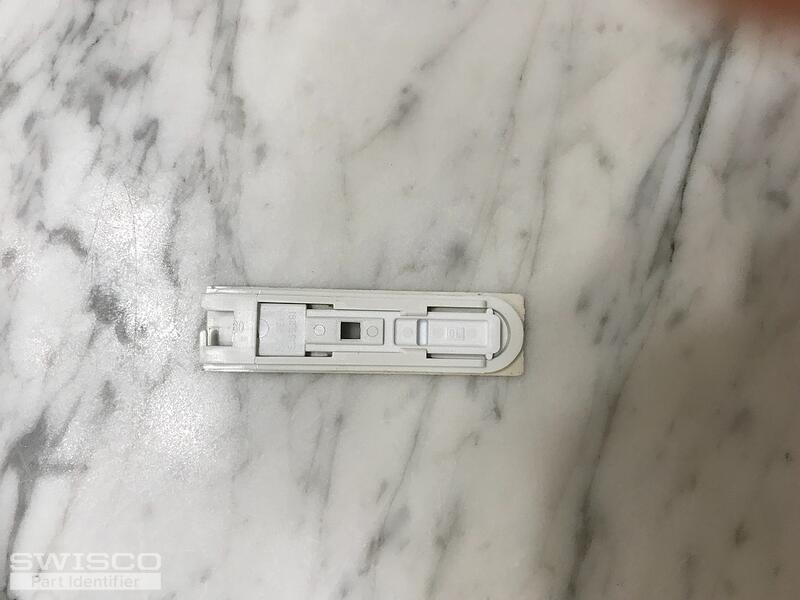

Helllo I need a new tilt switch. I included picture. As far as identification all I can see is the following in various areas:

E
9L
092
Pat. Pend. 5,139,291

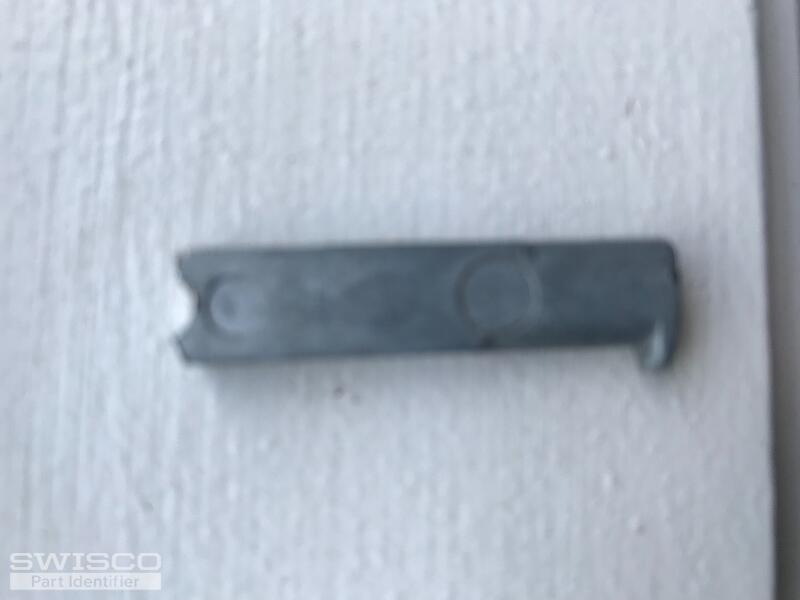

I also both my pivot bars split. I unscrewed the screws but the pivot bar will not come out of window. The sash end looks like its permanent. Any suggestions? I attached the end piece that goes in to the window shoe. The only number I see is a 7.

Thanks!
Thumbnail of the uploaded file named B7130885-4FF6-493C-975F-74F16EA52AA7.jpeg
Thumbnail of the uploaded file named 4404B9AA-8A40-4649-B81A-60D04238F0CA.jpeg
Thumbnail of the uploaded file named 6786A143-D7EA-4533-A01C-F68B55C68D51.jpeg
Profile picture of Paul
Paul from SWISCO responded:
May 21, 2018

We have placed a detailed list of possible replacements for you to review on this page. The best way to go about matching up your parts to ours would be to have you use an undamaged existing piece so that you can get the most accurate results.

As for the broken end in the sash, if you can't remove it by using a needle nose pliers, you may have to push it in further when you get a replacement pivot pin. The sash usually has some wiggle room for scenarios like this.

For the top tilt latches you show, take a look at our 26-390 and 26-391 and see what you think.
A quick learner says:
June 1, 2018
Thanks. I ordered a few to try out.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-443
$1.98
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-444
$1.97
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-454
$1.98
Slim Top Tilt Latch, LH
Slim Top Tilt Latch, LH
26-390
$2.81
Slim Top Tilt Latch, RH
Slim Top Tilt Latch, RH
26-391
$2.81
