Quick Learner from Boston Ma

Jul 3, 2024 6:34 pm

Window Size: 47 X 34 1/2 R
FLGL 19 3/8 X 30 1/8
NFRC 100 (NAMI)

Code: Hll- 280-1
SPEC: NFRC
Series: CLCASE
MST : 280-M-006,7,14,15
The handle(operator)was broken (half of the screw was broken inside) was unable to a new one
Therefore window was unable to operate! Can we able to get the replacement?

6 Replies

Emily from SWISCO

Jul 8, 2024 10:00 am

Hello there!

Thanks for reaching out to us. I'm afraid this information doesn't help us ID your operator. Can you show us a photo of the window open so that the operator's arms and base are fully visible? That should help us confirm if we have a comparable match.

Quick Learner from Boston Ma

Jul 8, 2024 10:40 am

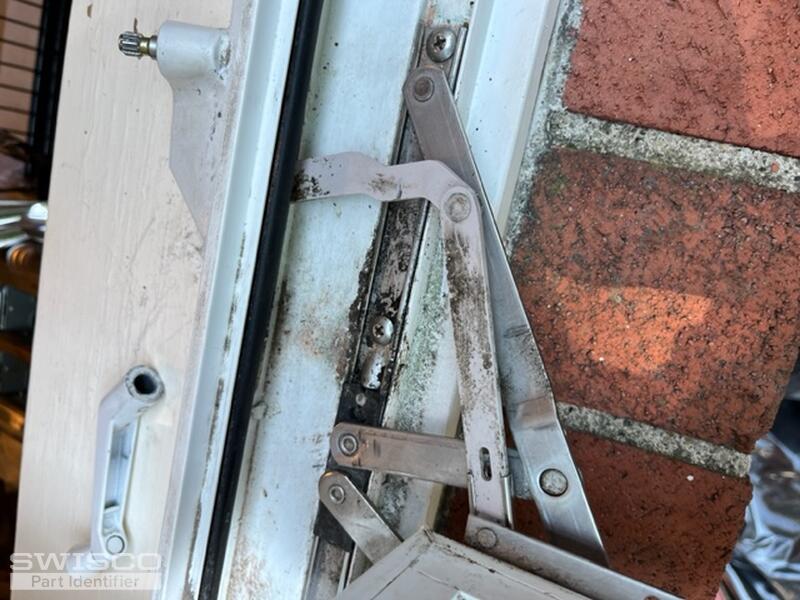

2nd request; these are the pictures!
Thank you!

1 user uploaded image

Emily from SWISCO

Jul 8, 2024 11:32 am

Thank you! The operator shown here brings the 39-187 to mind. I recommend you review our specifications to see if they align with what you need.

Let us know if you have any questions!

Dimensions for 39-187

Quick Learner from Boston Ma

Jul 8, 2024 11:47 am

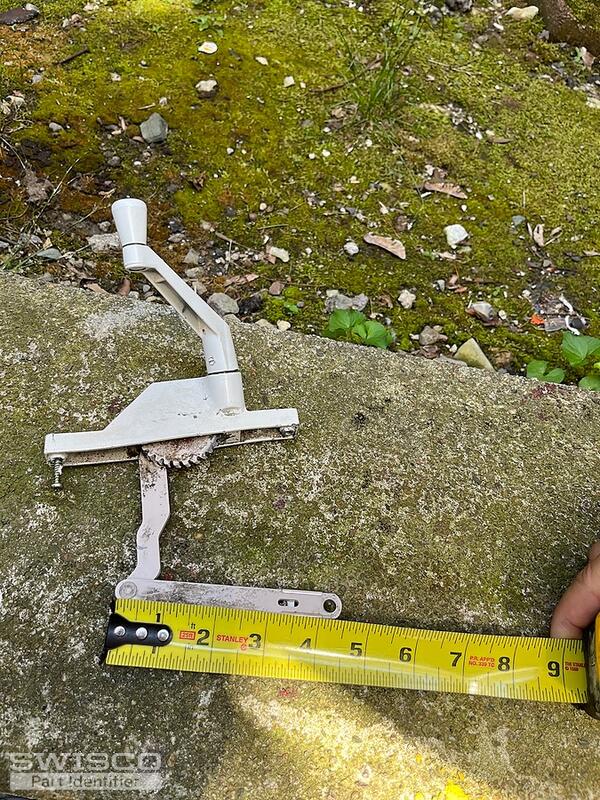

The lower part of the arm ; it should be 4 1/2 " not 5"

1 user uploaded image

Emily from SWISCO

Jul 9, 2024 8:08 am

We don't sell a version of this operator with a 4-1/2" link arm. You could first try using the operator as is to see if it works regardless. If it doesn't, you can try re-positioning the stud bracket the link arm connects to and see if that makes up the difference.

You can swap the old and new link arms if all else fails. If you're up to the task, you'll need to drill the link arms out, then use a 62-014B Rivet to connect the old link arm to the new operator.
