Need one

Professional from Naples, fl

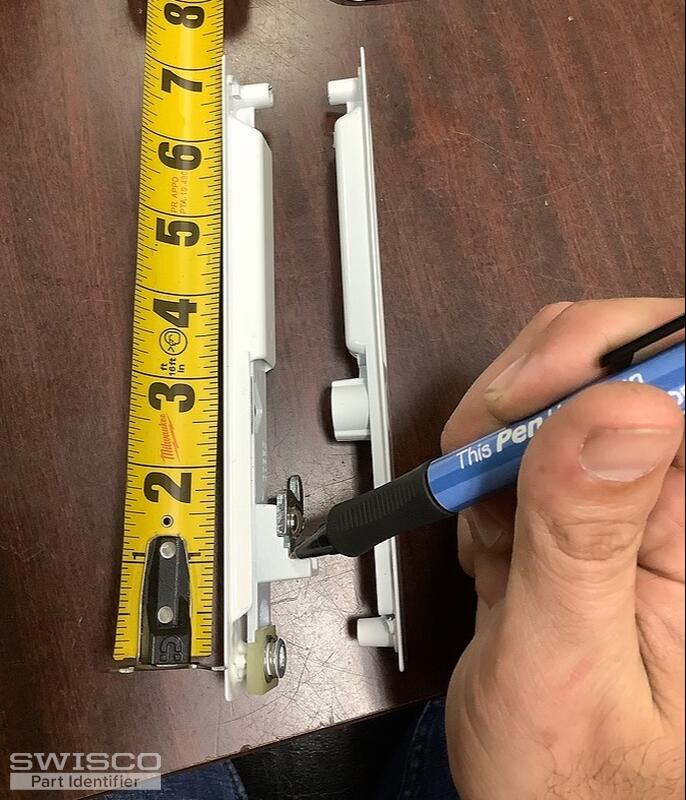

I need a basic builders grade patio door flush handle in white, but for a door that's 1-3/4" thick. The lock I need looks just like the last picture but with an extra "step" where my pen is pointing to accommodate the thicker door. Measurement from screw to screw is 6-5/8". I've been unable to find one anywhere so far
4 user uploaded images
3 Replies
Professional from Naples, fl
Update: it looks like the hole spacing is actually 6-9/16", not 6-5/8"
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thanks for reaching out to us. We don't sell a handle with 6-9/16" hole center spacing. We have the 82-002 but this measures 6-5/8" on the installation hole centers. We recommend you triple-check just to be safe.

Note that this handle set is designed for doors that measure 1" to 1-1/8" thick. Since your door is 1-3/4" thick, you would have to reuse the old screws. Also, keep in mind that the hook needs to reach the hole in the door where it sticks out. If it doesn't you can pack it out with washers; some customers said this worked while others said it didn't but it's the best we can offer. Take a look at the specifications and see what you think.

Alternate image for 82-002
Alternate image for 82-002

Alternate view of 82-002
Alternate view of 82-002
