Need part number for small window

A quick learner from Bayonet Point, FL says:

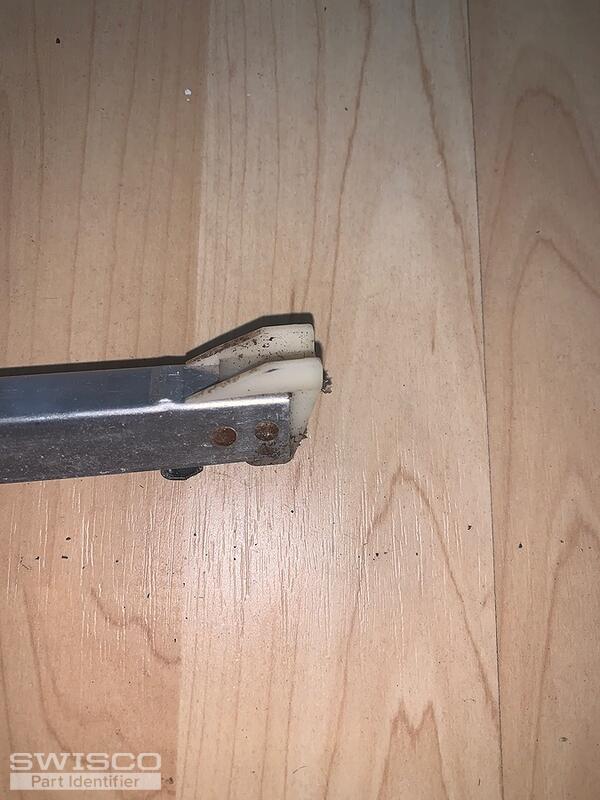

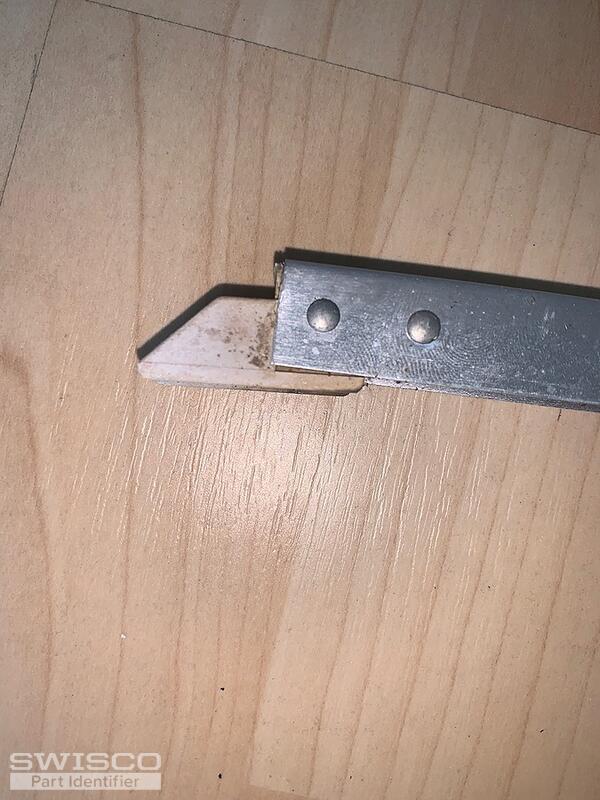

11" measure on rod. Please see photos attached
Thumbnail of the uploaded file named 7429F731-9295-4628-AE66-DDFD5C0659C1.jpeg
Thumbnail of the uploaded file named 1ED2AAA6-F903-4610-A998-E77F5FF2FAF2.jpeg
Thumbnail of the uploaded file named 44728500-B97F-45CF-A564-BF20F68BA7E5.jpeg
Thumbnail of the uploaded file named 70F293D1-4035-47A0-A1CF-A6226A73AE7C.jpeg
Thumbnail of the uploaded file named 217DA087-A542-4593-9BD6-477A0B268DB8.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need an 1110 spring strength option for your replacement balances. I would recommend double checking the length of your metal channel, not including the end attachments, since your stamp indicates that the length would be 12". Thank you!



Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
