Need part number and link to specific window crank

Home Owner from Florida

Dec 16, 2018 3:55 pm

Can you please advise the part number to the window crank in the attached photo, along with a link to it? The crank is stripped and will not close the window.

Ed

1 user uploaded image

4 Replies

Dave Sr. from SWISCO

Dec 18, 2018 12:34 pm

I think we can help replace this operator, but I cannot tell for sure what to recommend without seeing the link arm. Can you remove this from the window and show us that detail? That would be a huge help.

In the meantime, look at our 39-054, 39-056, 39-084, 39-259, or 39-432. These are some handles that match your hole spacing, but there's no saying what link arm is the best match. Since you're in Florida, the 39-054 is a strong contender, but you should still match it up just in case. Also look at the related video.

Home Owner from Florida

Dec 18, 2018 2:35 pm

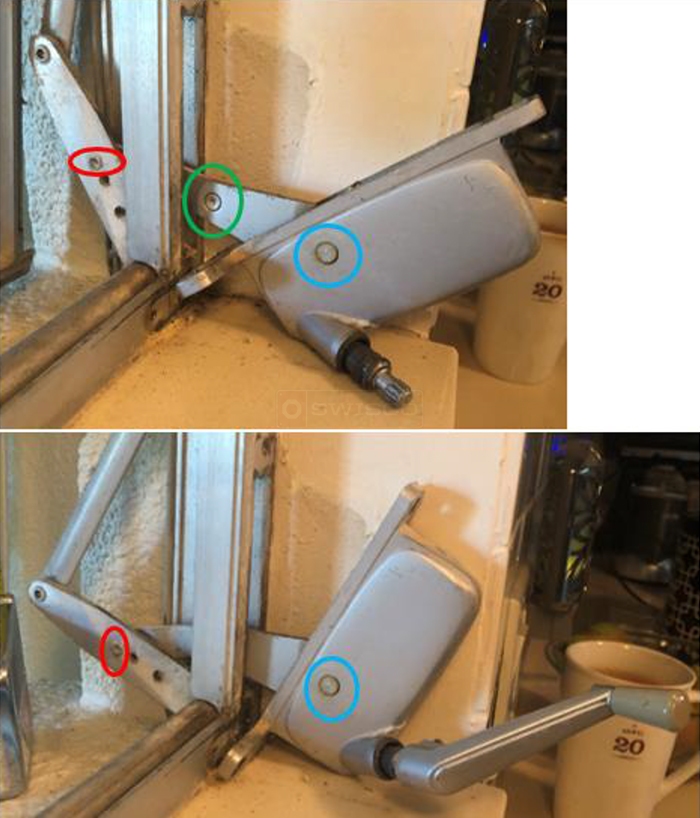

To help you ascertain which crank I should buy, please see the attached two pics of the same window crank here:

https://html2-f.scribdassets.com/7f8pcdu75s6p4fxw/images/1-de10bc8b2d.jpg

In the pic, I am unable to detach the linking-mechanisms that are circled in red and green. In one of your videos, those linking mechanisms are held-in with a Philips head screw, but these mechanisms appear to be permanently fastened in. How can I replace the crank if the mechanisms are permanently fastened in?

User submitted photos of a window operator.

Dave Sr. from SWISCO

Dec 20, 2018 11:12 am

Look on the opposite side of the link arm. There might be an e-ring like the 21-161 holding the operator link arm to the window linkage. Detach the clip and the arm should come loose to remove the operator.
