Need reel and assembly replacement

A home owner says:
October 23, 2020

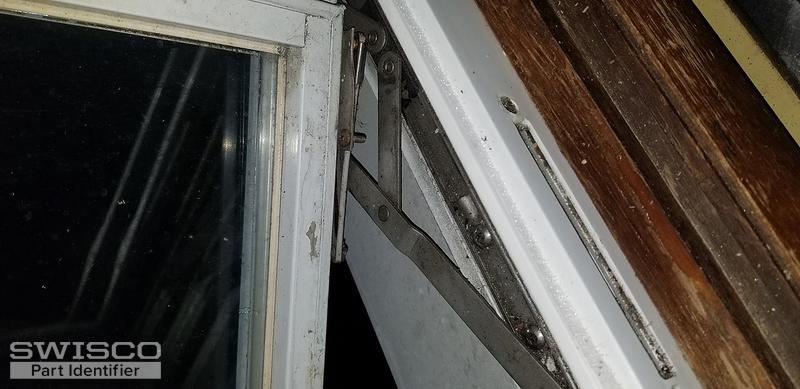

Hi can someone please help me identify this particular reel as shown in the pic. Thanks a lot

DAN

Thumbnail of the uploaded file named 20201023_052111.jpg
Thumbnail of the uploaded file named 20201019_181805.jpg
Thumbnail of the uploaded file named 20201022_130834.jpg
Thumbnail of the uploaded file named 20201019_181812.jpg
Thumbnail of the uploaded file named 20201019_173331.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 28, 2020

It looks like you're trying to find a window operator. We can help, but your photos only show the base, which doesn't narrow it down by too much. We need to see the entire mechanism, whole and undamaged, and preferably without obstruction. Please let me know if that would be possible.
A home owner from Cranston Rhode Island says:
November 3, 2020

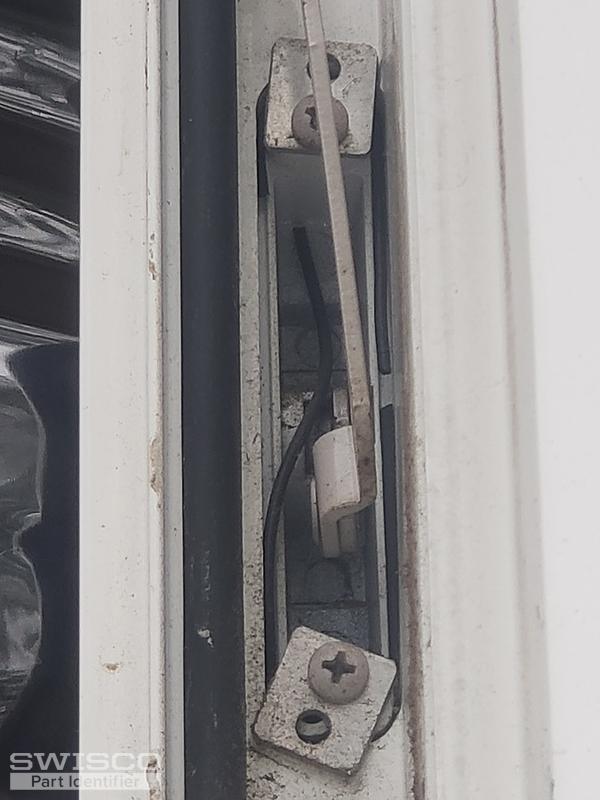

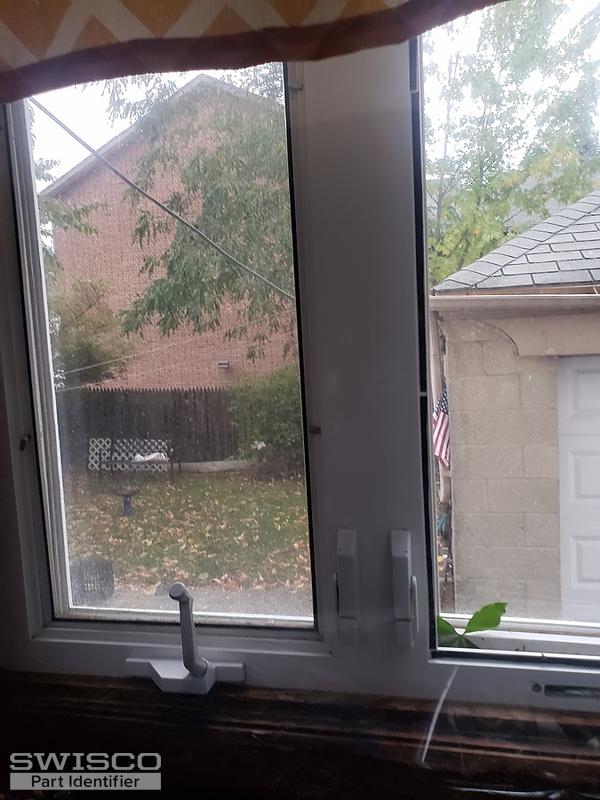

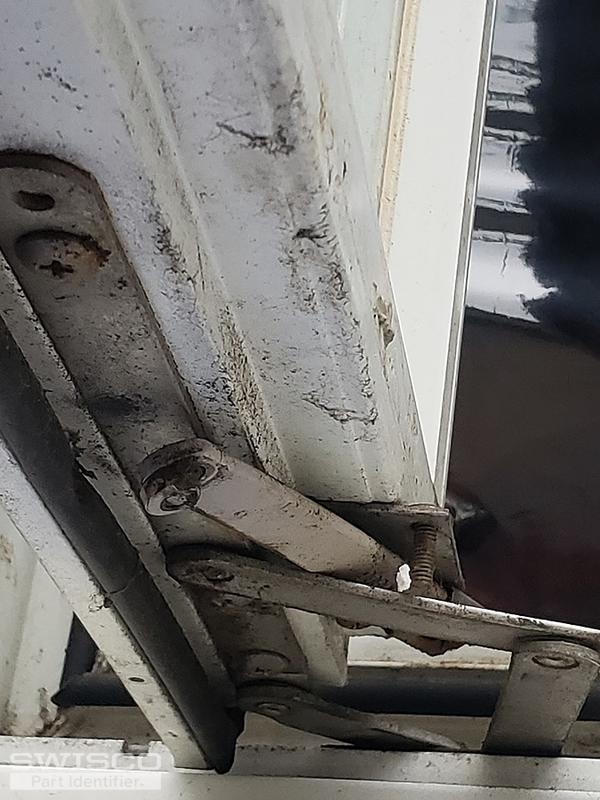

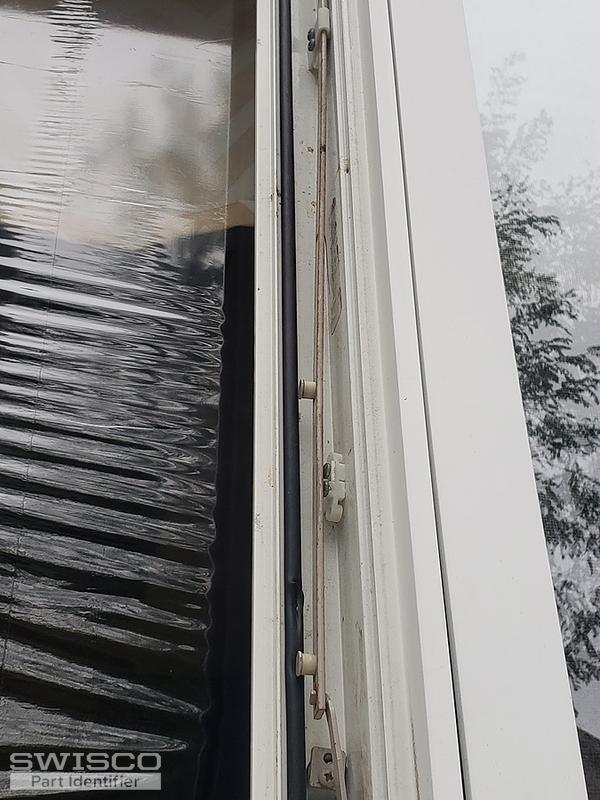

Hello again I am providing more pictures hopefully these will be the ones that will help.

Thumbnail of the uploaded file named Resized_20201101_141152.jpeg
Thumbnail of the uploaded file named Resized_20201101_141207.jpeg
Thumbnail of the uploaded file named Resized_20201101_141124.jpeg
Thumbnail of the uploaded file named Resized_20201101_140900.jpeg
Profile picture of Tom
Tom from SWISCO responded:
November 4, 2020

Thank you. Using these new photos, I can recommend our 36-048 hinge set and the 38-058L and 38-058R locks. However, I still can't make out your operator. If you do need that, I think it would be best to see the original removed from the window so that I can see it untangled from the rest of that hinge hardware, so to speak.
