Need replacement

Quick Learner from Las Vegas

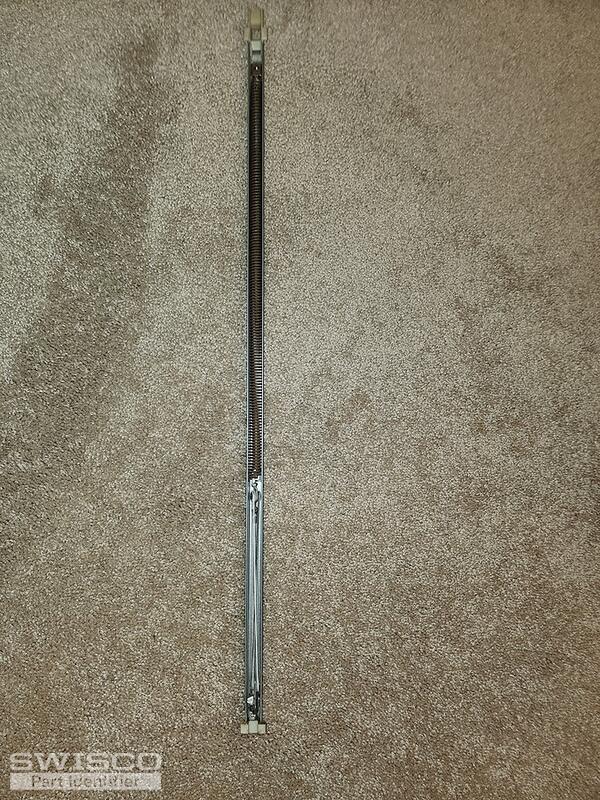

27" long
5 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

We can assist with a replacement option, but to further review, we will need to see an additional picture of the inside of the metal channel where we can see the connection point of the spring and pulley system. From there we can determine the correct fit for your window. Thank you!

Quick Learner from Las Vegas

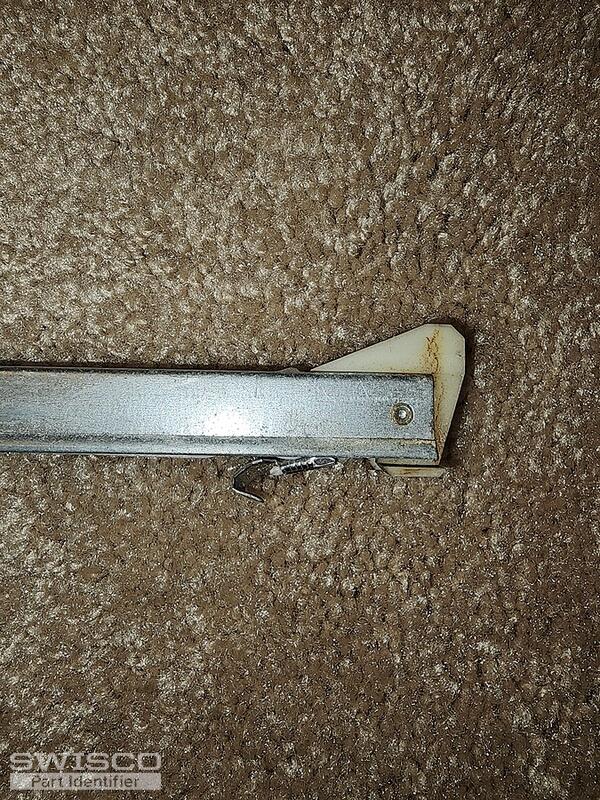

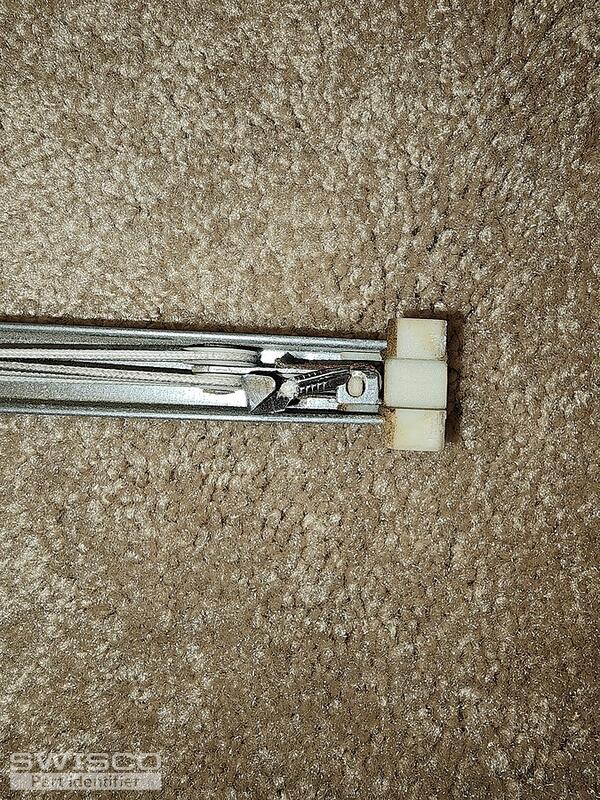

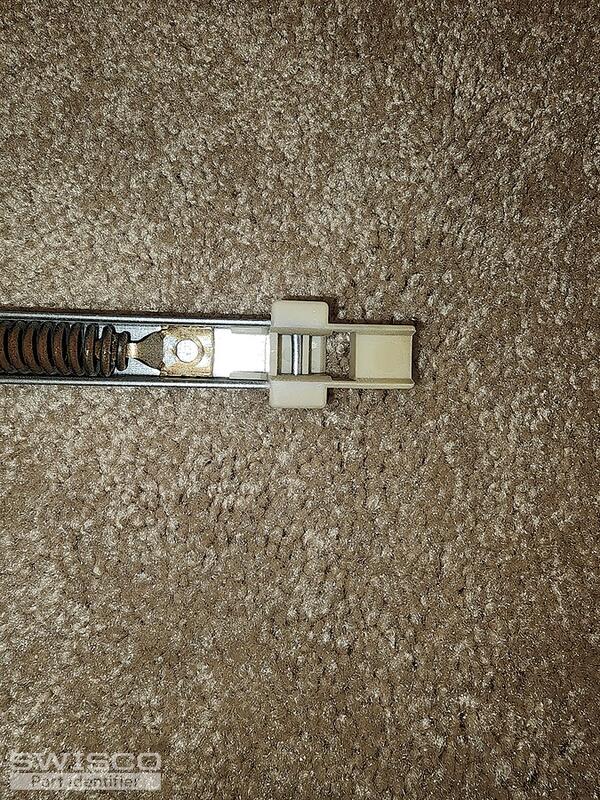

Here is the inside
3 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional pictures,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

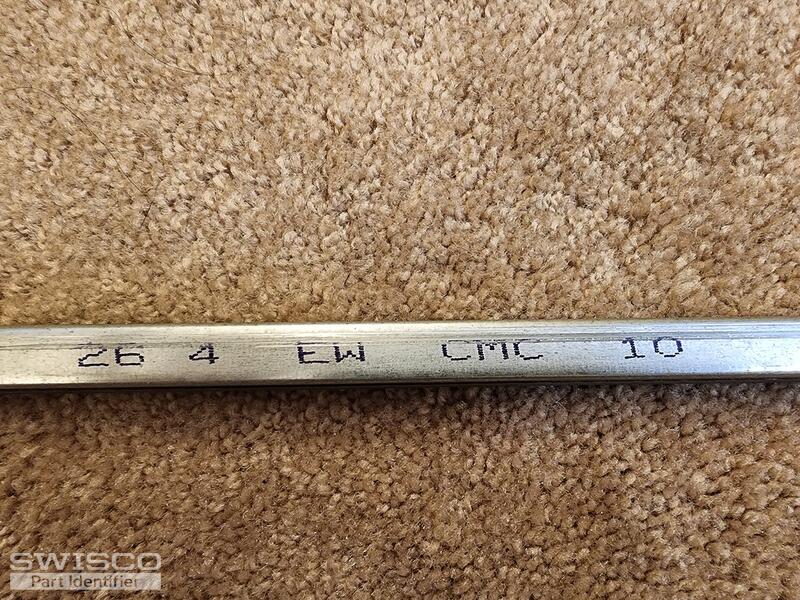

You will need a 27" balance with a 2640 stamp option. Please review and let me know if you have any additional questions.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
