Andersen casement operator & roller assy

A home owner from Scottsdale says:

Hello Tech Support,

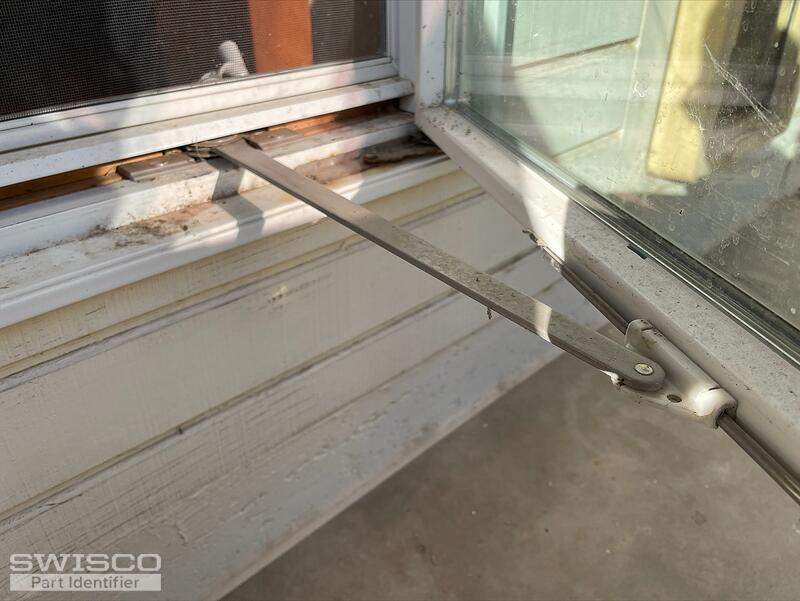

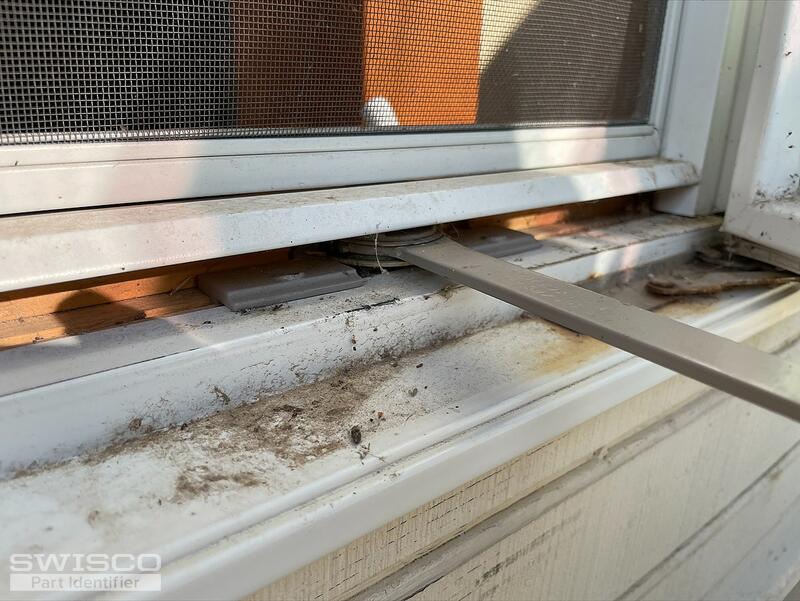

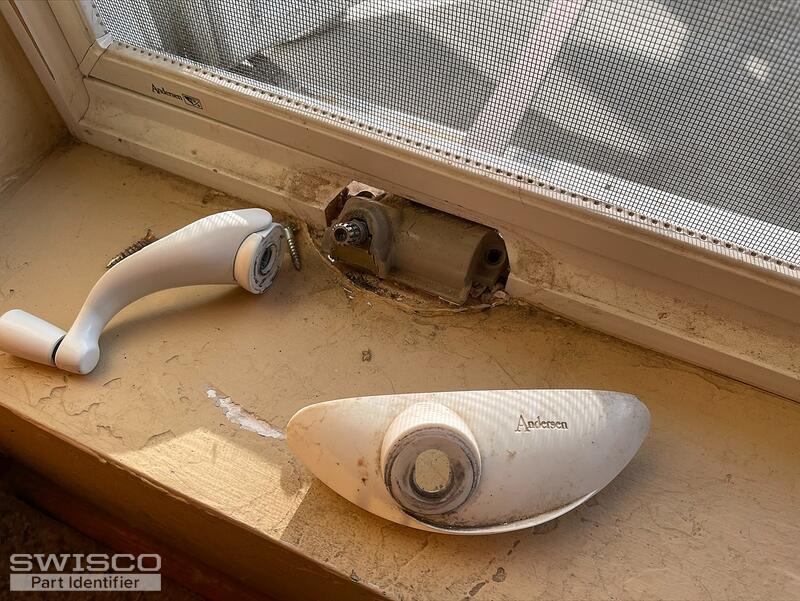

Looking for this Anderson casement window operator. The arm length is ~ 13 1/4 inches from the crank pivot point to the pivot point on the slide shuttle on the window frame.

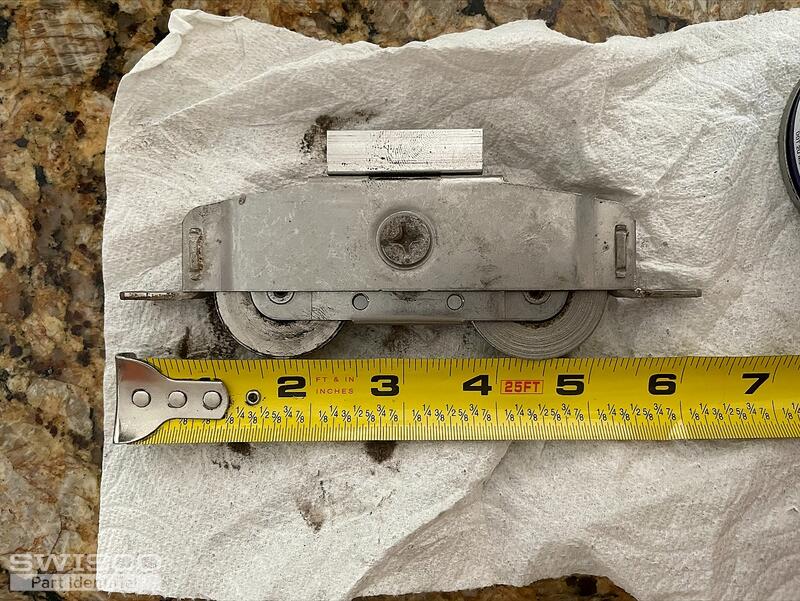

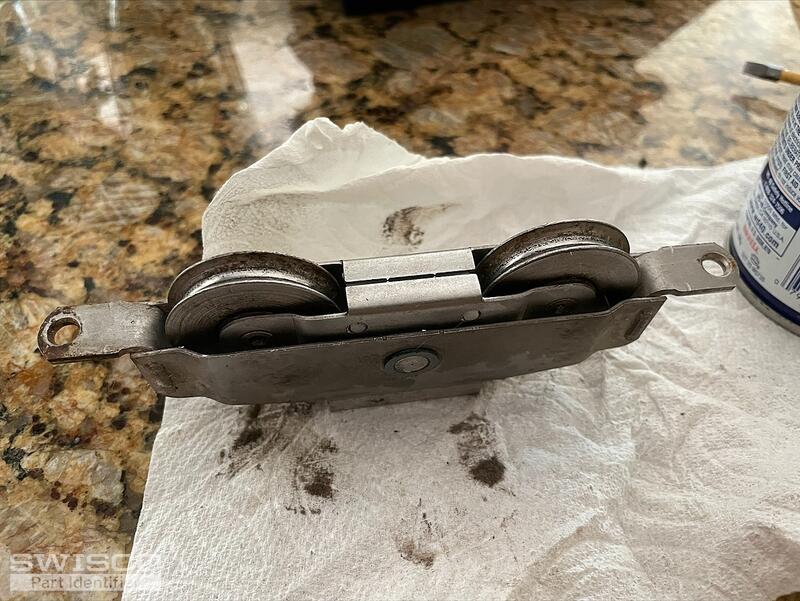

Also looking for replacement patio door roller assembly shown too.

Thanks Paul

Thumbnail of the uploaded file named Image (7).jpeg
Thumbnail of the uploaded file named Image (5).jpeg
Thumbnail of the uploaded file named Image (4).jpeg
Thumbnail of the uploaded file named Image (10).jpeg
Thumbnail of the uploaded file named Image (9).jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I believe the newer Andersen 39-332 operator should be the one that you need to repair your window. However, since yours is an older style, you might need to order the 39-362 adapter plate to install the operator to your window.

As for the roller, you can start by comparing the dimensions shown on the 81-149 product page to yours. Please note that you would need to reuse the top portion attached to the roller shown in your photo. Thanks for posting!

A home owner from Scottsdale says:
Hello Casey - Greatly appreciate the quick response! Thank you....Paul
