Coil Balance and Pivot Shoe

A home owner from Maryland says:
December 28, 2021

Hello,

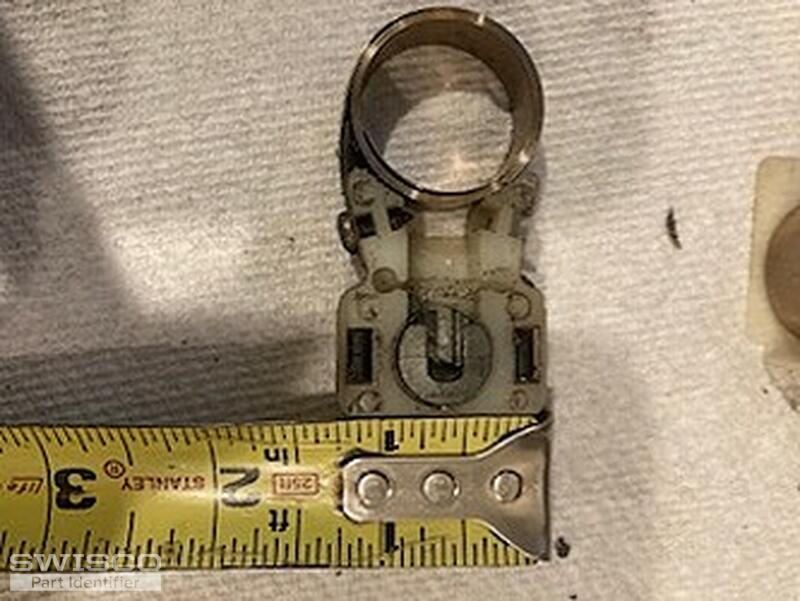

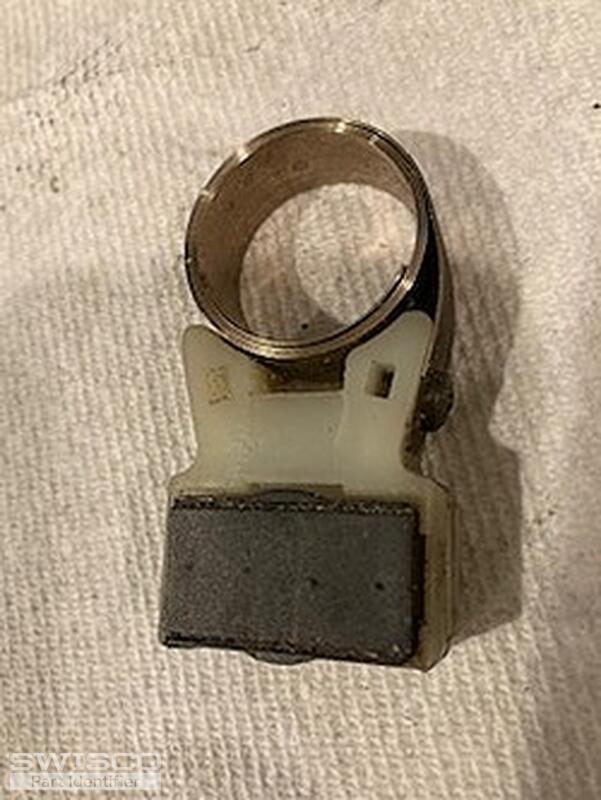

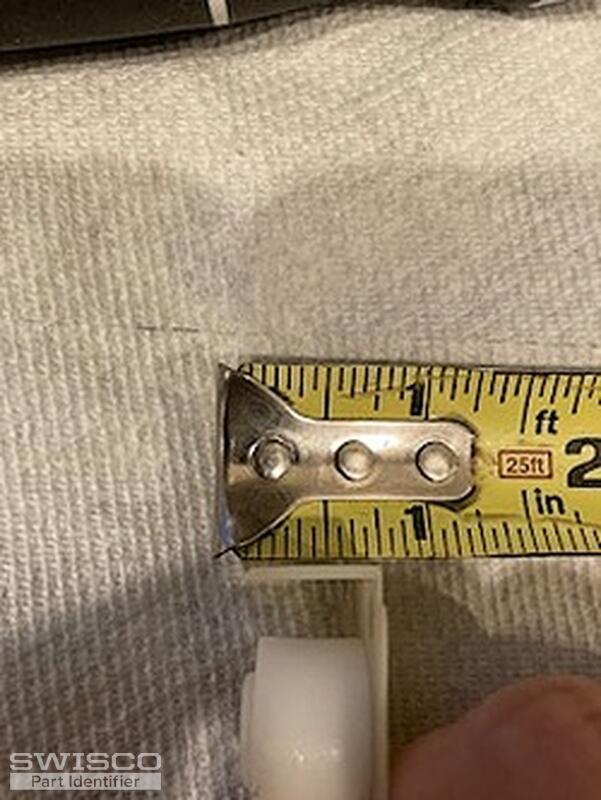

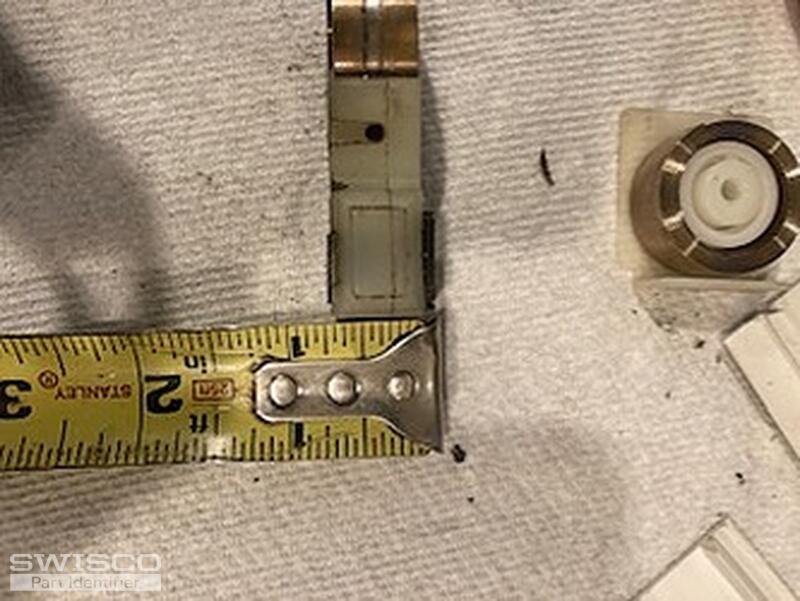

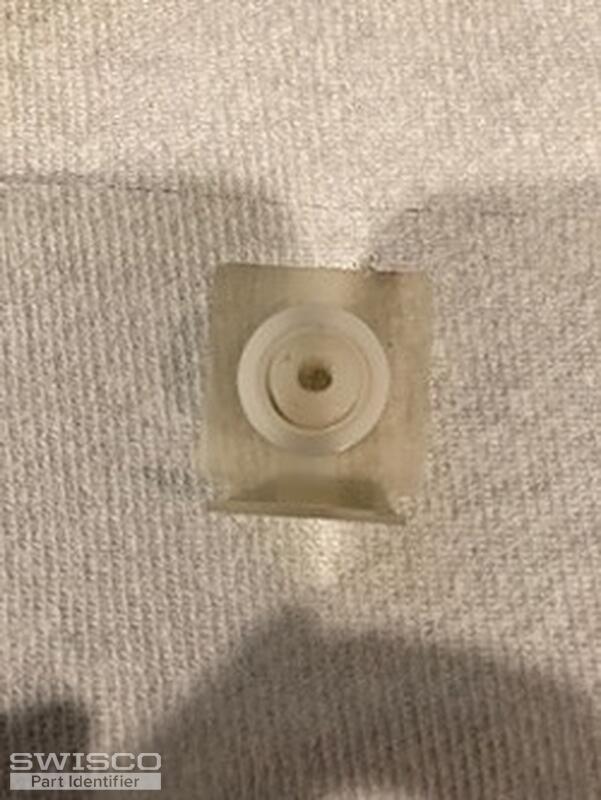

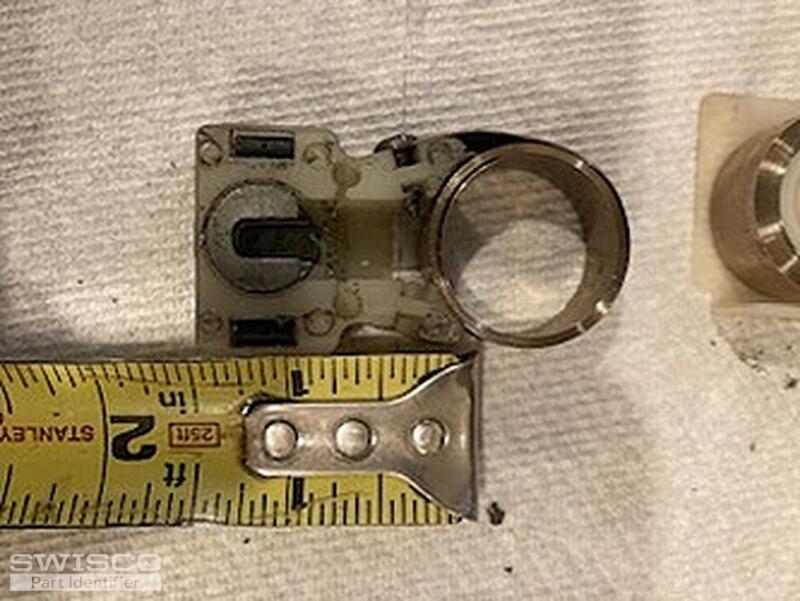

I have an older window where the metal strip connecting the coil balance and pivot shoe broke. I uploaded 5 pictures, but have a few more. If you would like to see the other pictures please let me know the best way to send them to you.

Also, the number 8 was stamped on the metal coil.

Please let me know if you have replacement parts and the cost.

Thank you very much.

Mark

Thumbnail of the uploaded file named IMG_0389.jpg
Thumbnail of the uploaded file named IMG_0380.jpg
Thumbnail of the uploaded file named IMG_0382.jpg
Thumbnail of the uploaded file named IMG_0387.jpg
Thumbnail of the uploaded file named IMG_0388.jpg
A home owner from Maryland says:
December 28, 2021

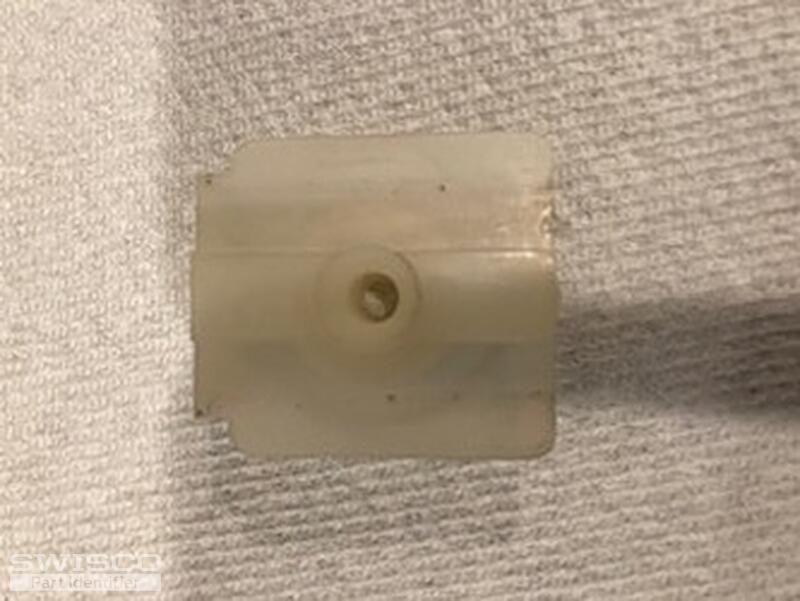

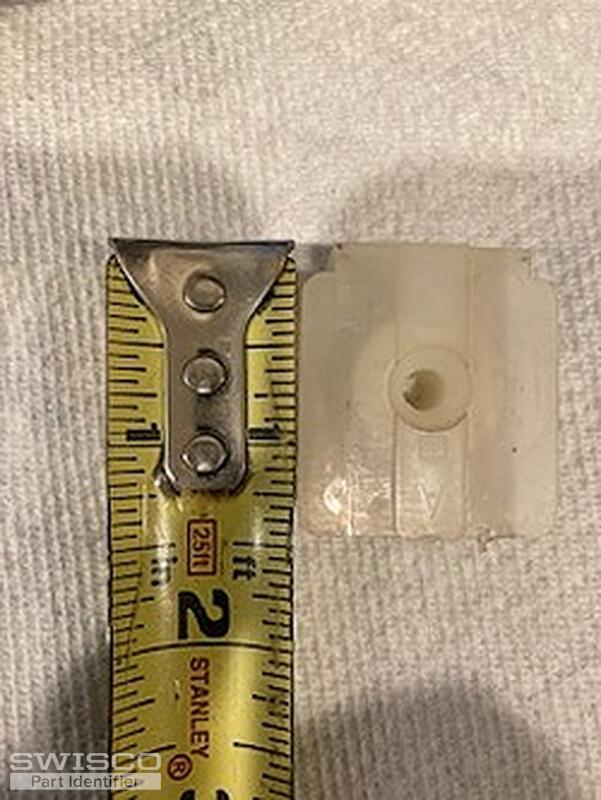

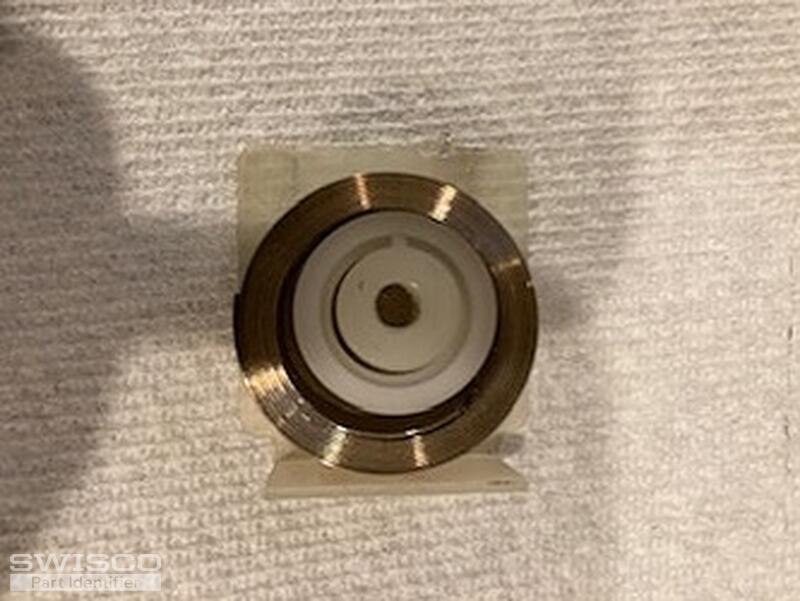

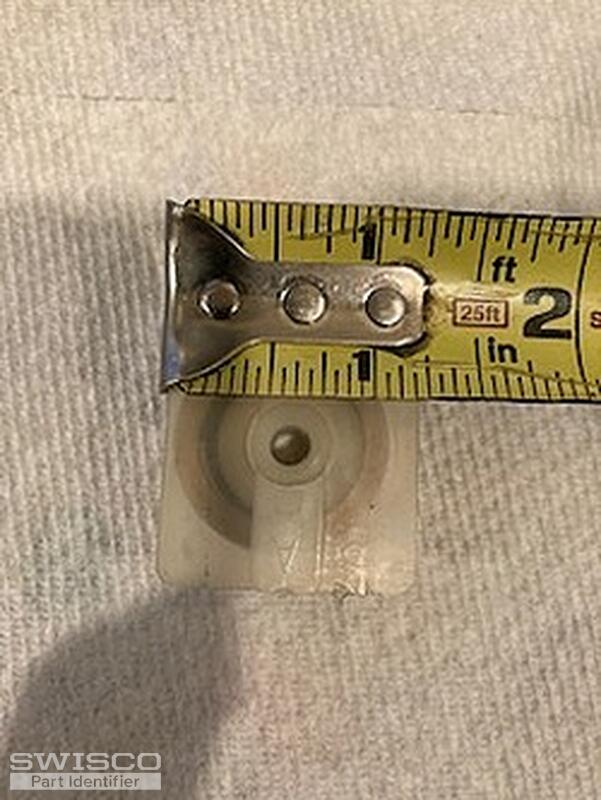

Here are the other photos I mentioned in my first message.

Thanks,

Mark

Thumbnail of the uploaded file named IMG_0383.jpg
Thumbnail of the uploaded file named IMG_0384.jpg
Thumbnail of the uploaded file named IMG_0385.jpg
Thumbnail of the uploaded file named IMG_0386.jpg
Thumbnail of the uploaded file named IMG_0394.jpg
Profile picture of Casey
Casey from SWISCO responded:
December 29, 2021

Hello,

Take a look and compare the 15-175 pivot shoe, which would use the S152-8 coil spring, to your assembly. You'll also find a list of related items on both product pages featuring other compatible parts for this assembly. Thanks for posting!
A home owner from Maryland says:
December 29, 2021

I think pivot shoe will work. Measurements seem to be correct. I will put in and order for 2 pivot shoes and 2 coil springs. If they work I will order a few more to have as replacements in case some of the other coils decided to break.

Thanks for your help and quick response.

Mark
