Need replacement balances

Home Owner from Los Angeles ca

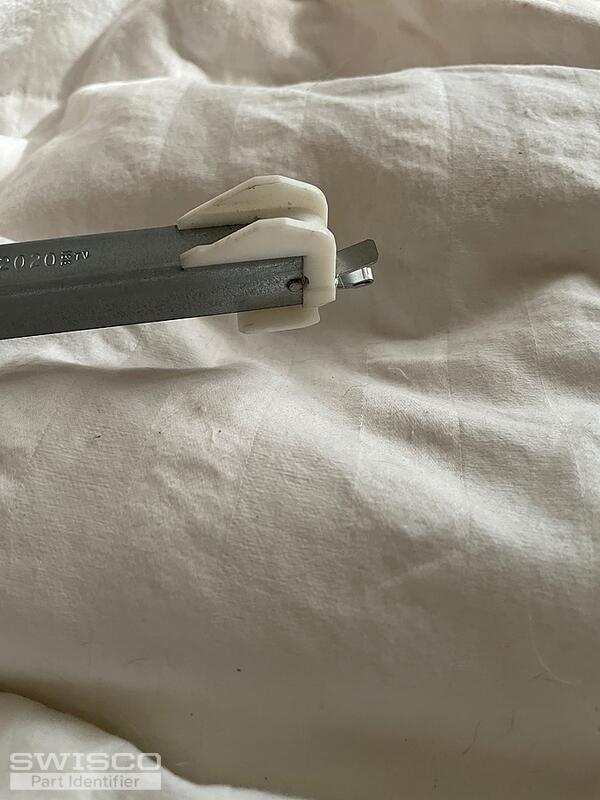

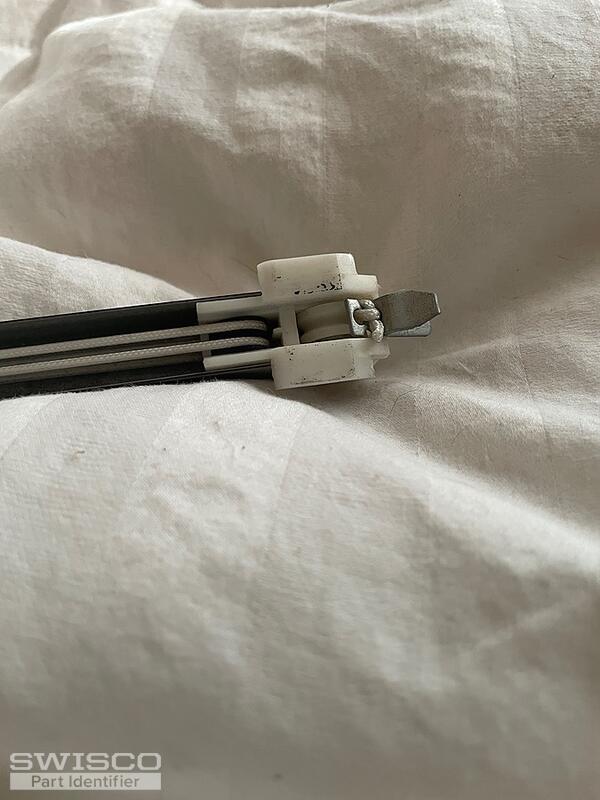

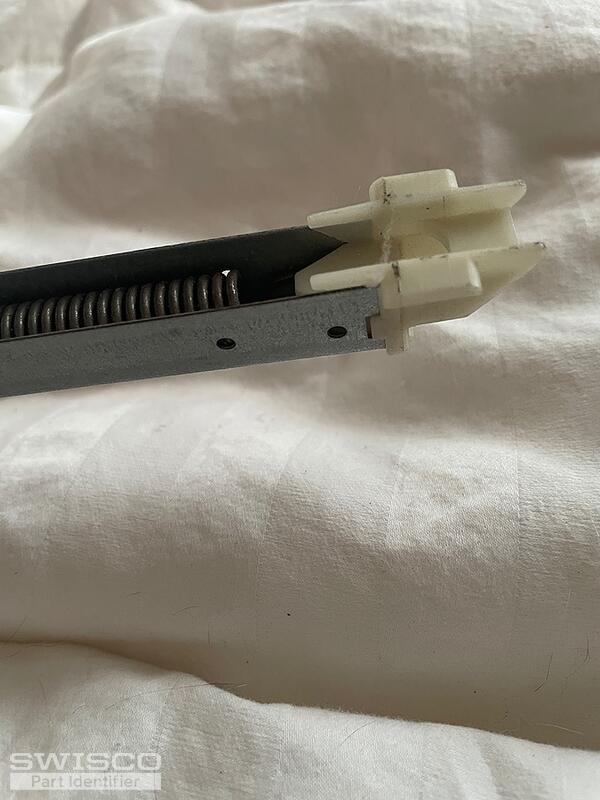

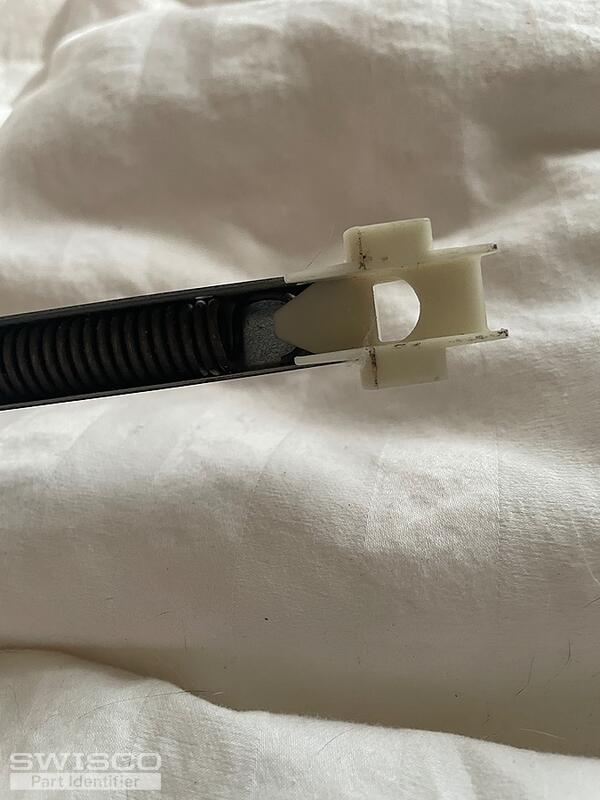

Metal shaft is 21" x 1/2"


I have one shorter window same style but 18"x1/2".

5 user uploaded images
7 Replies
Home Owner from Los Angeles ca
Additional photos
4 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. To get started, we'll need you to confirm the numbers stamped on the metal balance channel, which is difficult to make out in your first photo.

If you have another window with the same balances but smaller, we'll also need to know the strength code stamped on those balances as well. Thank you!

Home Owner from Los Angeles ca

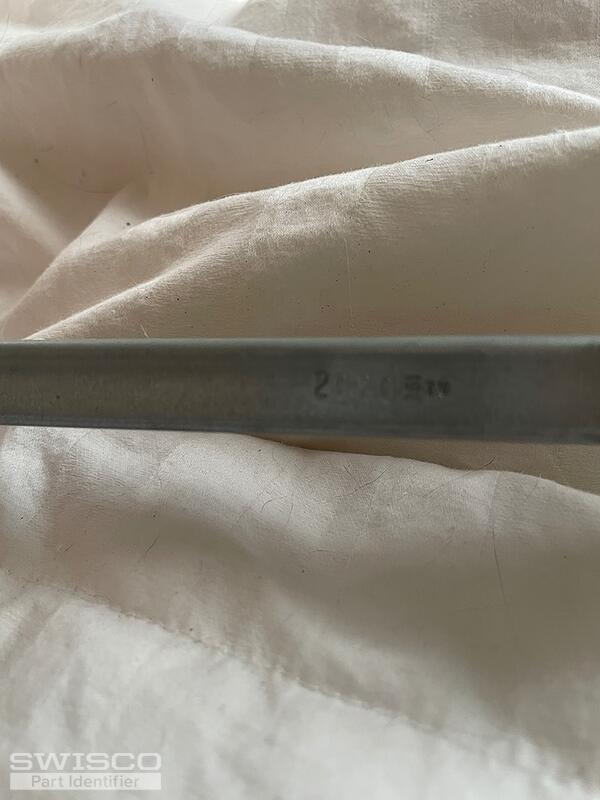

The numbers stamped on the balance are 2020 BSI TV (the letters are really small, but I think that is what they are).

The shorter travel one is 16".

I remeasured the metal shaft and it is actually just 21" NOT 21.5"

I may also need some in 20"

Thank you,

Deb
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Balances like the ones shown in your photos stamped with 2020 should measure 20-7/8" long, not including the end fittings. We'll also need to know the stamp codes on your shorter balance channels and confirm the channel lengths, which should also end in 7/8" increments if they are the same type of balances. Lastly, we'll need to confirm the number of each stamp you need, with the minimum being two of each.

Home Owner from Los Angeles ca
Shorter balance is stamped 430
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us but we'll still need to confirm the metal channel lengths of your balances, which we can only supply in 7/8" increments, as well as the quantities you need for each stamp code. I'd also like to see a photo of the 430 stamp you mentioned, which would not generally correlate to a 16" long balance.
