Need replacement catcher for sliding glass door

Home Owner from Walnut Creek, CA
Jul 7, 2023 3:23 pm

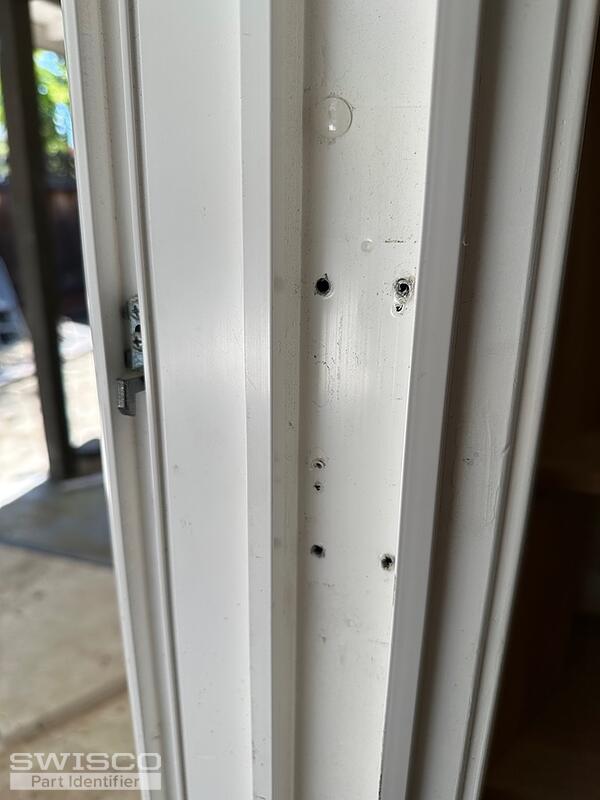

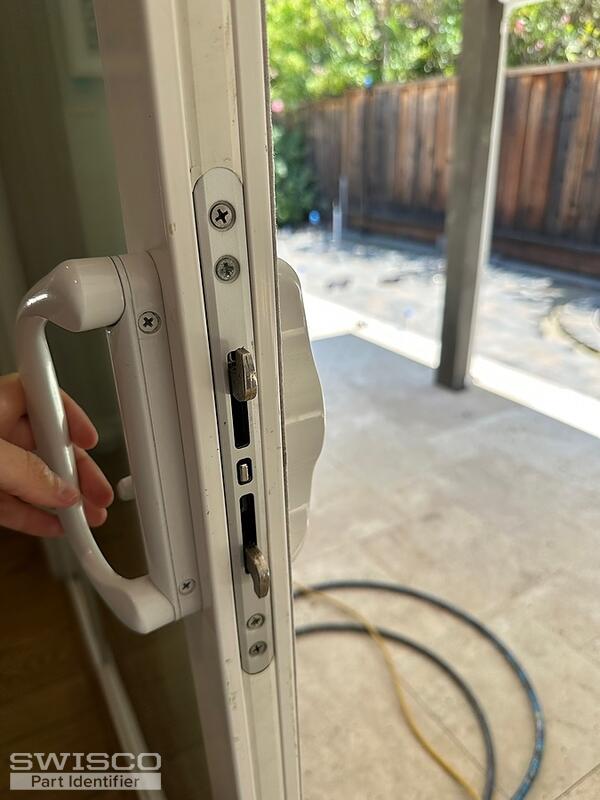

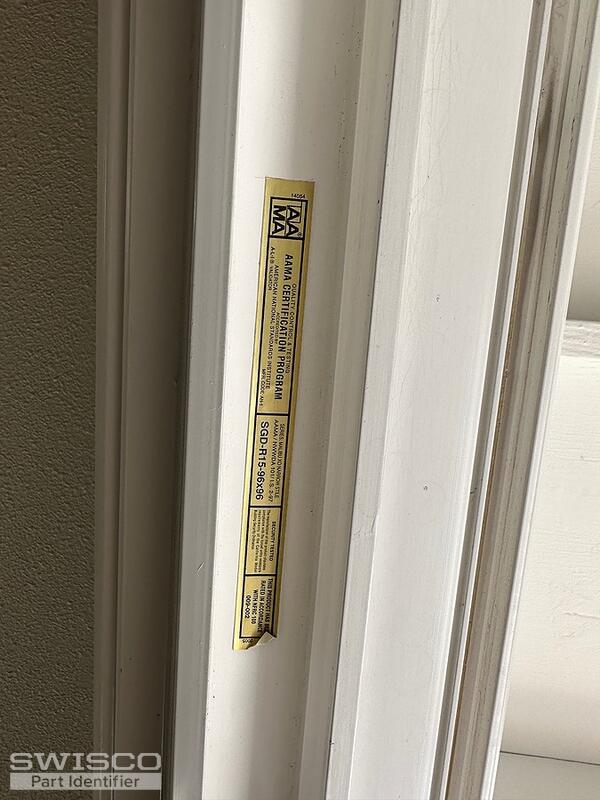

Hi! I need help purchasing the correct replacement catcher for my sliding glass door (series Malibu XO Narrow Stile Model SGD-R15-96x96). The door/handle mechanism is still fully functional, but I need an all-new catcher to receive the door handle/latch. A handyman removed this part when installing a sliding door doggy door and the part was lost.
IMG_5214 IMG_5215 IMG_5216
3 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jul 10, 2023 10:24 am
SWISCO
EXPERT

Hello,

Your mortise lock resembles the 82-238. This assembly is commonly used with the 89-030 and 89-036 strikes. Review the specifications below to see which of these could work for your repair. Thanks for posting!

Alternate image for 82-238
Alternate image for 82-238

Alternate image for 89-030
Alternate image for 89-030

Alternate image for 89-036
Alternate image for 89-036

Additional dimensions for 89-036
Additional dimensions for 89-036

+ Add a Comment
Products and resources found in this discussion
Mortise Style Handle Set, 4-15/16"
Mortise Style Handle Set, 4-15/16"
82-080
$57.70
Double Hook Mortise Lock
Double Hook Mortise Lock
82-238
$39.80
Multi-Point Striker
Multi-Point Striker
89-030
$9.30
Two-Point Adjustable Striker
Two-Point Adjustable Striker
89-036
$14.65
