Need replacement channel balances

A contractor from West Sacramento CA says:
The channel is 27"
Marking stamp on it is:
26 4 IV CMC 8
No other markings found
I need 5 of them please
Thx!!
Thumbnail of the uploaded file named 361E266A-48CA-45AC-AD3F-D7DBD3BECDA2.jpeg
Thumbnail of the uploaded file named 6D04D36D-6D52-430C-9F0C-E3D8C67467E4.jpeg
Thumbnail of the uploaded file named F8313D9D-BA65-40C0-9227-54136F40FB53.jpeg

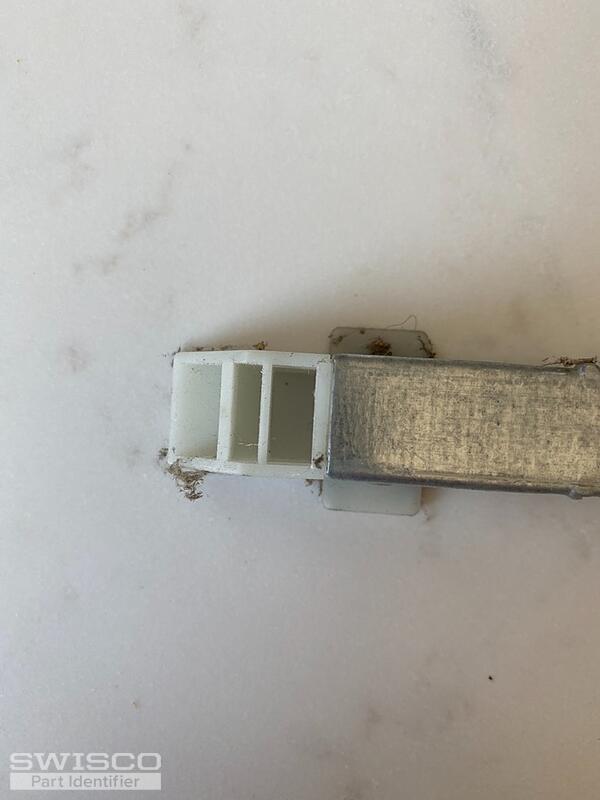

Thumbnail of the uploaded file named 0DA6A678-35FF-4C8C-A4E8-9D14543EB455.jpeg

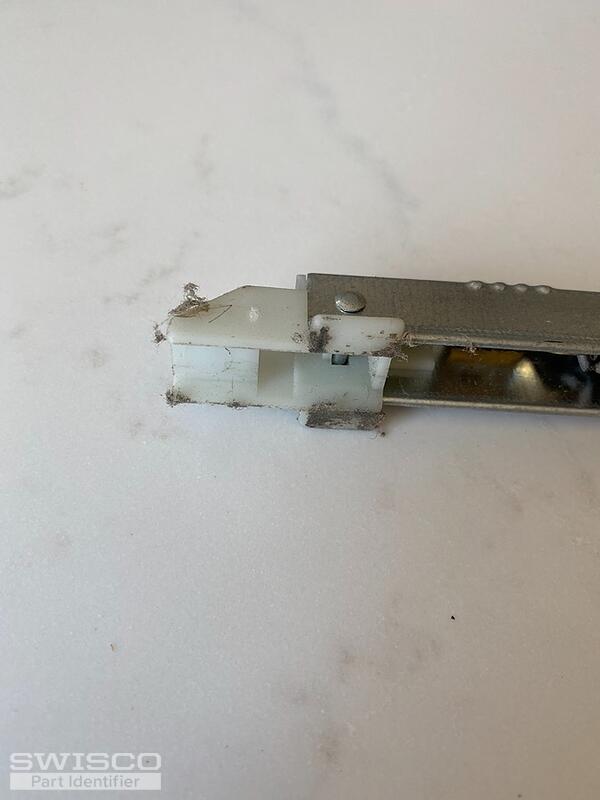

Thumbnail of the uploaded file named A72854DD-4360-4303-9E6E-355EC26623C2.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any further questions just let us know!
