Need replacement door lock and possibly internal latch

Home Owner from Portland, Oregon

Jul 15, 2020 4:18 pm

Hi, I am looking for replacement parts for this sliding door. The doorjam has a part number of SGD-C20, which led me to your site, but I'm still not sure what I need. I hope the pictures help. The locking switch just moves freely, so I'm not sure if I also need the locking mechanism in the door.

3 user uploaded images

6 Replies

Home Owner from Portland, Oregon

Jul 15, 2020 4:30 pm

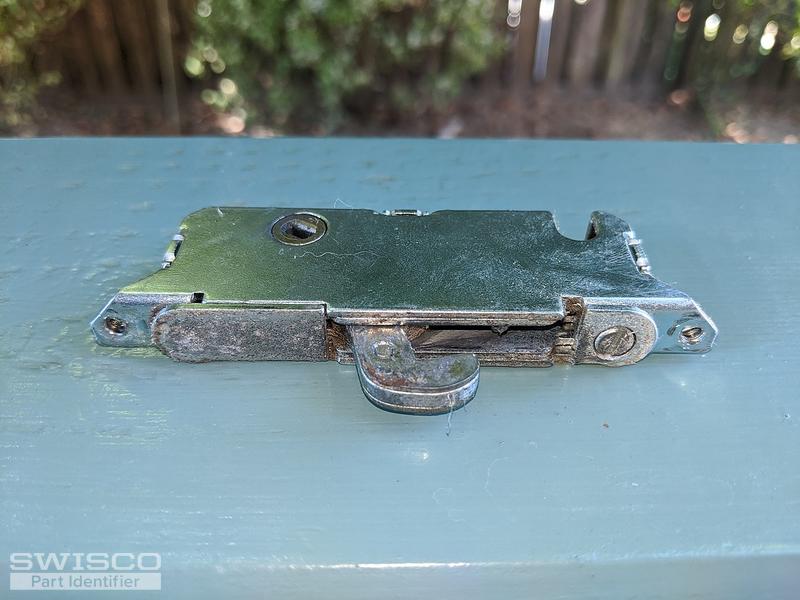

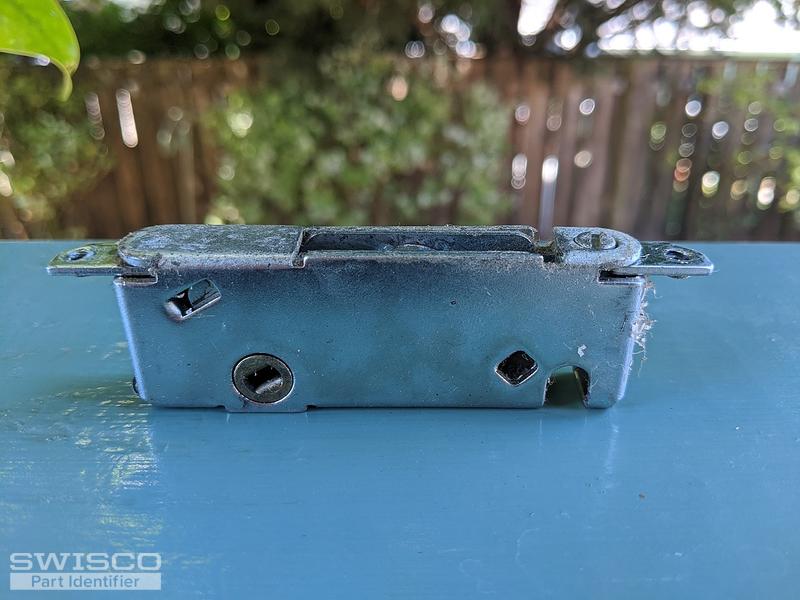

The door lock mechanism is definitely broken too. Looks like maybe a spring is broken as the latch turns and engages with a screwdriver, but the latch doesn't actually extend unless forced/coerced.

2 user uploaded images

Bob from SWISCO

Jul 16, 2020 1:35 pm

If the door's internal mortise lock just fails to interact at all with the thumb lever, you likely need a new one. See our 82-218.

Home Owner from Portland, Oregon

Jul 16, 2020 7:56 pm

That is true, but the handle is shot too. Been taped up, latch sucks on it, kids getting cut on it. If I were to get a new handle assembly, which one would you recommend?

Bob from SWISCO

Jul 17, 2020 8:50 am

A few different handle sets can work with this mortise lock, but check out our 82-030. Look it over and see if you like this style.

Home Owner from Portland, Oregon

Jul 17, 2020 12:15 pm

Thank you so much. Both products ordered.

-- Matt
