Need replacement for latching mechanism door wont lock

Question

Hi I have a Milgard slider from 1994 which just stopped locking
The metal circular piece does not come out when trying to lock door with
The handle latch. Thanks

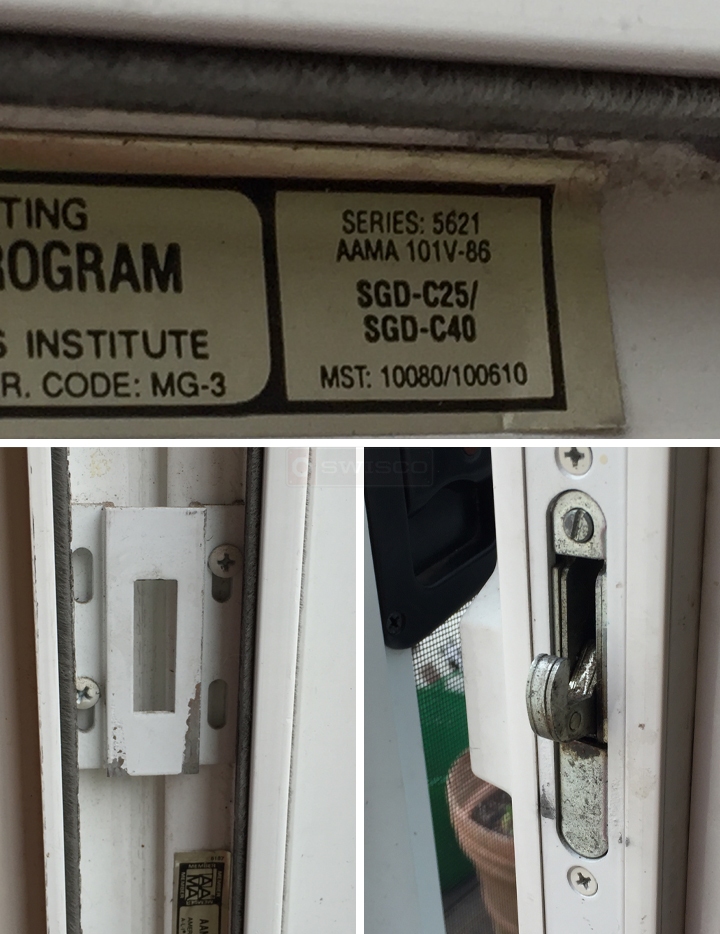

User submitted photos of patio door hardware.

Tom · Accepted Answer

When you say the metal circular piece, do you mean the hook in your third photo? If so, the mortise lock may be the issue. One way to check is to remove the door handle and then try to throw the lock manually with a screw driver. If it still doesn't engage, then the mortise lock is definitely the problem. See our 82-218 for a possible replacement.
