Need replacement handle for casement window

Quick Learner from Cornelius, NC

Apr 5, 2023 10:58 am

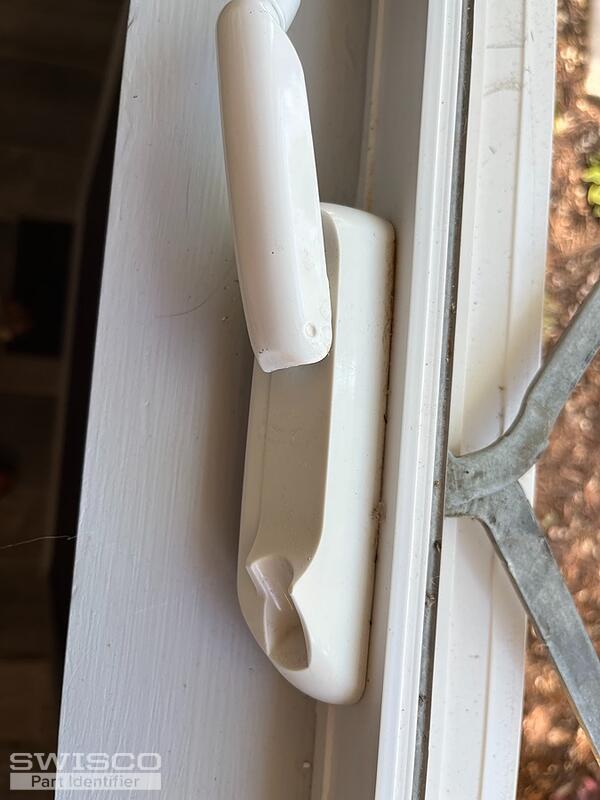

The attached picture shows the type of handle I need. It is a little less than 4 inches long - I don't know the brand of window other then it is not Pella

1 user uploaded images

7 Replies

+ Add a Comment

Casey from SWISCO

Apr 5, 2023 2:42 pm

EXPERT

Hello,

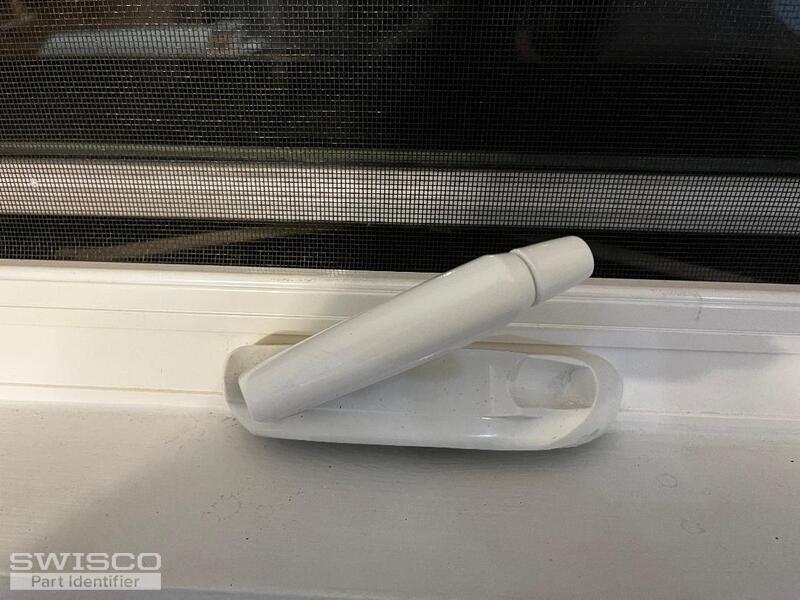

We do carry the 39-375 and 39-376 folding handles with covers. Review the specifications below to see if this could work for your repair. Thanks for posting!

Width measurement

View of the handle extended

Side view

Quick Learner from Cornelius, NC

Apr 7, 2023 9:55 am

I have taken measurements and they are slightly different
Width is 5 3/4 inches
Extended is 5 3/4 inches
Side view - left side is 2 1/16 inches
Side view - bottom is 1 1/2 inches

Do you think these are close enough, or is there a better fitting one?

Casey from SWISCO

Apr 7, 2023 10:05 am

EXPERT

Thanks for getting back to us. If you could remove the screen from the window and show us a top-down photo of the entire operator assembly so that the arms that move the sash are fully visible, that will help us confirm of our handle and cover kits would be compatible.

Quick Learner from Cornelius, NC

Apr 12, 2023 1:12 pm

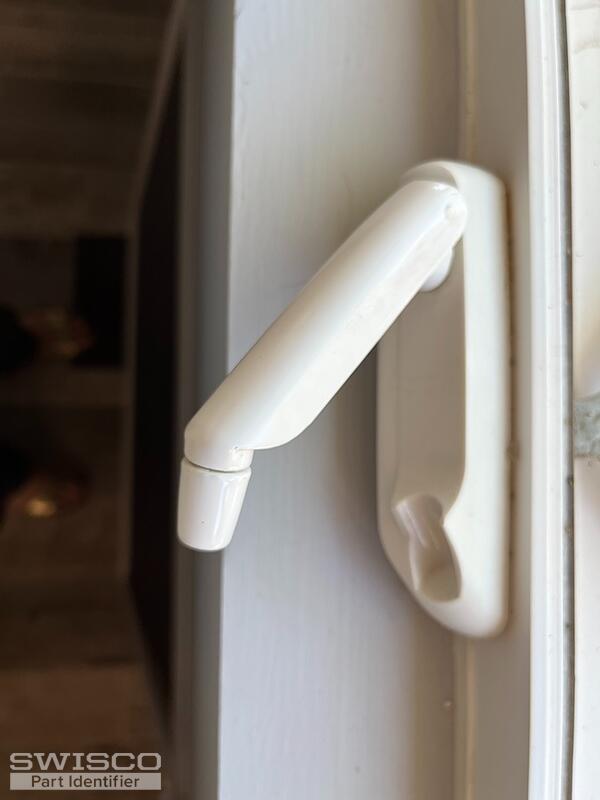

Hi - here are the top down photos.

3 user uploaded images

Casey from SWISCO

Apr 12, 2023 1:56 pm

EXPERT

Thanks for getting back to us but the metal arms that connect to the sash are only partially visible in your new photos. If you could show us the entire assembly, we can go from there.

Quick Learner from Cornelius, NC

Apr 12, 2023 4:42 pm

Ok here is a picture with the arms extended

There are some numbers on the arms
The one closest to the handle - S-149-455
The one farthest from the handle = S-108-61

1 user uploaded images

Casey from SWISCO

Apr 13, 2023 12:22 pm

EXPERT

Take a look and compare the dimensions of our 39-433C Encore narrow awning operator to yours. If the specifications match yours, see the 39-375 handle and cover kit that is compatible with this operator assembly.
