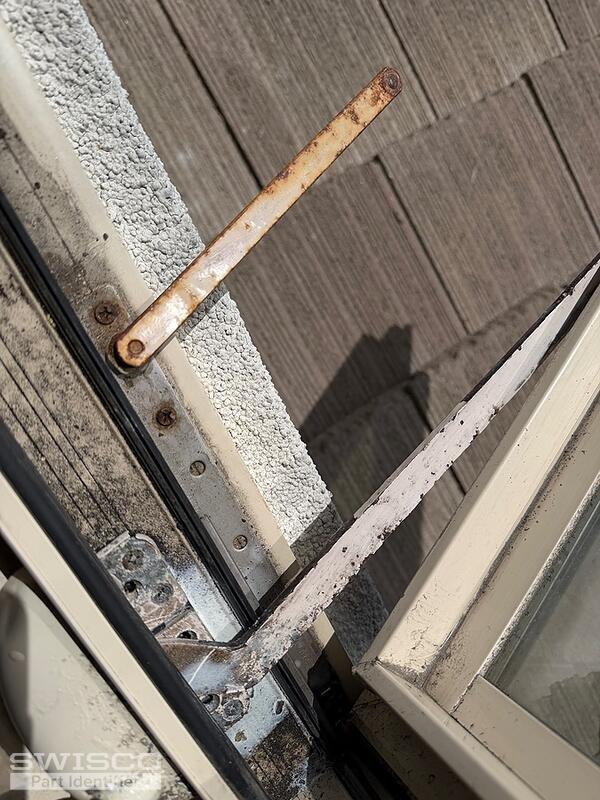

Need replacement hinges for crank windows

Thanks for posting! Are you looking to replace the window hinges at the top and bottom of the window? If so, I'll need to know the measurement for the length of the track installed to the window sill.

The window crank appears to be a match for the 39-400 Roto Single Arm Operator. Carefully compare the specifications below to determine if this is the correct replacement.

This operator is often used with the 39-581 (surface-mount) window track. However, if the track is in good, working condition you may only need the 39-541 track slider.

The compatible handle is the 39-232 Roto Folding Crank Handle.

Alternate image for 39-400

Happy to help! Please don't hesitate to reach out with any additional questions you might have.

Have a great day.

Sure! I'll just need to know the length of the track, installed to the window sill, to determine a replacement match.

Please let me know if you have any questions.

Hello,

You can use either the 36-048 or the 36-004-10 (stainless steel) to replace your window balance. To determine which of these is the best fit, carefully look over both of their dimensions.

You'll need to replace both the top and bottom hinges to ensure they are a match. Both sets can be used in right and left handed applications.

Detail of 36-048

DImensions for 36-004-10

The 75-034 Adjustable Hinge Wrench is used for the 36-048 2-Bar Hinge. The 36-004-10, while similar, does not have an adjustment pin.

To adjust the 36-004-10, you'll need to turn the screw shown on the black guide.

Please let me know if you have any additional questions!
