Need replacement parts for window slides

Home Owner from Folsom, CA

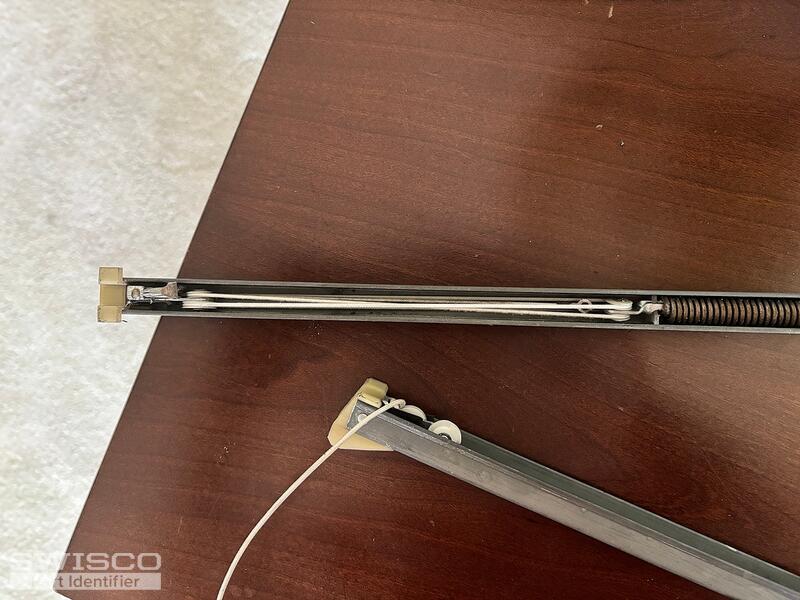

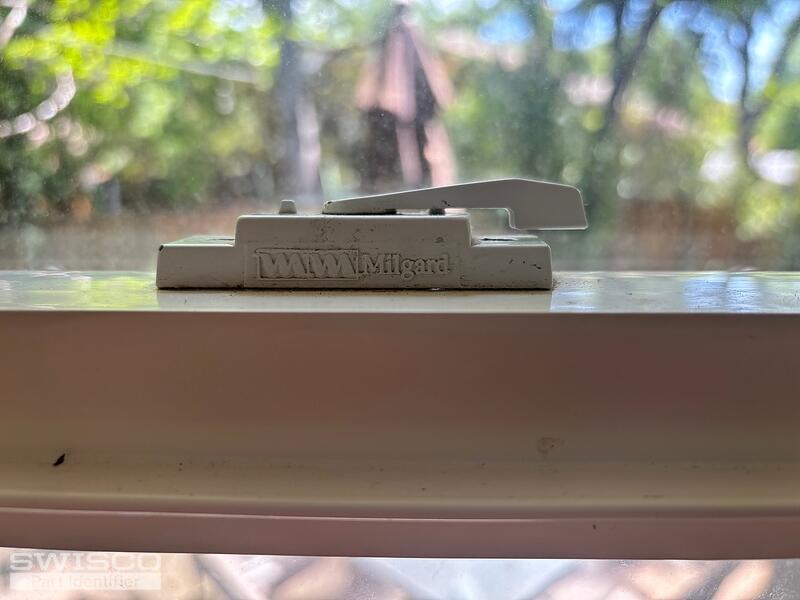

The channels are 27" from end to end.  I have 6 of these that I need to replace.  Each one is the same as the other.  The windows are Milguard I believe - see latch on the top in picture.  If i can get the right part, I can install them myself.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! The window balance you have can be replaced with either the S380-27 or the S385-27. To determine which of these is the correct replacement, you'll need to confirm your shoe's depth.

The 2630 stamp should work for the window but it would be a good idea to double check that your sash weighs between 13 to 19lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
