Need replacement pivot bars
Quick Learner from Manchester MD
May 22, 2024 4:21 pm

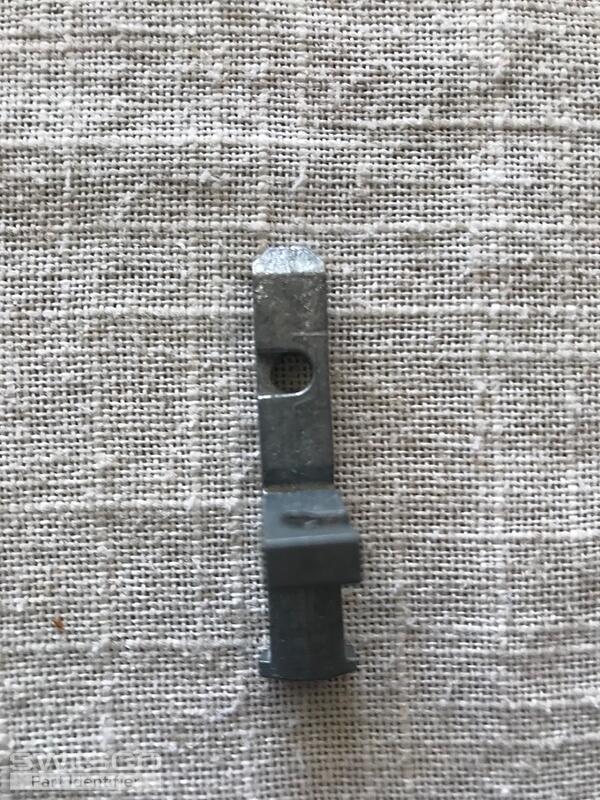

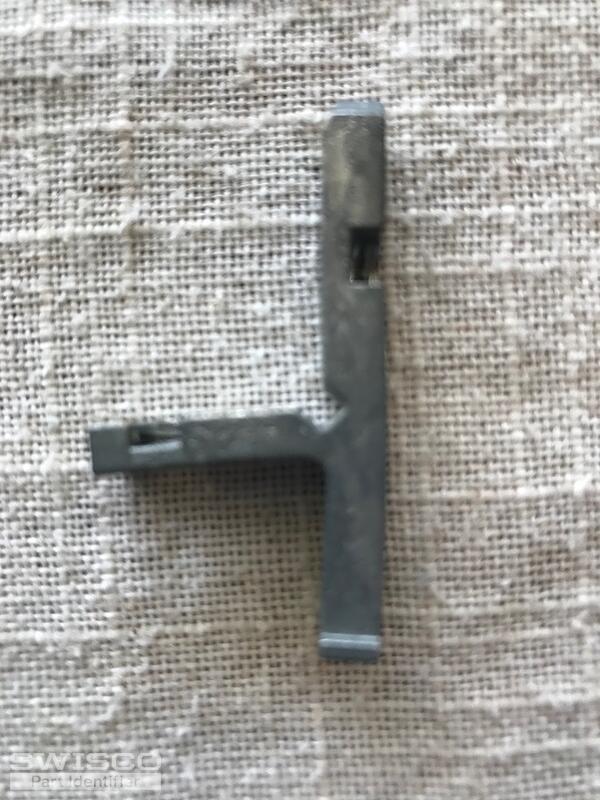

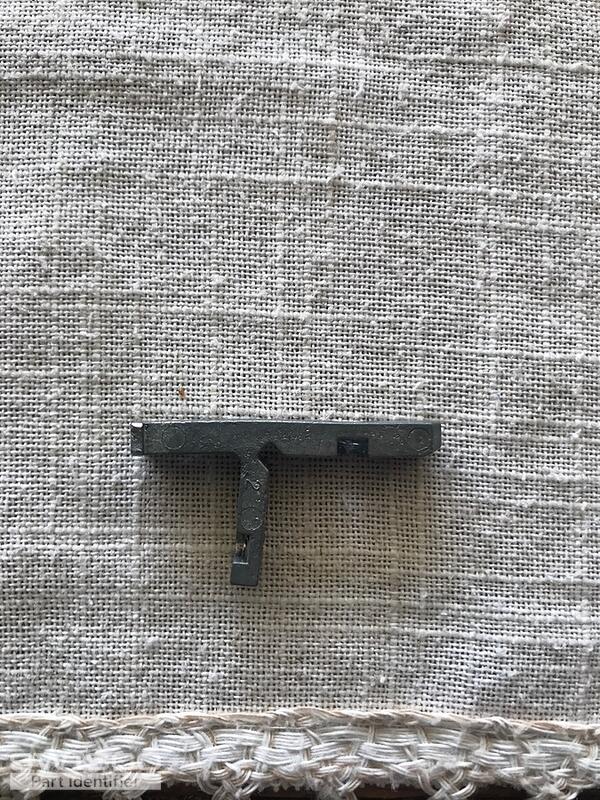

Pivot bar off a vinyl tilt in window. Long side is 13/4 in long. Small side is 11/16 long
3 user uploaded images
5 Replies
Casey from SWISCO
May 28, 2024 1:13 pm
Hello,
Your exact pivot bar is no longer made but our 26-446 may be an updated version. To confirm if this will work as a replacement, carefully review the dimensions below.
Dimensions for 26-446
Since your pivot bar has a t-shaped end, the existing shoe may not be compatible with the circular disk at the end of our replacement. If you're unsure, we'll need to see a photo of your pivot shoe. Thank you!
Quick Learner from Manchester MD
May 29, 2024 9:25 am
The measures are all the same except the distance from the circular disc to the center of the hole is 1 3/16 instead of 1 15/16. Could I make it work by drilling a different screw hole?
Casey from SWISCO
May 29, 2024 9:43 am
You may still be able to adapt the 26-446 to work but making a new installation hole would most likely be necessary. If you decide to give it a try, be careful not to hit the glass in the window sash.
Quick Learner from Manchester MD
May 29, 2024 9:52 am
Thank you. I'm gonna give it a try
