Need replacement wheels

Start a new Discussion

Contractor from honolulu

May 15, 2015 7:39 am

Replacement for glass sliding doors

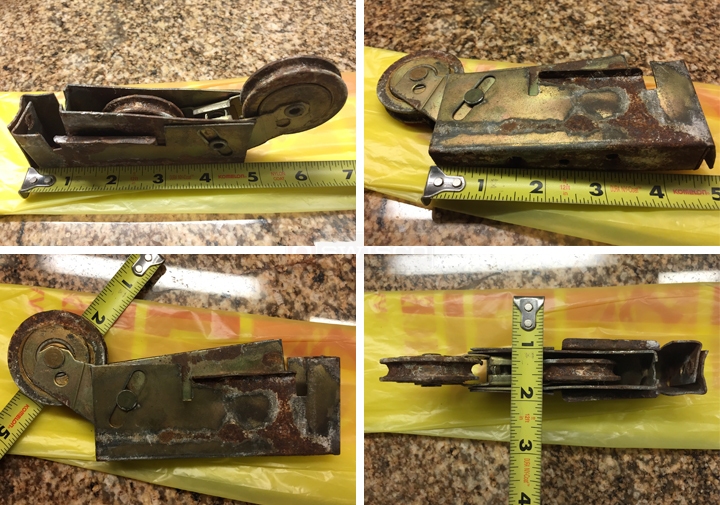

User submitted photos of a patio door roller.

7 Replies

Paul from SWISCO

May 15, 2015 1:40 pm

Thanks for posting. These pictures are very helpful, but the only thing I'm not sure about is the height. Our 81-051 is 1-3/4" tall, while the 81-052 is 1-1/2" tall. Could either of these work?

Quick Learner

May 15, 2015 2:39 pm

The housing height is 1 3/4"

Paul from SWISCO

May 15, 2015 2:56 pm

Then how about our 81-051? Would that work for you?

Quick Learner

May 16, 2015 12:46 am

Thank you
Will order.

Contractor

May 19, 2015 3:41 am

Just to confirm the existing hardware is approx.. 1 3/4-1 7/8" in height.
The thickness is 7/8, length 4 1/2"
The wheels is 1 13/16"

The 81-051 wheels is undersize in contrast to the existing. Will this be an issue?

Paul from SWISCO

May 19, 2015 4:05 pm

I have not been able to find our 81-051 with a larger wheel, but I feel you should be able to adjust the roller to compensate for the difference.
