Need replacement wheels. Possible 84-036 or 84-007

Handy Person from Saddle Brook NJ

Good morning,  I was comparing the 2 different model #s. 84-036 which the plastic mount is 1/2" width. Compare to 84-007 with mount is 3/8" width.   My wheel is 1 1/8" diameter and wheel is 1/4" width and concave is 3/16" width, mounting plastic to frame is 1/2".  There are no markings on door or hardware or sliding screen door. The are 2 wheels on bottom and 2 wheels on top. Door approximately 40 years. Any suggestions please.  Thank you   Marc

Thanks again

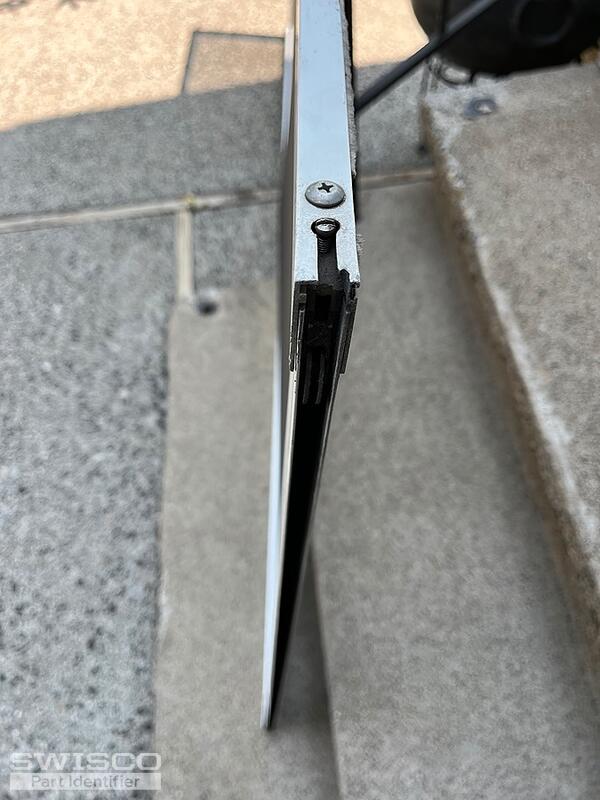

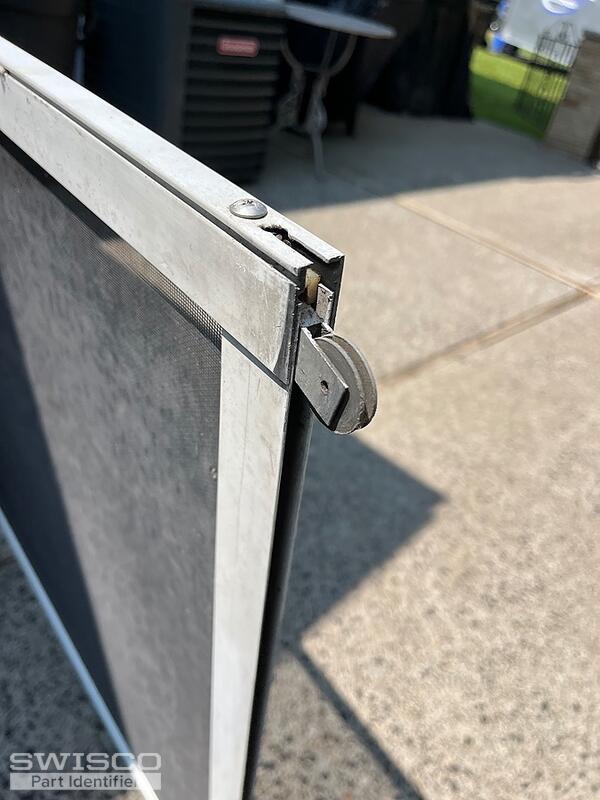

5 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

The difference between the 84-007 and 84-036 is the black nylon housing. The thickness of the 84-007 nylon housing is 3/8" and 1/2" for the 84-036. If your housing measures 1/2" thick, you'd need the 84-036. Thanks for posting.

Alternate image for 84-007
Alternate image for 84-007

Alternate image for 84-036
Alternate image for 84-036
