Need replacement window channel balance

Quick Learner from Seattle, WA

May 4, 2020 6:52 pm

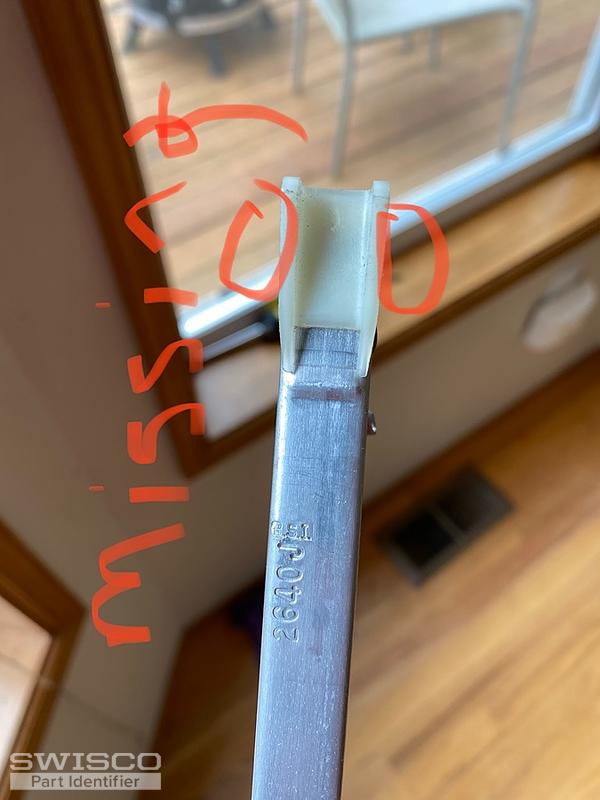

Can't determine which is the correct replacement part. The feet at the bottom of the channel balance have broken off. The channel is 1/2" wide and 27" long.

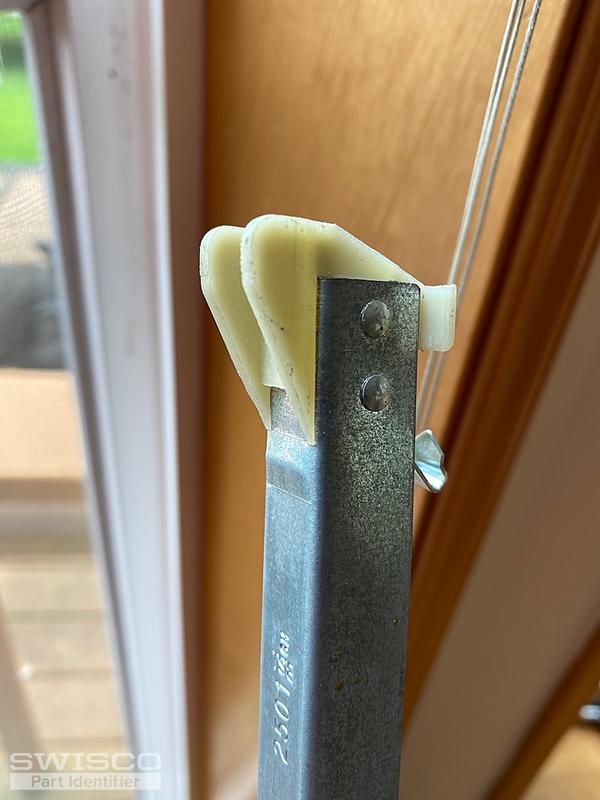

I've attached close-ups of the top and bottom of the part.

Thanks for your help.

Bruce

4 user uploaded images

4 Replies

Casey from SWISCO

May 7, 2020 8:32 am

Hi Bruce,

Your balance attachments look like they're in good condition and that the bottom attachment may never have had wings. I recommend checking another balance to compare. If they all look the same, I would recommend our S395-27 channel balance as a replacement. Thank you!

Casey from SWISCO

May 7, 2020 11:00 am

Thank you for confirming. With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to choose a spring strength option based on the stamp printed on your metal channel.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Seattle, WA

May 7, 2020 11:49 am

Casey,

Thanks for your response! I checked the other windows and the balances definitely have wings. I also found broken wing pieces when I removed the balance. Here's a photo of the identical balance with undamaged wings. Please let me know what part would be a good replacement. Thanks!

1 user uploaded image
