Need replacement window latches : SWISCO.com

Quick Learner

Mar 20, 2025 11:49 am

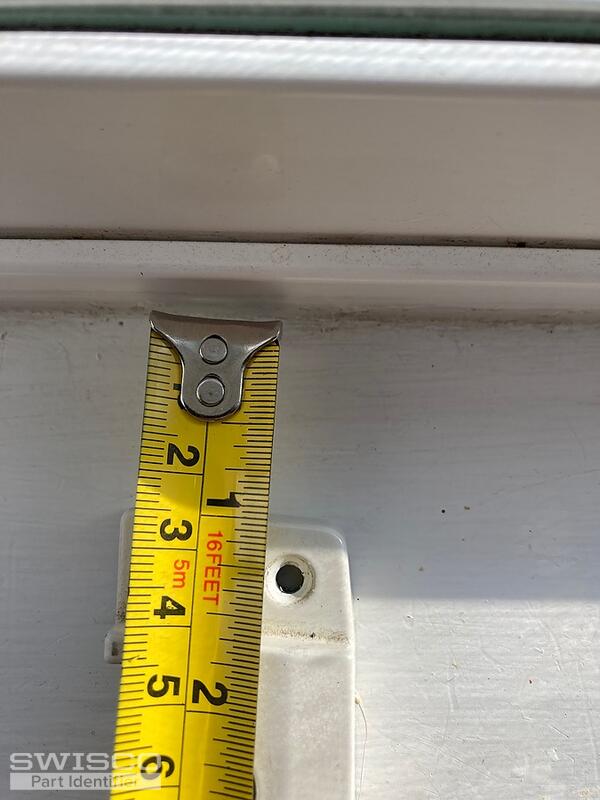

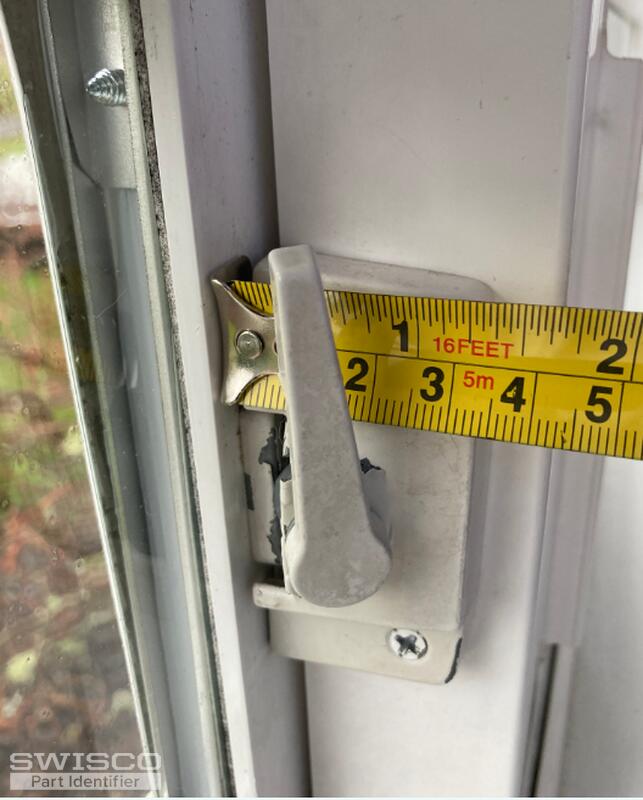

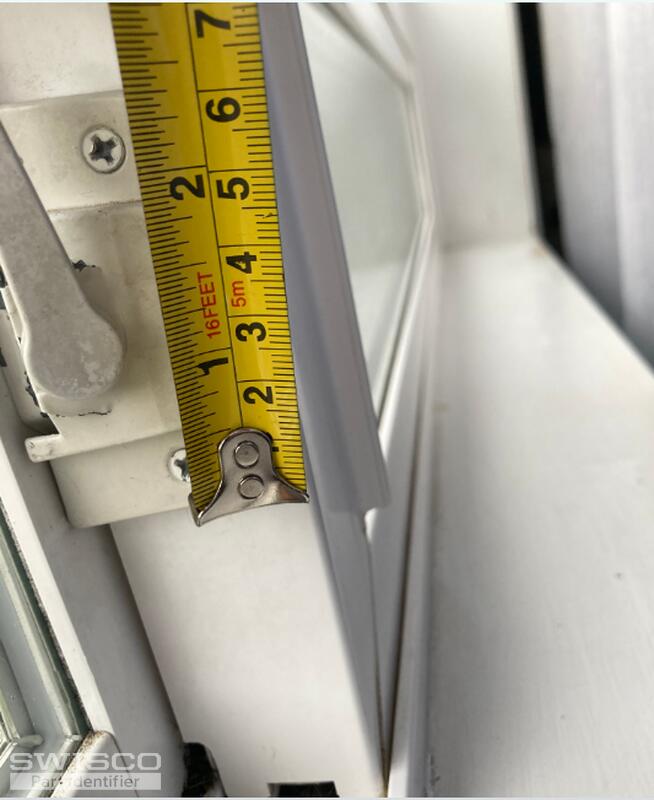

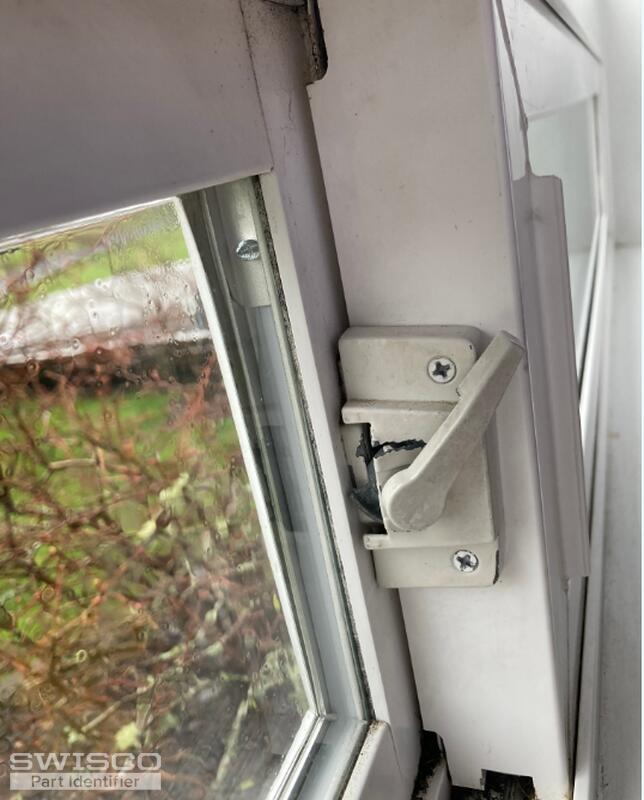

Hi, hoping you can help me identify what latch I’m needing.

I’m sorry - these images may be quite large- can try to reduce if needed.
I keep ordering the wrong size, so I hope this helps.

I’ve ordered a latch from you within the last year

5 user uploaded images

7 Replies

Quick Learner

Mar 20, 2025 11:51 am

Additional photos

1 user uploaded image

Emily from SWISCO

Mar 21, 2025 3:33 pm

Hi there!

Thanks for reaching out to us. We're happy to look into this. Can you write out the installation hole center spacing? We'd also like you to write out the backset which is measured from the center of the installation hole to the top edge of the lock. I can't promise we'll have a suitable replacement but that should help confirm.

Thank you!

Quick Learner

Mar 25, 2025 8:12 pm

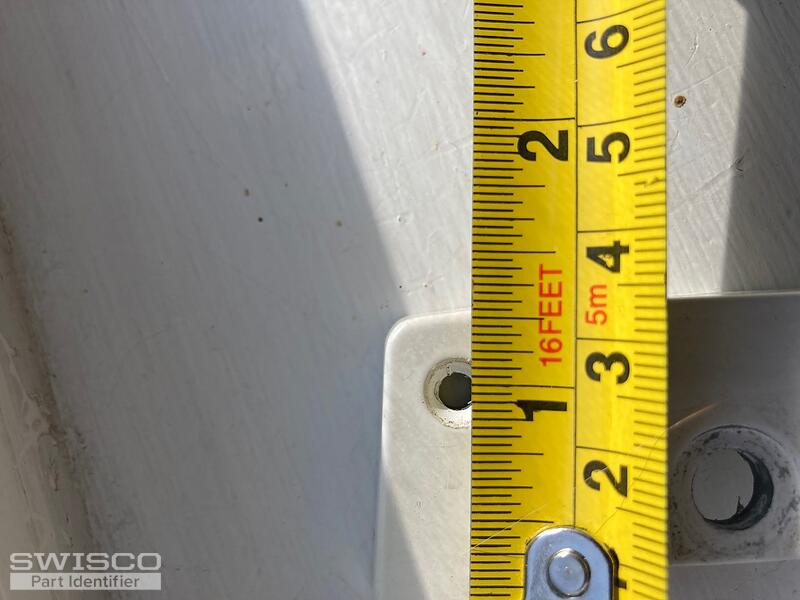

I'm not sure if I'm showing what you asked for... but hopefully, it is. ? thank you!

2 user uploaded images

Emily from SWISCO

Mar 26, 2025 8:31 am

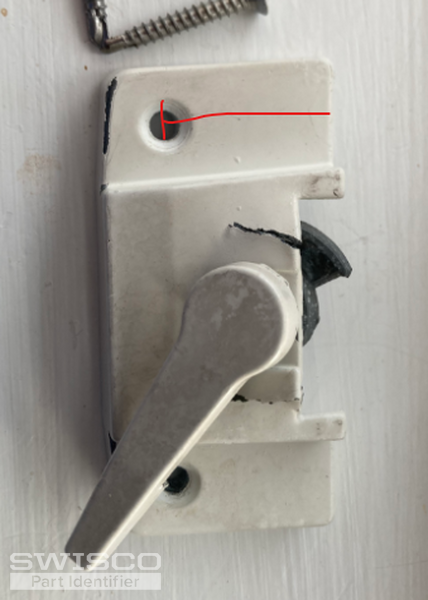

I'm afraid these photos don't show the backset, but take a look at the image below as an example of how to measure it. The 11/16" measurement is the backset.

Dimensions for 90-278

Quick Learner

Apr 2, 2025 10:06 pm

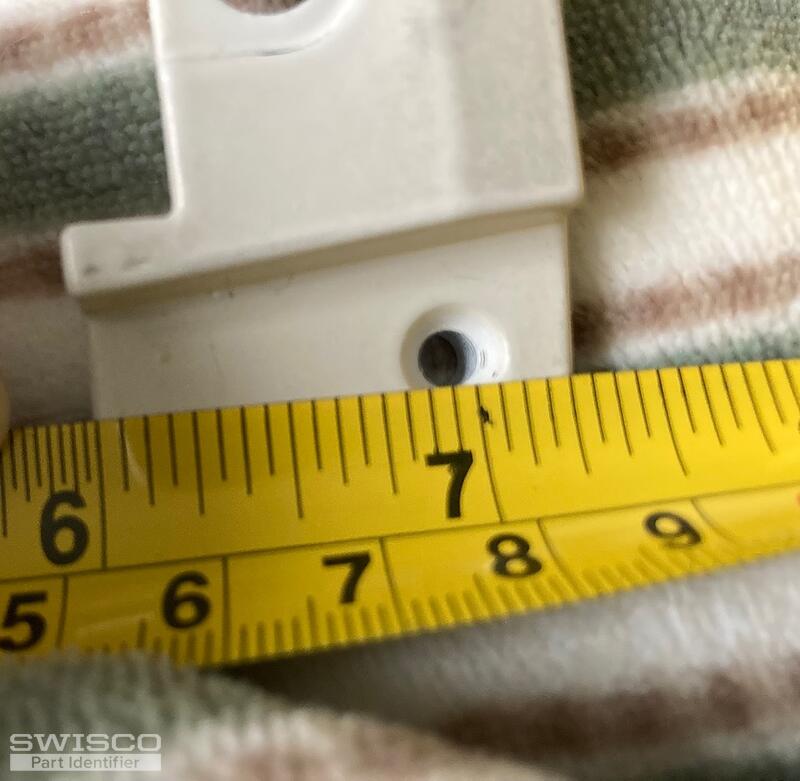

Wow, I wasn't even close. Thanks for your patience. Looks like 15/16 if I'm reading this correctly.

1 user uploaded image

Emily from SWISCO

Apr 3, 2025 8:40 am

Thank you kindly! Unfortunately, we don't sell a sash lock with this kind of backset. I'm afraid it's too big. I sincerely apologize that we can't be of help with this repair; please let us know if you have any other hardware questions.
