Need replacement window part item numbers, etc identified.

A quick learner from Virginia says:

May 14, 2022

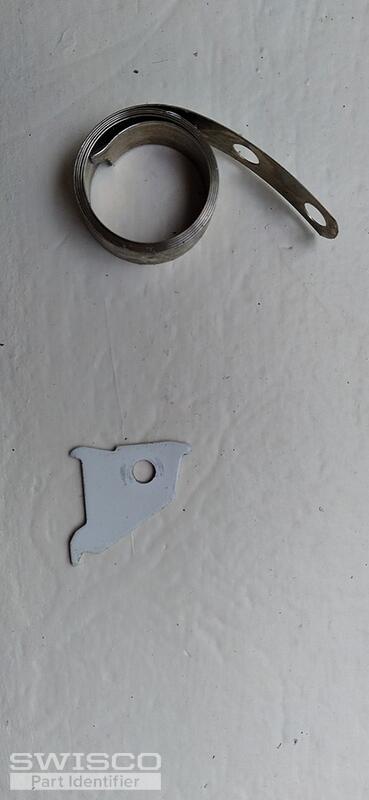

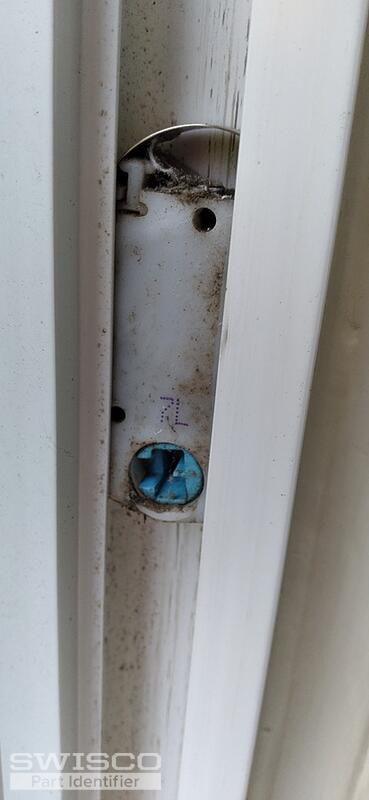

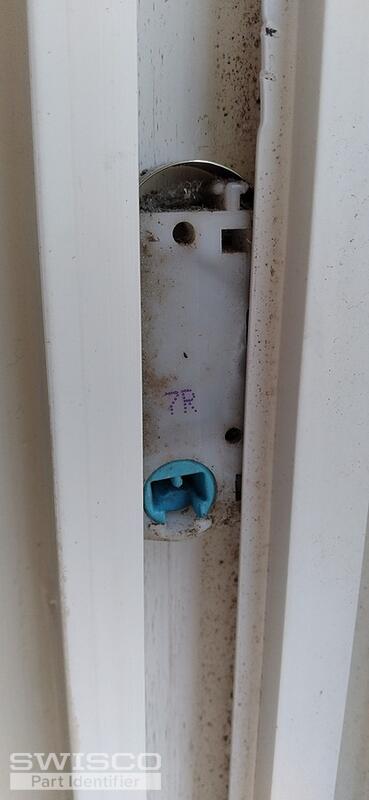

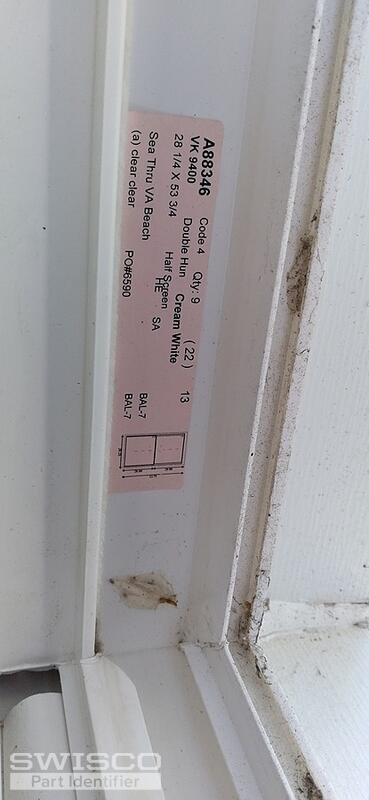

Both pieces(still in the window) say either 7L or 7R. There is the following info on the broken coil metal 7HH. Info on the window sticker in image uploaded. Window will no longer open, too heavy, need to know what replacement pieces to buy. Need to replace the coil balance on both sides.

Thumbnail of the uploaded file named 20220514_151305.jpg

Thumbnail of the uploaded file named 20220514_151317.jpg

Thumbnail of the uploaded file named 20220514_151333.jpg

Thumbnail of the uploaded file named 20220514_151311.jpg

Lauren from SWISCO responded:

May 17, 2022

Hello, thank you for posting,

Your assembly resembles the 15-087 pivot shoe that is compatible with the Series 180 coil springs. Please review the dimensions to confirm a good fit. Let me know if you have any additional questions.

Detail of 15-087

A quick learner from Virginia says:

May 24, 2022

Thank you for the help. Purchased coil balance, shipped fast, installed and done. I was seriously looking to replace my window, I'd been told you can't replace these window parts at every hardware store. I found your website and fixed my window myself for $14-. You saved me hundreds- thank you!

Lauren from SWISCO responded:

May 24, 2022

Great to hear! We are happy that we were able to assist with your repair. Please let us know if you have any future hardware questions.
