Need replacements for a 19 - 20 year old Tilt Vinyl windows

A home owner from Charlotte, NC says:
October 16, 2017
Bought a house that all the Balance Springs need replaced and also a few broken Pivot Shoes & Pivot Bars. The vinyl Tilt windows are all 19-20 years old
.
jpg 440568 Pivot Shoe/lock - is 1/2" thick 2 1/8" high and 1 1/16th wide. Is the replacement 15-188?

jpg 507344 Pivot Bar - #9765 marked on 2 1/2" One at 2 1/4 and others at 2 1/2" long. Is the replacement 26-352?

jpg 406262 Balance Spring - all the Balance are 3/8" tub diameter but with different lengths and color. You show 3/8" tilt vinyl window as being the Series 900 which does not have the Black or Orange tips

31" long Orange tip. Window is 32 1/2 wide x 63 1/2 high Replacement would be ________?

37" long Black tip. Window is 32 1/2 wide X 75 3/4" high Replacement would be ________?

37" long Green tip Window 28 1/2 wide x 75 3/4 high Replacement would be__________?

Would love to be able to open the windows Any help would greatly appreciated.

Thanks

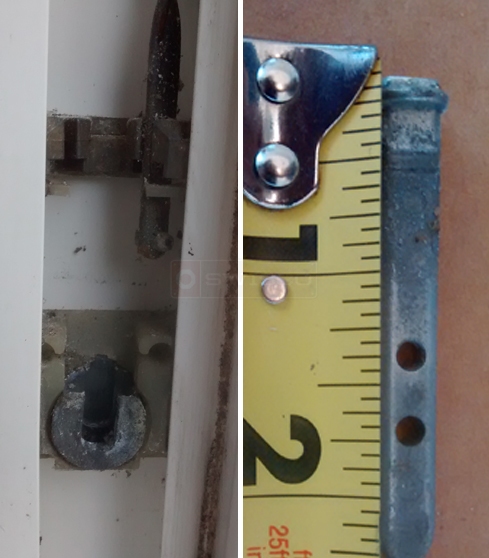

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
October 23, 2017
Thanks for contacting us. As long as your dimensions match our 15-188 and 26-352, I see no reason why they wouldn't work.

Are you sure you have the Series 900 spiral balance? They never made this with a black tip. The only spiral balance made with a black tip option is the 5/8" diameter Series 600 balance. You may want to double check just to be sure.
