Need sash balances for Viking metal windows

Home Owner from Fremont, CA 94539

Aug 20, 2024 11:38 pm

Good morning,

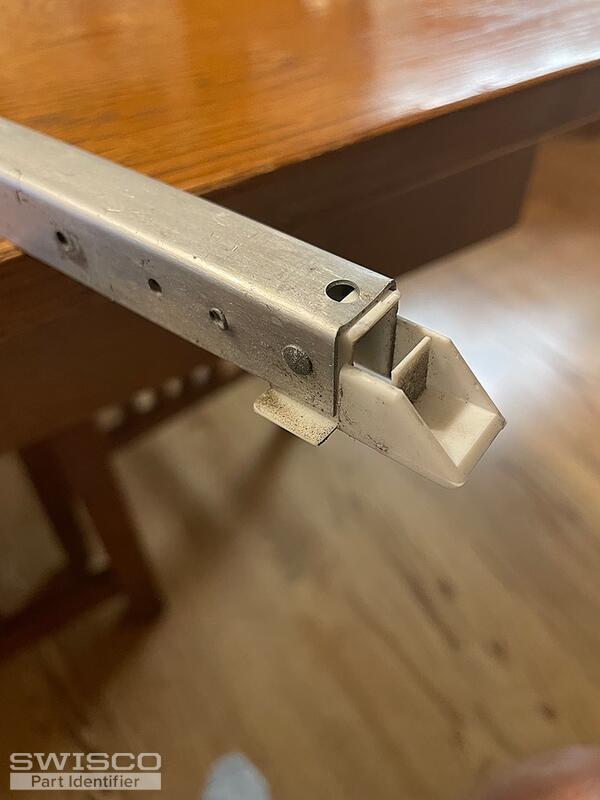

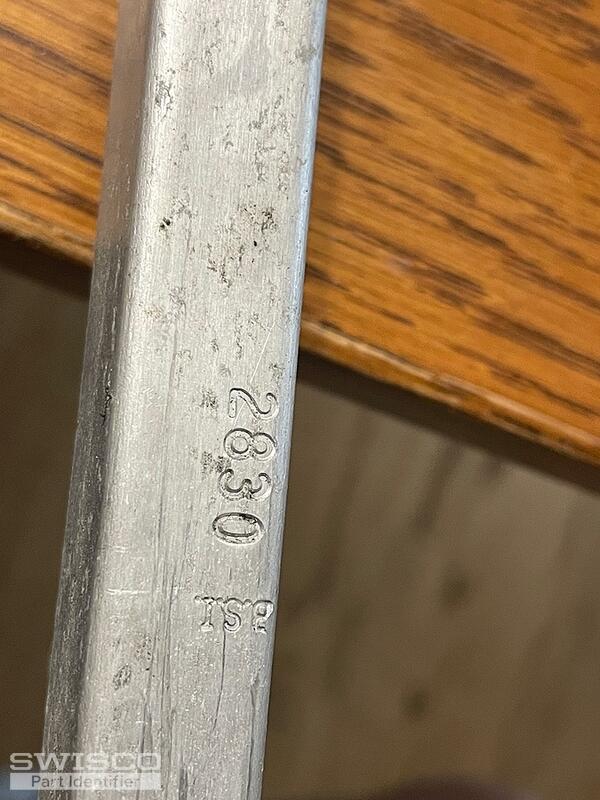

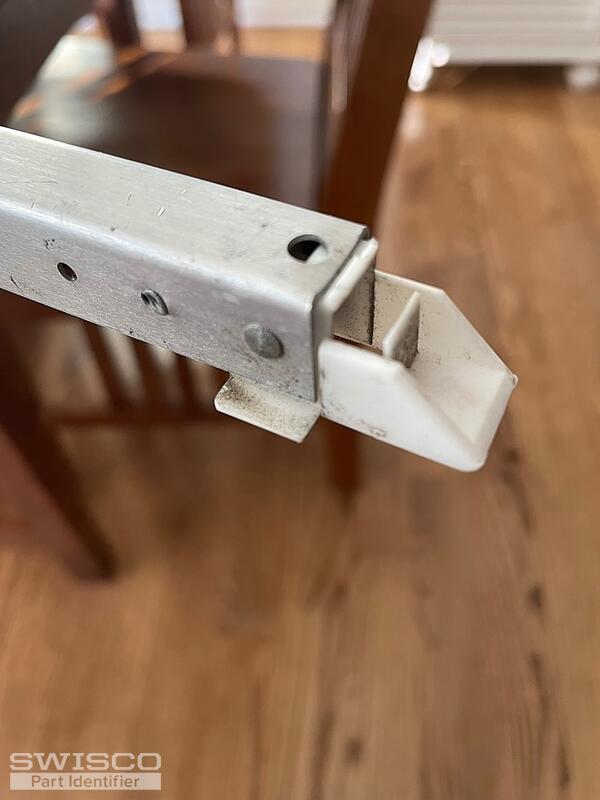

I need four 2830 sash balances for Viking metal windows. Attached are two photos each of each end (four total) plus a photo of the inscription "2830."

Can you help me?

Regards

Pat

5 user uploaded images

12 Replies

Jasmine from SWISCO

Aug 21, 2024 4:30 pm

Hi Pat,

Thanks for posting! Your channel balance can be replaced with the S395-29. Like your balance, this balance is assembled with a winged top and a wingless bottom shoe.

You can select the 2830 stamp option.

Home Owner from Fremont, CA 94539

Aug 21, 2024 7:49 pm

Thank you so much Jasmine!

Home Owner from Fremont, CA 94539

Sep 3, 2024 11:15 am

Good morning Jasmin,

Hey Tak Yu for your help getting me the 2830 sash balances.

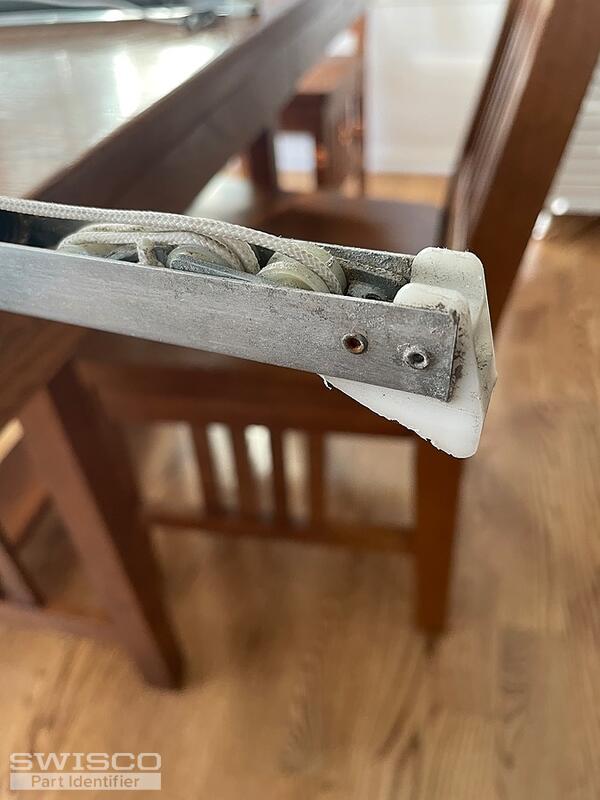

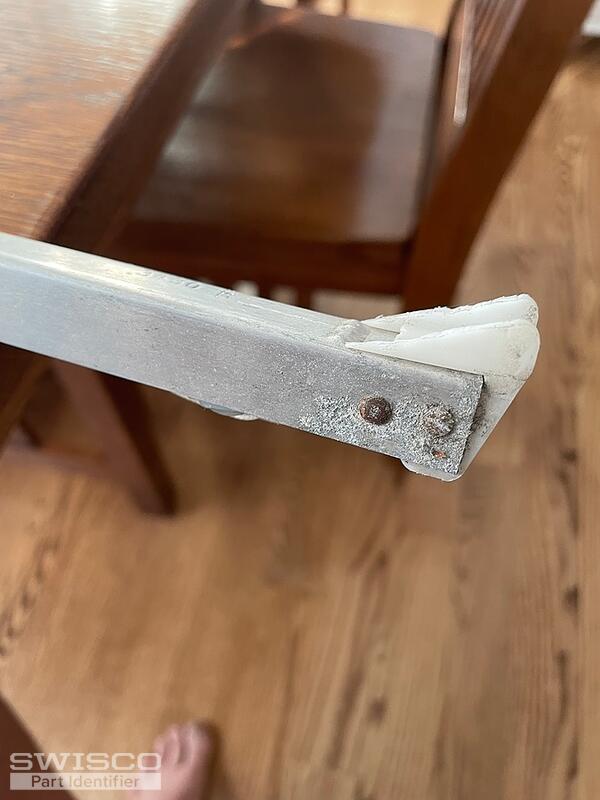

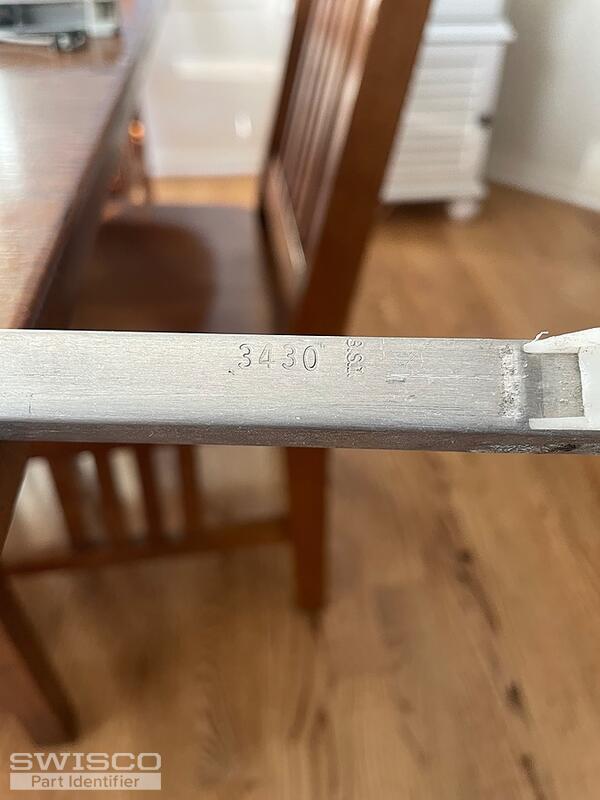

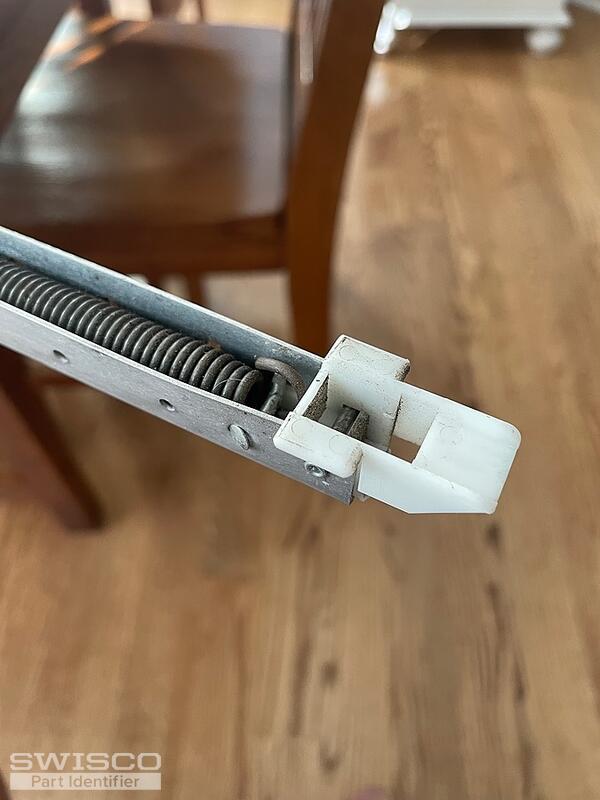

I also need four 3430 sash balances for Viking metal windows. Attached are two photos of each end (four total) plus a photo of the inscription "3430."

Can you help me?

Regards

Pat

5 user uploaded images

Jasmine from SWISCO

Sep 3, 2024 1:16 pm

Hi Pat,

It was my pleasure to assist! These balances appear to have the same configure as the previous balances, just with a longer length. That said, you'll need the S395-35. You can select the 3430 stamp option.

Home Owner from Fremont, CA 94539

Sep 3, 2024 5:27 pm

Thank you, Jasmine. You are the best!

Jasmine from SWISCO

Sep 4, 2024 9:01 am

Happy to help! Please don't hesitate to reach out with any other hardware repair projects you might come across.

Have a great day!

Home Owner from Fremont, CA 94539

Sep 24, 2024 8:37 pm

Hello Jasmine

Thank you for all the advice. You've given me up to this point. I need to order 8 takeout clips for Viking windows. Can you point me in the right direction for ordering those please?

Thanks,

Pat

Home Owner from Fremont, CA 94539

Sep 24, 2024 9:30 pm

One more thing, Jasmine.

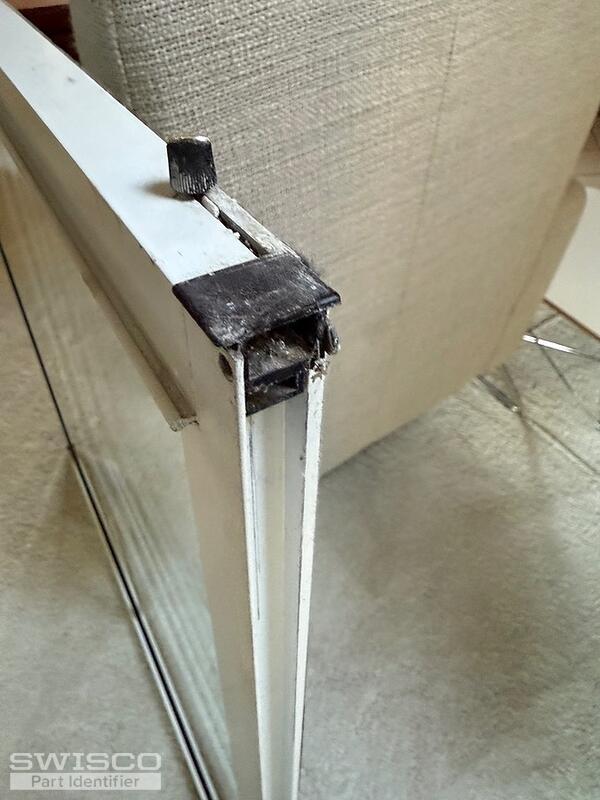

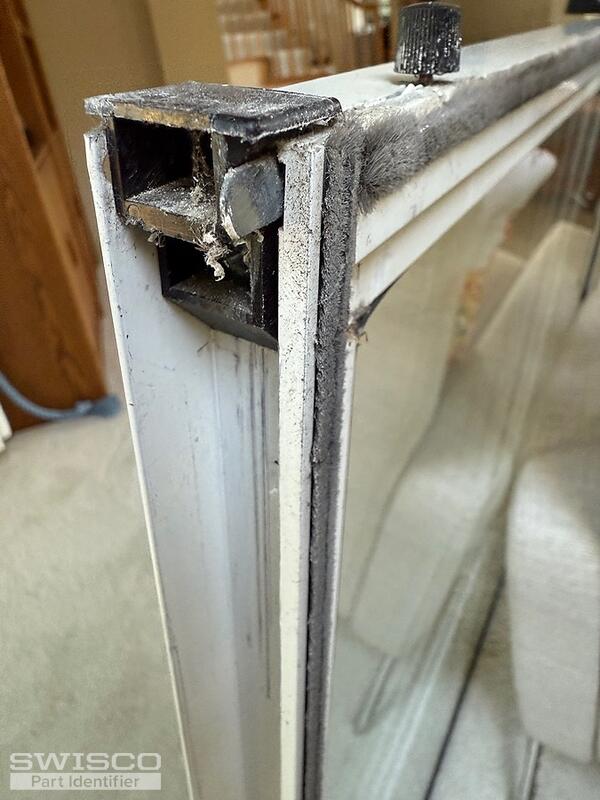

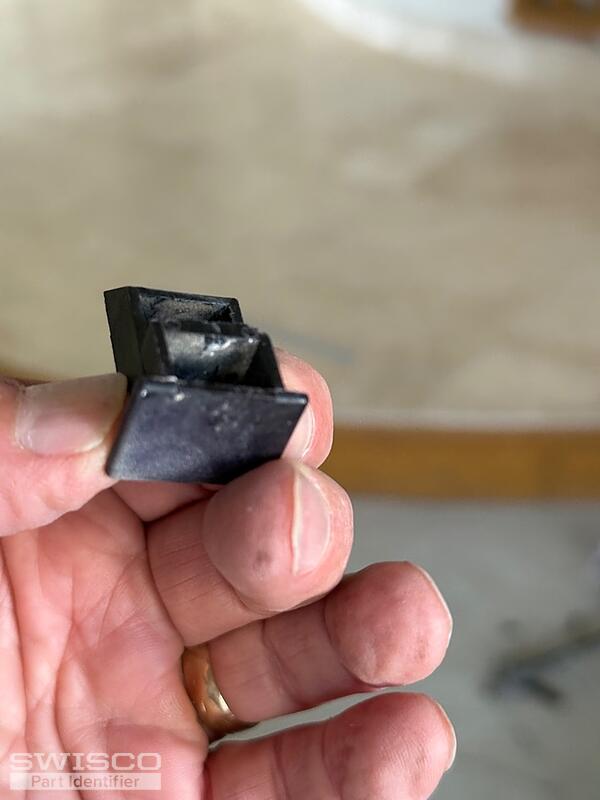

I just discovered that one or more of my black colored balance shoes that fit at the top of the sliding window are broken. I've attached a photo of what an unbroken broken one looks like.

I'm sorry it's dirty. I should have cleaned it off a bit before I put the window back in the wall.

The sash balances I ordered are item number S395-35, option 3430.

And in case you haven't seen my earlier message, I don't need to order the clips anymore. So please disregard the earlier message.

As always, thanks for your expertise help, Jasmine! You have saved me from buying new windows!!!!

Pat

2 user uploaded images

Jasmine from SWISCO

Sep 25, 2024 9:21 am

I'm happy to help! May I see a photo of the take out clips you are searching for. We have a few different options, so the photo will help to narrow them down.

Regarding the top sash guide, I'll need to see a photo of a front profile view. It is important to see the placement of the installation hole(s).

Please let me know if you have any questions.

Home Owner from Fremont, CA 94539

Sep 25, 2024 4:31 pm

Hi Jasmine,

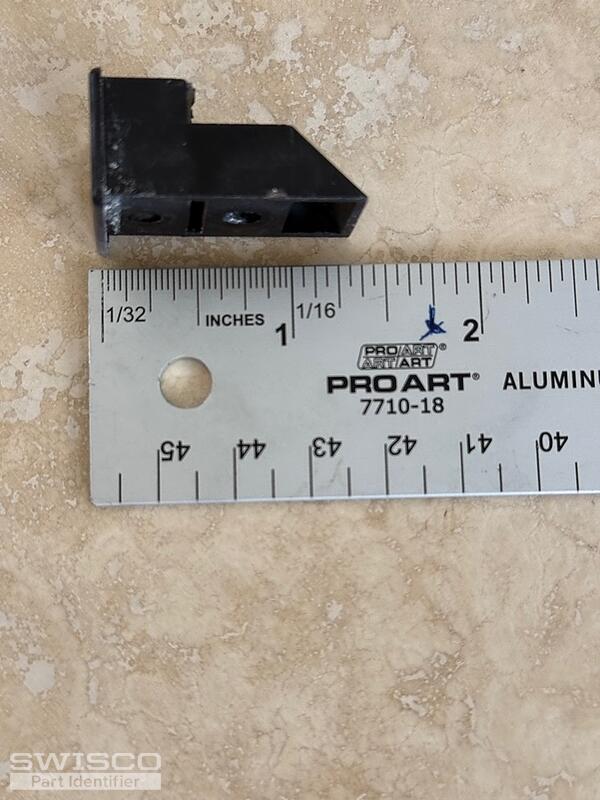

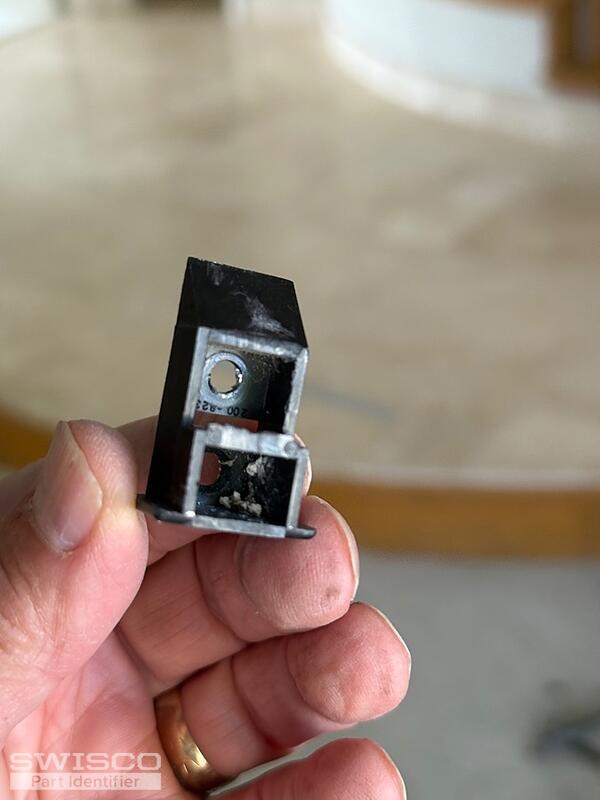

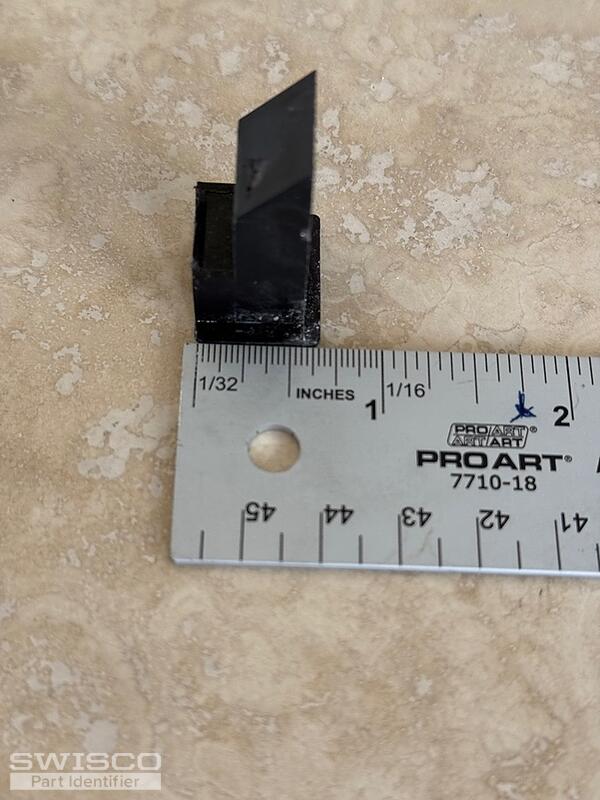

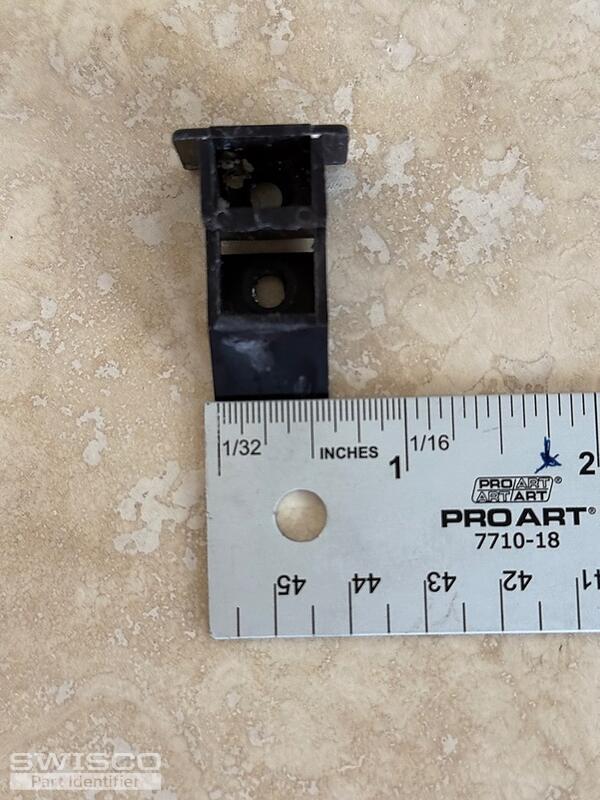

Here are five more photos of the shoe that you requested. I need six of them if you could point me in the right direction I would sure appreciate it.

If you do carry those sash guides or the shoe or whatever it's called for two of them I will definitely need the two screws that go into each of them. And they look like they're very specific to that item. I doubt I could buy them at Home Depot. Thank you, Jasmine.

Pat

5 user uploaded images

Jasmine from SWISCO

Sep 26, 2024 9:29 am

Hi Pat,

This top sash guide reminds me of the 18-009. To determine if this is the right replacement, be sure to carefully look over the dimensions below.

Detail of 18-009

Side view of 18-009

On the website, we suggest holding onto the existing screw for installation. So, your best bet would be taking the screw to a local hardware store to have them match them up for you.

That being said, I am happy to try to provide you with a replacement screw for the one you have but I'll need to know its dimensions. I cannot make any guarantees that we can provide you with an exact replacement but I'll do my best.
