Need several windows part

Hello,

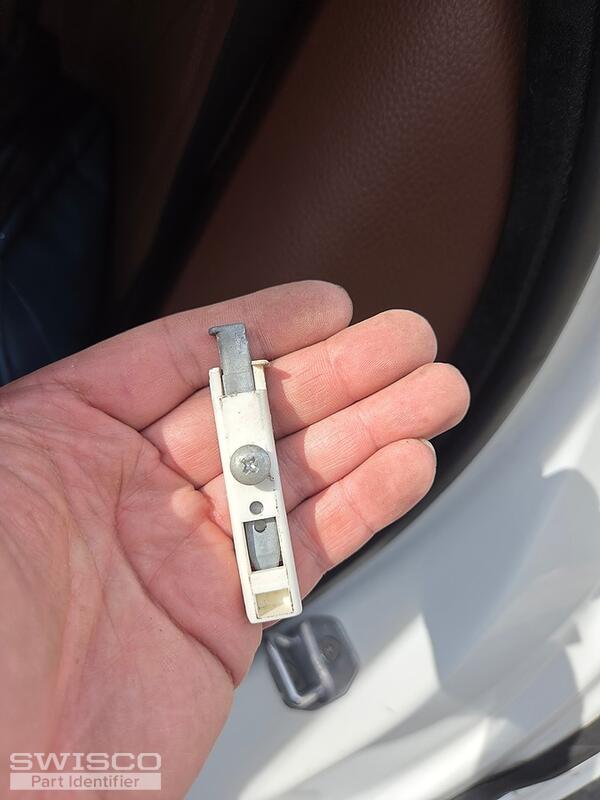

Thanks for reaching out! The 26-244A is not an exact match for your latch but I do believe this will work for the repair. Its opposite version is the 26-243A.

The case reminds me of the 26-382S Pivot Bar Case. It appears to use the 26-021 Pivot Bar installed in it.

To determine if these are the correct replacements, carefully look over their dimensions on the website and compare them.

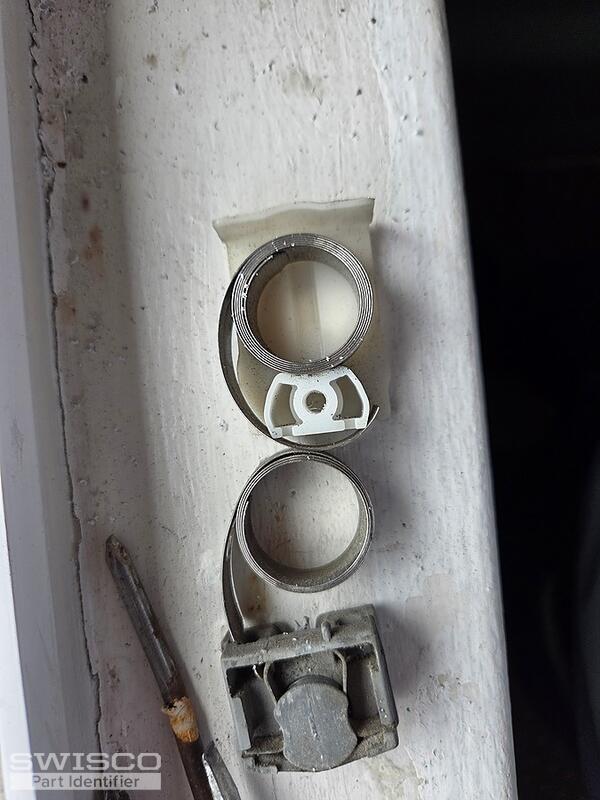

I'm confident we can recommend a replacement for the coil balance assemblies. Although, to determine a replacement match, I'll need to see a clear photo of the balance shoe. You'll also need to remove the coils and examine them for a stamp/marking. This will tell you the coil weight option needed for the replacements.

Please let me know if you have any questions.

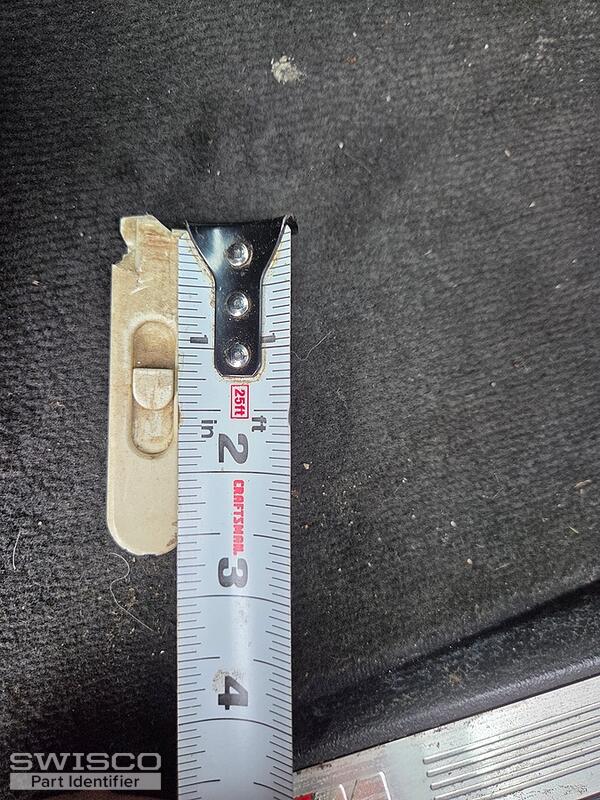

Thanks for the additional photos. The length of your latches looks like it could be closer to 2-3/8". That said, I suggest taking a look at the 26-393A and 26-393B. They each have the same dimensions but their designs are different. Be sure to take a over each of them to determine the best replacement.

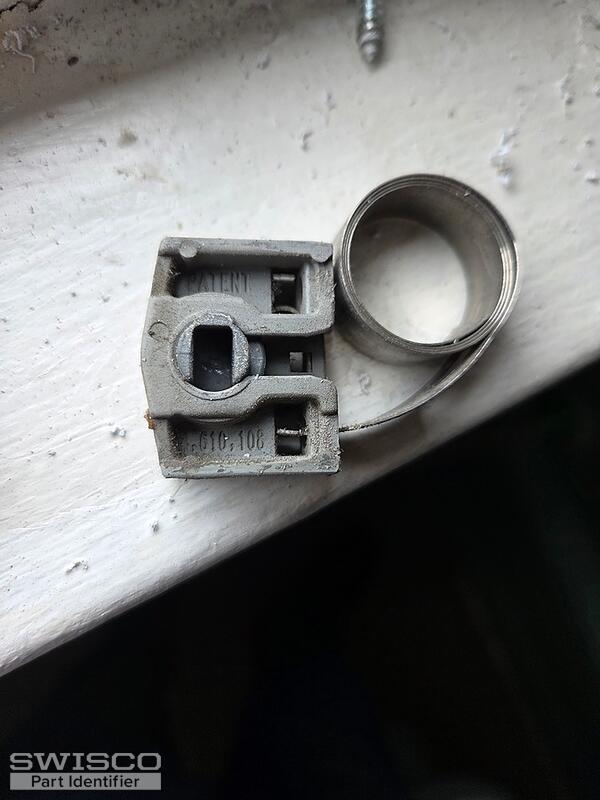

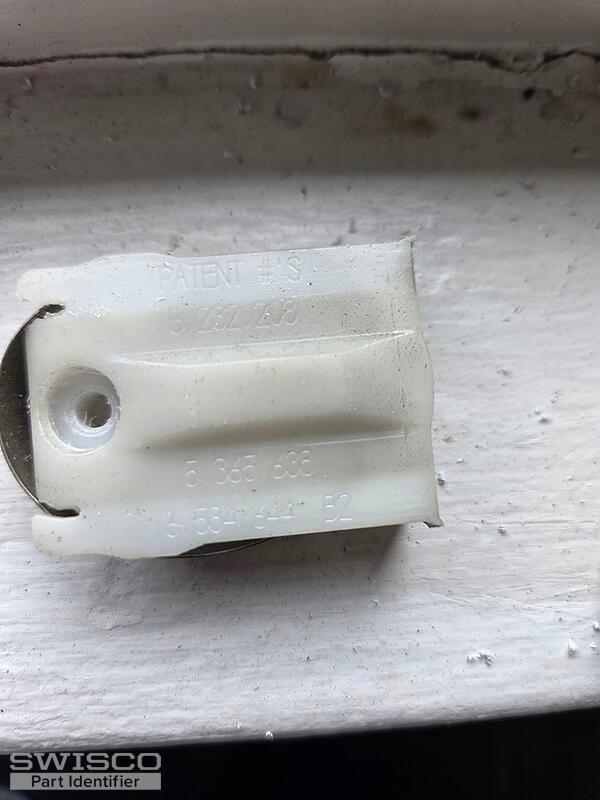

You coil balance shoe reminds me of the 15-191 Heavy Duty Pivot Shoe. It uses the 1/2" Series 160 Coil Balance. The compatible support is the 15-150S Coil Single Support.

To determine the correct coil weight option, you'll need to look for a stamp/marking on the spring. There is a tutorial below with instructions on how to select the correct option. We show a different assembly but the process is still the same.
