Please help me make sure I have the right part.
I think it's a
Encore Dual Arm Operator, Sill Mount, Low Profile,

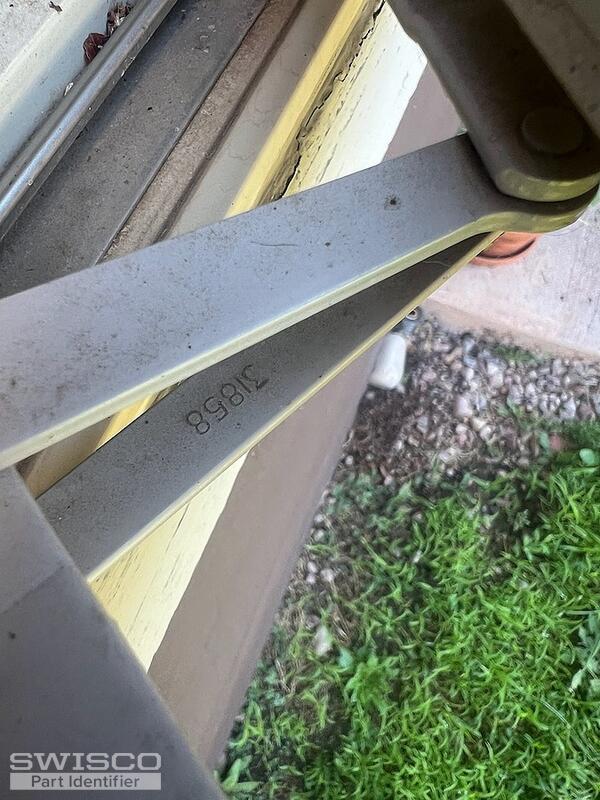

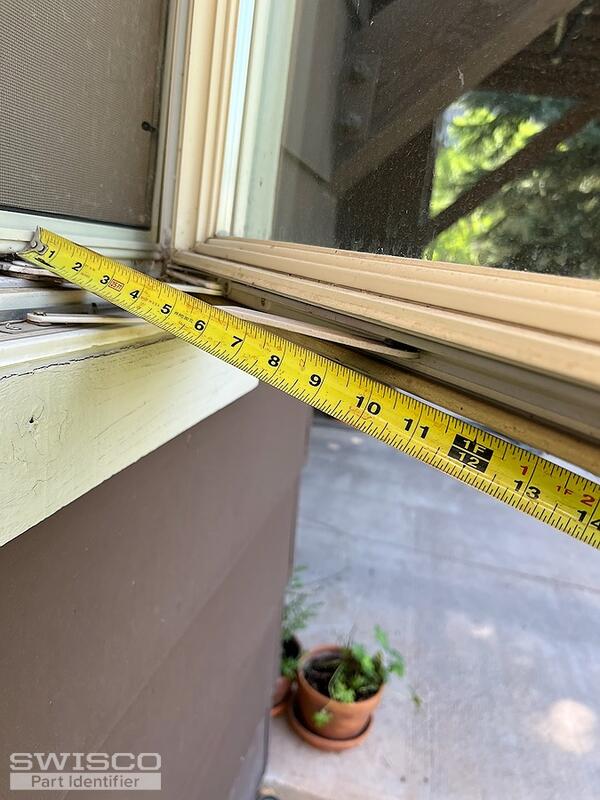

but not sure. The long arm measures about 10 3/8". Limiter has part no: 31858
The black slide piece looks to be square, not rectangular... but it's hard to tell.
Thanks,
Steve
Hi Steve,
The window operators you have are the 39-253LB and 39-253RB Encore Dual Arm Operators. The low profile operators use different attachments and tracks.
The piece at the end of the link arm of your operator is the 39-529 Truth Hardware Track Slider, which slides in the 39-528 14-1/2" Casement Track.
The compatible cover and handle kits can be found tagged below.
